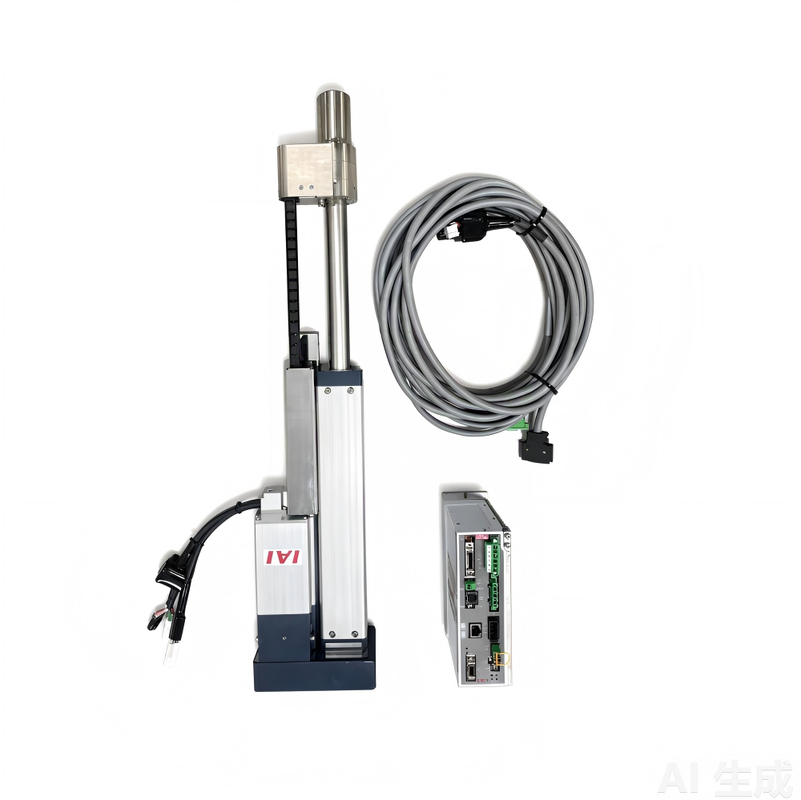

IAI RCS3-RA13R-WA-750 Servo Press Actuator 2000-9800 N 750W

Product Overview

IAI RCS3-RA13R-WA-750 is a high-force servo press actuator delivering a controlled thrust range of 2,000 to 9,800 N. The model uses a 750 W AC servo motor, built-in load cell and WA battery-less absolute encoder for industrial pressing applications requiring force and position repeatability.

Stroke options of 50 mm, 125 mm and 200 mm are available. The shorter stroke configurations are suitable for compact pressing stations, while the 200 mm option provides additional approach travel.

Main Features

• 2,000-9,800 N thrust range
• 750 W AC servo motor
• Built-in pressing-force load cell
• WA battery-less absolute encoder
• Maximum speed of 100 mm/s
• Position repeatability of +/-0.01 mm
• Load repeatability of +/-0.5% F.S.
• 50 mm, 125 mm and 200 mm strokes

Technical Specifications

Applications

RCS3-RA13R-WA-750 is suitable for larger bearing insertion, metal-component clinching, automotive assembly, heavy riveting, structural press-fitting and production processes requiring approximately one-ton-class pressing force.

Related IAI RCS3 Models

Related models include RCS3-RA10R-WA-200 for forces up to 6,000 N and RCS3-RA15R-WA-3300 for heavy-duty pressing up to 30,000 N.

Maintenance and Replacement Notes

Verify the selected stroke, mounting structure, required peak force, duty cycle and controller output capacity. The actuator, controller, cables and safety arrangement should be treated as a matched system.

Inquiry and Supply Notes

Please provide the required pressing tonnage, stroke, cycle rate and machine installation drawings for configuration review.
