IAI RCS3-RA7R-WA-100 Servo Press Actuator 200-1200 N 100W

Product Overview

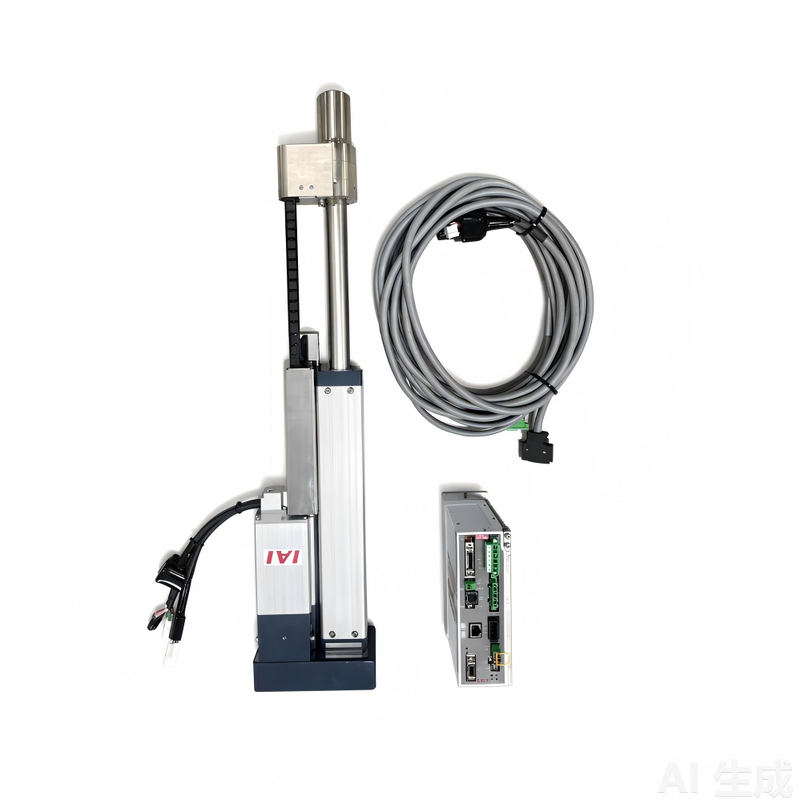

IAI RCS3-RA7R-WA-100 is a servo press electric actuator covering a pressing-force range of 200 to 1,200 N. It combines a 100 W AC servo motor, rod-type mechanical structure and integrated load cell for controlled press-fitting and assembly operations.

Stroke configurations of 120 mm, 320 mm and 520 mm are available. The extended 520 mm option makes this model relevant for machines requiring a longer transfer or approach movement before the pressing stage.

Main Features

• 200-1,200 N pressing-force range
• 100 W AC servo motor
• Built-in load-cell feedback
• WA battery-less absolute encoder
• Maximum speed of 100 mm/s
• Position repeatability of +/-0.01 mm
• Load repeatability of +/-0.5% F.S.
• Stroke options up to 520 mm

Technical Specifications

Applications

Suitable applications include bearing insertion, pin pressing, connector assembly, light metal forming, component staking, precision riveting and automated force-displacement inspection.

Related IAI RCS3 Models

Related models include RCS3-RA6R-WA-60 for lower-force processes, RCS3-RA8R-WA-100 for forces up to 2,000 N and RCS3-RA10R-WA-200 for medium-duty pressing up to 6,000 N.

Maintenance and Replacement Notes

Verify the required stroke and pressing-force profile before selecting this actuator. The complete system must also be checked for compatible controller capacity, cable length, mounting orientation and machine safety requirements.

Inquiry and Supply Notes

Please provide the required stroke, maximum pressing force, approach speed, pressing speed and process cycle information.
