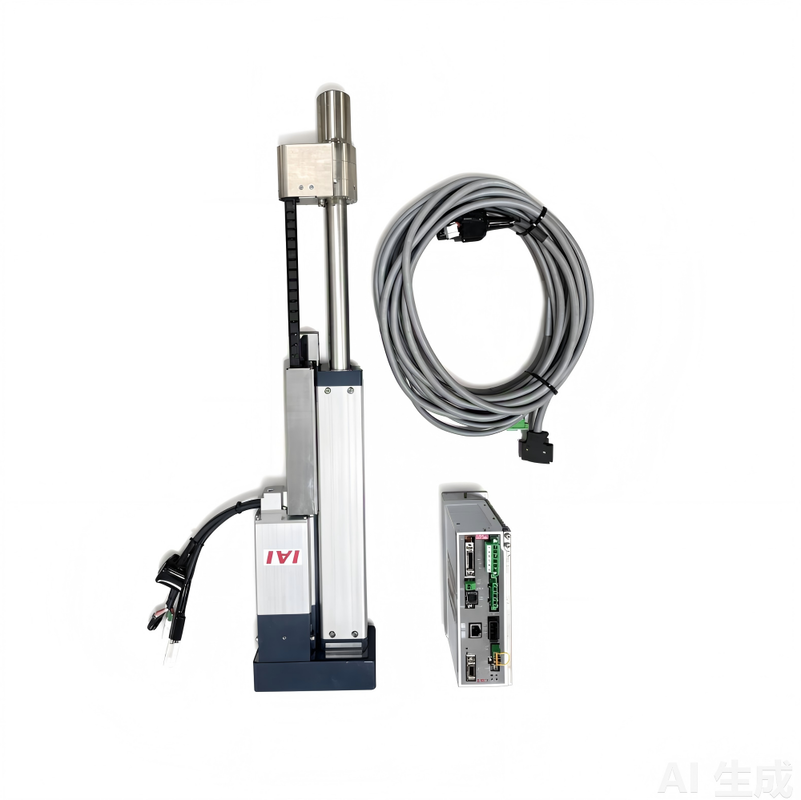

IAI RCS3-RA8R-WA-100 Servo Press Actuator 200-2000 N 100W

Product Overview

IAI RCS3-RA8R-WA-100 is a medium-force servo press actuator designed for automated pressing operations requiring 200 to 2,000 N of controlled thrust. It uses a 100 W AC servo motor and built-in load cell to support repeatable force and position monitoring during assembly.

The model is available with 100 mm, 300 mm and 500 mm strokes and reaches a maximum speed of 125 mm/s. This combination makes the RCS3-RA8R-WA-100 a practical general-purpose choice within the RCS3 range.

Main Features

• 200-2,000 N controlled thrust range
• 100 W servo motor
• Built-in load cell
• WA battery-less absolute encoder
• Maximum speed of 125 mm/s
• Position repeatability of +/-0.01 mm
• Load repeatability of +/-0.5% F.S.
• 100 mm, 300 mm and 500 mm stroke options

Technical Specifications

Applications

Common uses include bearing and bushing insertion, automotive connector assembly, terminal crimping, precision staking, small metal-part pressing, electronics manufacturing and assembly-line quality control.

Related IAI RCS3 Models

Related models include RCS3-RA7R-WA-100 for applications below 1,200 N and RCS3-RA10R-WA-200 for higher-force pressing up to 6,000 N.

Maintenance and Replacement Notes

Confirm whether the installed machine uses the 100 mm, 300 mm or 500 mm stroke version. Also verify the mounting dimensions, actuator orientation, controller capacity and cable specification before ordering.

Inquiry and Supply Notes

Please provide the required force profile, selected stroke and workpiece information for technical confirmation.
