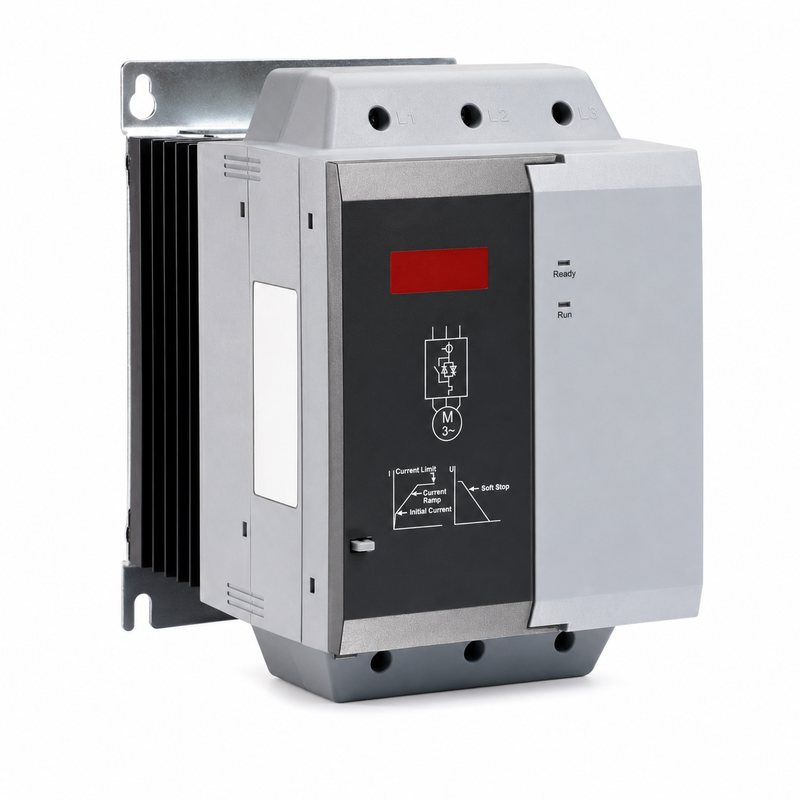

Danfoss MCD202015T4CV3 175G5210 MCD 202 Soft Starter 34A 15kW
| Place of Origin | Denmark |
| Brand Name | Danfoss |
| Model Number | MCD202015T4CV3 |
Product Overview
MCD202015T4CV3, order number 175G5210, is a compact MCD 202 soft starter for smooth acceleration and stopping of three-phase fixed-speed motors. This version is rated at 34 A and corresponds to approximately 15 kW at 400 V. It operates with a 200-440 VAC mains supply and a 110-240 VAC control supply.
Main Features
- Smooth motor acceleration without abrupt direct-on-line starting torque
- Rated operational current of 34 A
- Reference motor power of 15 kW at 400 V
- 200-440 VAC three-phase mains supply
- 110-240 VAC control voltage
- Motor-protection functions within the MCD 202 platform
Technical Specifications
| Model | MCD202015T4CV3 |
| Order Number | 175G5210 |
| Series | MCD 202 |
| Product Type | Compact Soft Starter |
| Rated Current | 34 A |
| Power Reference | 15 kW at 400 V |
| Mains Voltage | 200-440 VAC |
| Control Supply | 110-240 VAC |
Compatible System and Applications
This configuration is suitable for conveyors, packaging lines, material-handling systems, pumps, fans and other equipment using three-phase fixed-speed motors. Controlled starting can reduce belt slip, coupling shock and electrical disturbance during acceleration.
Maintenance and Replacement Notes
Check the motor nameplate, required starting duty, number of starts per hour and enclosure ventilation before confirming compatibility. Verify MCD202015T4CV3 and order number 175G5210 against the installed label. Do not select a replacement solely according to the 15 kW reference.
Related Models
MCD202007T4CV3, MCD202022T4CV3, MCD202030T4CV3 and MCD202037T4CV3.
Inquiry and Supply Notes
Please provide the existing product nameplate, motor current, supply voltage, application details and quantity. Availability, condition, price and lead time must be checked at the quotation stage.
