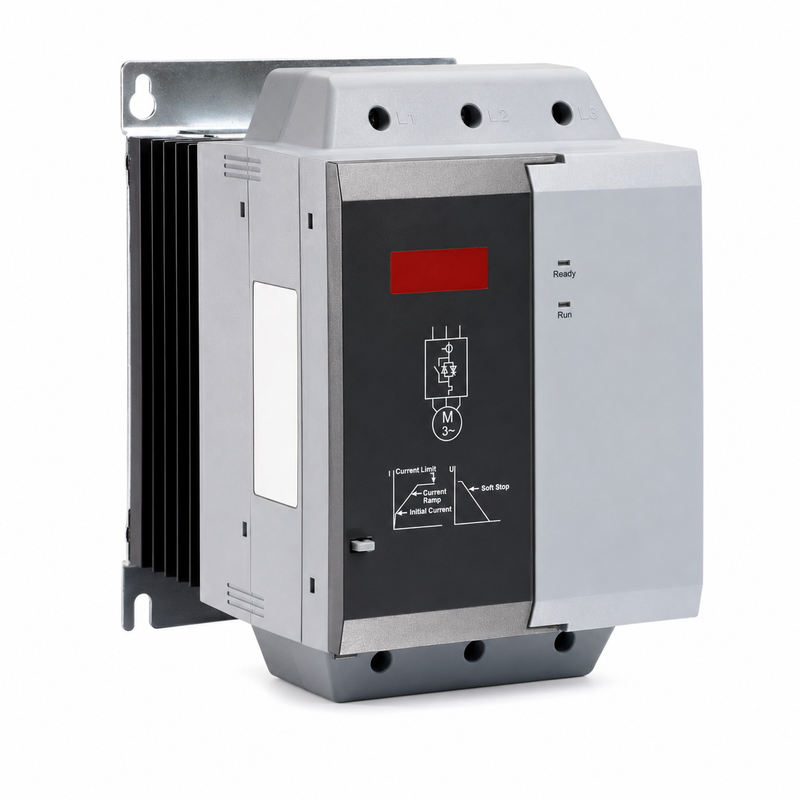

Danfoss MCD202030T4CV3 175G5213 MCD 202 Soft Starter 60A 30kW
| Place of Origin | Denmark |
| Brand Name | Danfoss |
| Model Number | MCD202030T4CV3 |
Product Overview
MCD202030T4CV3, order number 175G5213, is an MCD 202 soft starter rated at 60 A and approximately 30 kW at 400 V. It is designed for fixed-speed motor applications where controlled acceleration can reduce inrush current, electrical disturbance and shock loading within the mechanical transmission.
Main Features
- Rated operational current of 60 A
- Reference motor power of 30 kW at 400 V
- 200-440 VAC three-phase mains supply
- 110-240 VAC control supply
- Controlled acceleration and deceleration profiles
- Integrated MCD 202 motor-protection functionality
Technical Specifications
| Model | MCD202030T4CV3 |
| Order Number | 175G5213 |
| Series | MCD 202 |
| Product Type | Compact Soft Starter |
| Rated Current | 60 A |
| Power Reference | 30 kW at 400 V |
| Mains Voltage | 200-440 VAC |
| Control Supply | 110-240 VAC |
Compatible System and Applications
This model is suitable for compressors, refrigeration auxiliaries, process-air systems, pumps, conveyors and other fixed-speed machinery. Limiting initial current and torque can reduce stress on electrical distribution equipment and mechanical components.
Maintenance and Replacement Notes
Do not select this model only by its 30 kW reference. Motor current, starting duty, ambient temperature, acceleration time and driven-load profile are the decisive sizing factors. Confirm model MCD202030T4CV3, order number 175G5213 and the complete terminal arrangement.
Related Models
MCD202022T4CV3, MCD202037T4CV3, MCD202055T4CV3 and MCD202075T4CV3.
Inquiry and Supply Notes
Please provide the starter nameplate, motor full-load current, supply voltage, application details and quantity. Product condition, price, lead time and replacement suitability require confirmation.
