Danfoss MCD202055T4CV3 175G5216 MCD 202 Soft Starter 100A 55kW

Product Overview

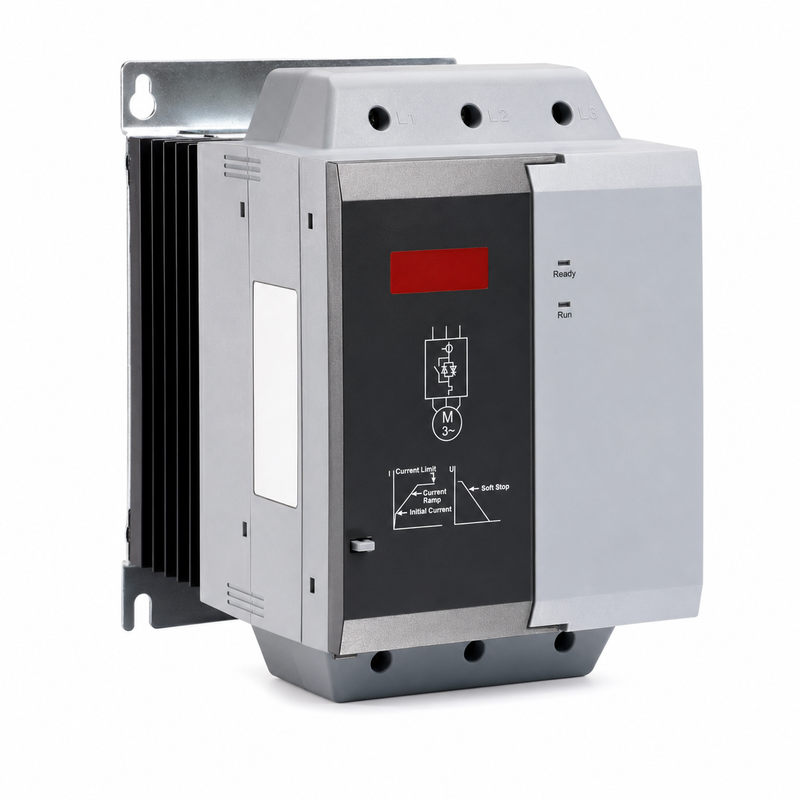

MCD202055T4CV3, order number 175G5216, is a Danfoss MCD 202 compact soft starter rated at 100 A and approximately 55 kW at 400 V. It provides controlled acceleration and stopping for three-phase fixed-speed motors where direct-on-line starting could produce excessive current, torque shock or mechanical wear.

Main Features

• Rated operational current of 100 A
• Reference motor power of 55 kW at 400 V
• 200-440 VAC three-phase mains supply
• 110-240 VAC control supply
• Controlled motor starting and stopping
• Motor-protection functions within the MCD 202 platform
• Suitable for industrial control-panel and retrofit applications

Technical Specifications

Compatible System and Applications

This configuration can be considered for industrial pumps, conveyors, mixers, compressors, fans and factory utility equipment. Controlled acceleration can reduce stress on couplings, belts, gearboxes and electrical distribution systems. Final sizing depends on motor full-load current, load torque, starting duration, starting frequency and ambient conditions.

Maintenance and Replacement Notes

Confirm model MCD202055T4CV3 and order number 175G5216 against the installed nameplate. Check the motor current, mains voltage, control voltage, wiring method and starting duty before replacement. A different MCD 202 voltage or control-supply variant is not automatically interchangeable.

Related Models

MCD202037T4CV3, MCD202075T4CV3, MCD202090T4CV3 and MCD202110T4CV3.

Inquiry and Supply Notes

Please provide the full starter nameplate, motor specifications, application type and required quantity. Price, availability, condition, lead time and technical compatibility must be confirmed before ordering.
