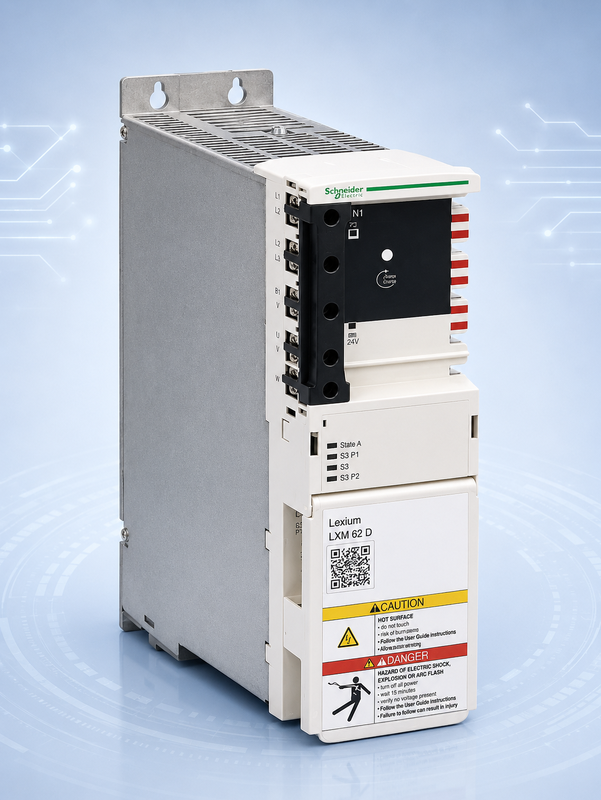

Schneider Electric LXM62DU60E21000 Lexium 62 0.95kW Single-Axis Servo Drive
| Place of Origin | Germany |
| Brand Name | Schneider Electric |
| Model Number | LXM62DU60E21000 |
Product Overview
The Schneider Electric LXM62DU60E21000 is a Lexium 62 single-axis servo drive with an embedded safety feature level. It is rated for 2 A continuous current, 6 A peak current and approximately 0.95 kW continuous output. The module operates from the Lexium 62 common DC bus, uses a 24 VDC control supply and communicates with the motion controller through Sercos III.
Main Features
- Exact commercial reference: LXM62DU60E21000
- Single-axis servo drive module
- Embedded safety variant
- 2 A continuous current and 6 A peak current
- Approximately 0.95 kW continuous output
- 250–700 VDC common DC bus range
- 24 VDC control voltage
- Sercos III real-time communication
- Hiperface and SinCos encoder compatibility
- IP20 cabinet installation
Technical Specifications
| Model | LXM62DU60E21000 |
| Series | Lexium 62 |
| Module Type | Single-Axis Servo Drive |
| Axes | 1 |
| Variant | E |
| Safety Feature | Embedded Safety |
| Continuous Current | 2 A per axis |
| Peak Current | 6 A per axis |
| Continuous Output | Approximately 0.95 kW per axis |
| DC Bus Voltage | 250–700 VDC |
| Control Voltage | 24 VDC |
| Motion Network | Sercos III |
| Encoder Interface | Hiperface / SinCos |
| Protection Rating | IP20 |
| Approximate Net Weight | 3 kg |
Compatible System and Applications
The LXM62DU60E21000 is intended for Lexium 62 systems requiring one controlled servo axis and an embedded safety configuration. Potential applications include packaging, assembly, material handling, labeling, printing and synchronized automation machinery. The installed safety project, motion controller, Sercos III configuration, motor and encoder system must be checked before replacement.
Maintenance and Replacement Notes
Do not substitute this E variant with a standard C variant solely because the current and power ratings are the same. Confirm the complete model, commercial reference, nameplate, embedded safety configuration, firmware, hardware revision and controller project. Verify the communication network, cable set, motor matching, brake option, encoder type and shaft configuration before ordering.
Related Models
LXM62DU60C21000, LXM62DU60D21000, LXM62DU60F21000, LXM62DU60G21000, LXM62DD15E21000 and other Lexium 62 embedded-safety servo drives.
Inquiry and Supply Notes
Provide the exact commercial reference, original nameplate photographs and information about the installed safety and controller configuration. Hardware revision, firmware, availability, condition and delivery time should be verified before quotation.
