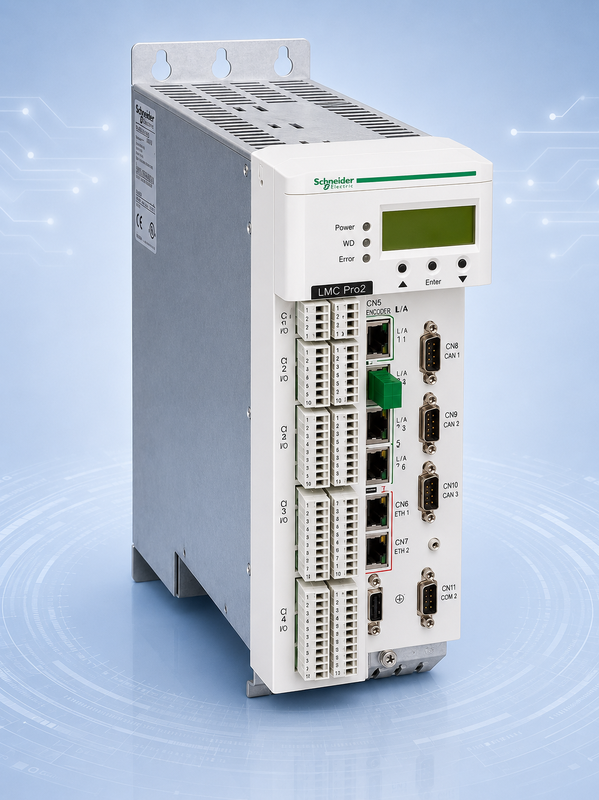

Schneider Electric LMC300CCA10000 PacDrive 3 LMC300 8-Axis Motion Controller with Integrated UPS
| Place of Origin | USA |
| Brand Name | Schneider PacDrive LMC Motion Controllers |
| Model Number | LMC300CCA10000 |
Product Overview
The Schneider Electric LMC300CCA10000 is a PacDrive 3 LMC300 motion controller equipped with an integrated uninterruptible power supply function. It supports up to 8 synchronized Sercos servo axes and combines PLC logic, motion control, communication and integrated I/O in one cabinet-mounted controller.
The integrated UPS distinguishes this model from the basic LMC300CAA10000. The UPS configuration is intended to support controlled data retention or system shutdown during a loss of the main 24 VDC supply. The installed energy-storage component, UPS condition and hardware revision must be verified before replacement.
Main Features
- Exact commercial reference: LMC300CCA10000
- PacDrive 3 LMC300 motion controller
- Integrated UPS configuration
- No additional CAN, Profibus DP or RT-Ethernet option module in the basic CCA version
- Maximum control capacity of 8 Sercos servo axes
- Intel Celeron M 1.5 GHz processor
- 512 MB DDR2 RAM and 128 kB NVRAM
- CompactFlash card support
- 24 VDC rated supply
- Integrated Sercos, Ethernet, CANopen, USB and serial communication
- Integrated digital and analog I/O
- IP20 cabinet-mounted construction
Technical Specifications
| Model | LMC300CCA10000 |
| Series | PacDrive 3 LMC Pro |
| Controller Designation | LMC300 |
| Variant Group | UPS |
| Integrated UPS | Yes |
| Additional Communication Option | None in the basic CCA configuration |
| Maximum Controlled Sercos Axes | 8 |
| Processor | Intel Celeron M 1.5 GHz |
| RAM | 512 MB DDR2 |
| NVRAM | 128 kB |
| Memory Card | CompactFlash card, at least 128 MB |
| Rated Supply | 24 VDC |
| Power Consumption | Approximately 36 W |
| Digital Inputs | 20 digital inputs, 4 interrupt inputs and 16 touch-probe inputs |
| Analog Inputs | 2 inputs, ±10 V or ±20 mA, 12-bit |
| Digital Outputs | 16 outputs, maximum 250 mA each |
| Analog Outputs | 2 voltage outputs, 12-bit |
| Motion Network | 2 Sercos RJ45 interfaces |
| Integrated Communication | Ethernet, CANopen, USB, RS232 and RS422/RS485 |
| Additional Interfaces | Master encoder and PacNet |
| Programming Languages | ST, FBD, CFC, LD, IL and SFC |
| Real-Time Operating System | VxWorks with SEAutomation Kernel |
| Protection Rating | IP20 |
| Operating Temperature | 5–55 °C |
| Dimensions | Approximately 100 * 310 * 243 mm |
| Approximate Net Weight | 3.5 kg |
Compatible System and Applications
The LMC300CCA10000 is intended for PacDrive 3 machines requiring up to 8 synchronized servo axes and an integrated UPS function. Typical applications include packaging systems, robotic handling equipment, printing machinery, production lines and machines where controller data retention or a controlled shutdown is important during a power interruption.
The UPS function does not replace the need for a correctly designed machine power system. Verify the UPS energy-storage component, supply arrangement, machine shutdown sequence and controller-project configuration.
Maintenance and Replacement Notes
Before replacement, confirm the complete LMC300CCA10000 reference, integrated UPS configuration, UPS energy-storage condition, hardware revision and firmware. Back up the CompactFlash card and machine project. Verify the 24 VDC power system, UPS wiring, shutdown sequence, Sercos project, Ethernet and CANopen settings and local I/O wiring.
The basic non-UPS LMC300CAA10000 is not an automatic direct replacement. Also verify connected servo drives, motor matching, brake option, encoder type, shaft configuration, communication modules and cable set.
Related Models
Other integrated-UPS variants include LMC300CCB10000 with CAN, LMC300CCC10000 with Profibus DP, LMC300CCD10000 with one RT-Ethernet module, LMC300CCG10000 with two RT-Ethernet modules, LMC300CCI10000 with CAN and RT-Ethernet, and LMC300CCL10000 with Profibus DP and RT-Ethernet. LMC300CAA10000 is the corresponding basic non-UPS version.
Inquiry and Supply Notes
Please provide the complete commercial reference, clear nameplate photographs, firmware details and information about the installed UPS components. Confirm whether the CompactFlash card, UPS energy-storage component and connector set are required. UPS condition, hardware revision, included components, availability and delivery time must be confirmed before quotation.
