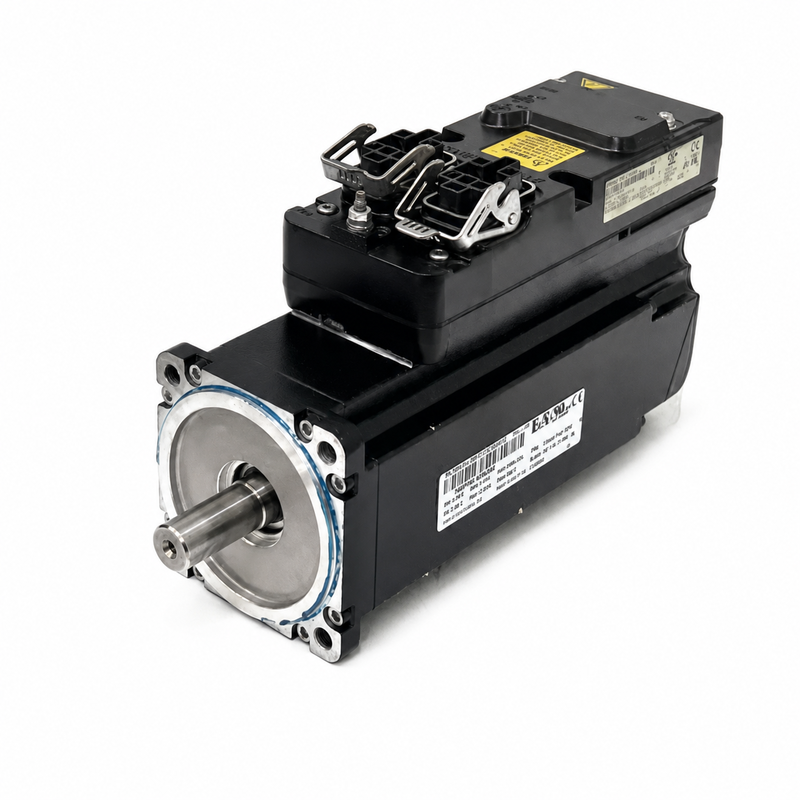

B&R 8LVA13.R0030D200-0 Servo Motor 101W 3000RPM Resolver with Brake
| Place of Origin | Germany |
| Brand Name | B&R |
| Model Number | 8LVA13.R0030D200-0 |
Product Overview
The B&R 8LVA13.R0030D200-0 is a compact size 1 synchronous servo motor combining R0 resolver feedback with an integrated holding brake. It provides approximately 101 W nominal power, a nominal speed of 3000 rpm and a stall torque of 0.36 Nm.
The 0.35 Nm holding brake is intended to retain a stationary load when motor power is removed. This configuration is suitable for small vertical axes and compact positioning mechanisms using a resolver-compatible drive.
Main Features
- Compact size 1 synchronous servo motor
- Nominal power of approximately 101 W
- Nominal speed of 3000 rpm
- Stall torque of 0.36 Nm
- Maximum torque up to 1 Nm
- R0 resolver feedback
- Integrated 0.35 Nm holding brake
- Smooth shaft without oil seal
- Self-cooled motor construction
Technical Specifications
| Brand | B&R |
| Complete Model | 8LVA13.R0030D200-0 |
| Series | 8LVA |
| Motor Size | Size 1, Length 3 |
| Nominal Power | Approximately 101 W |
| Nominal Speed | 3000 rpm |
| Maximum Speed | 6600 rpm |
| Nominal Torque | Approximately 0.32 Nm |
| Stall Torque | Approximately 0.36 Nm |
| Maximum Torque | Approximately 1 Nm |
| Feedback System | R0 Resolver |
| Holding Brake | Yes |
| Brake Holding Torque | 0.35 Nm |
| Shaft Configuration | Smooth Shaft, Without Oil Seal |
| Cooling | Self-Cooling |
Compatible System and Applications
Typical applications include small vertical positioning units, electronic assembly systems, laboratory machines, inspection equipment and compact handling axes. The selected drive must support both resolver feedback and brake control.
Maintenance and Replacement Notes
The holding brake must not be used as a normal dynamic operating brake. Verify the resolver interface, brake rating, shaft, connector direction, motor revision and Automation Studio device configuration before replacement.
Related Models
Related models include 8LVA13.R0030D000-0 without a brake and 8LVA13.B1030D200-0 with B1 EnDat feedback. These variants require different feedback interfaces.
Inquiry and Supply Notes
Please provide the original motor nameplate, drive model and brake application details. Confirm condition, motor revision and regional availability before quotation.
