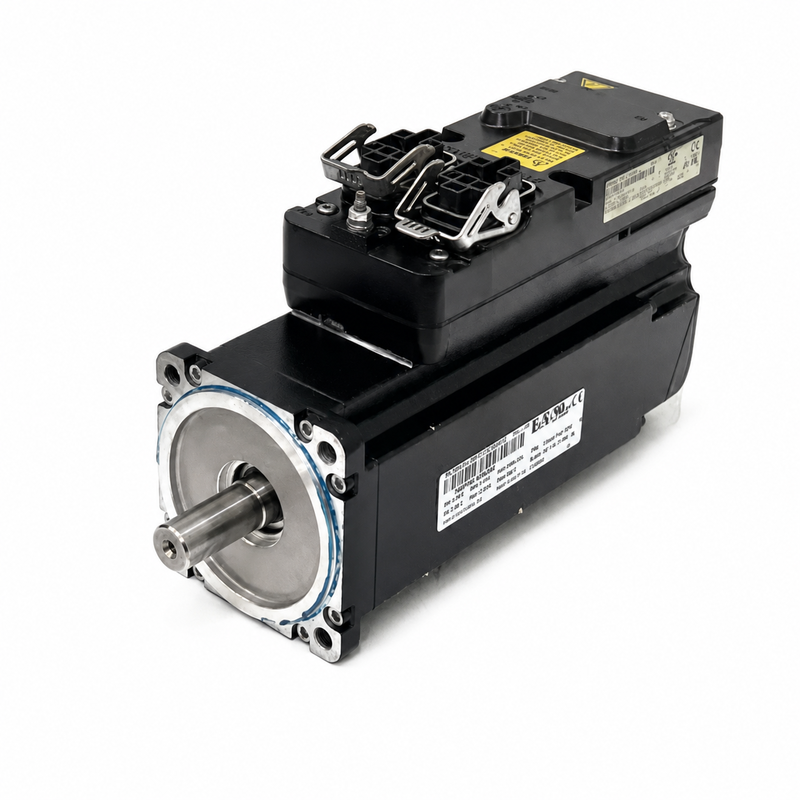

B&R 8LVA22.R0030D800-0 Servo Motor 3000RPM Resolver Brake Oil Seal

Product Overview

The B&R 8LVA22.R0030D800-0 is a compact 204 W synchronous servo motor with R0 resolver feedback, a smooth shaft, an oil seal and an integrated holding brake. It has a nominal speed of 3000 rpm and a stall torque of approximately 0.68 Nm.

The D8 option configuration identifies a swivelling angled connector, smooth shaft, oil seal and holding brake. This combination is suitable for vertical or load-holding axes where additional shaft sealing is required.

Main Features

• Nominal output power of approximately 204 W
• Nominal speed of 3000 rpm
• Nominal torque of approximately 0.65 Nm
• Stall torque of approximately 0.68 Nm
• Maximum torque up to 2 Nm
• R0 resolver feedback
• Smooth shaft with oil seal
• Integrated 2.2 Nm holding brake
• Self-cooled compact construction

Technical Specifications

Compatible System and Applications

Typical applications include compact lifting units, vertical positioning axes, packaging machinery and automation systems exposed to oil mist or contaminants near the motor shaft. The oil seal does not eliminate the need to follow the specified environmental and protection limits.

Maintenance and Replacement Notes

Verify the resolver, holding brake, smooth shaft, oil seal, connector direction, motor revision and compatible drive. The holding brake is intended for stationary load retention and not continuous dynamic braking.

Related Models

Related 8LVA22 models may omit the oil seal or brake, use a keyed shaft or use an EnDat encoder. These configuration differences affect installation and compatibility.

Inquiry and Supply Notes

Please provide the complete nameplate, shaft-area photograph and installed drive information. Confirm condition, revision and regional availability before quotation.
