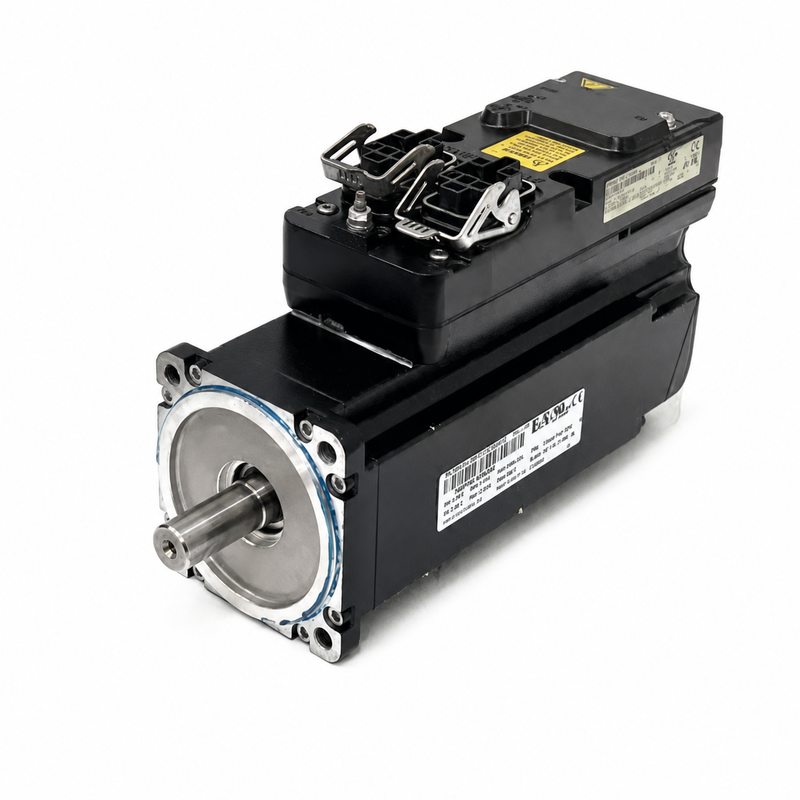

B&R 8LSA44.R2030D100-3 Servo Motor 1.45kW 3000RPM R2 Resolver

Product Overview

The B&R 8LSA44.R2030D100-3 is a self-cooled synchronous servo motor designed for high-dynamic industrial motion control. It provides 1451 W nominal power, 4.62 Nm nominal torque and 6 Nm stall torque at a nominal speed of 3000 rpm.

This configuration uses an R2 two-pole resolver, a keyed shaft and an angled swivelling SpeedTec connector. It does not include a holding brake.

Main Features

• Nominal power of 1451 W
• Nominal speed of 3000 rpm
• Nominal torque of 4.62 Nm
• Stall torque of 6 Nm
• Maximum torque up to 22.8 Nm
• R2 two-pole resolver feedback
• Keyed shaft without oil seal
• Without integrated holding brake
• Self-cooled 400 VAC motor construction
• Angled swivelling SpeedTec connector

Technical Specifications

Compatible System and Applications

Typical applications include packaging machinery, printing equipment, material handling, indexing systems and coordinated industrial servo axes. Drive sizing must consider required torque, acceleration, duty cycle and resolver compatibility.

Maintenance and Replacement Notes

Verify the complete model, motor version, R2 resolver, keyed shaft, absence of a brake, connector system and compatible ACOPOS drive. Motors with R0, EnDat or different shaft configurations are not automatically interchangeable.

Related Models

Related models include other 8LSA44 motors with different feedback, brake and shaft options. Confirm every character in the complete order code before selecting a replacement.

Inquiry and Supply Notes

Please provide the original nameplate, drive model and motor cable information. Confirm condition, motor revision and regional availability before quotation.
