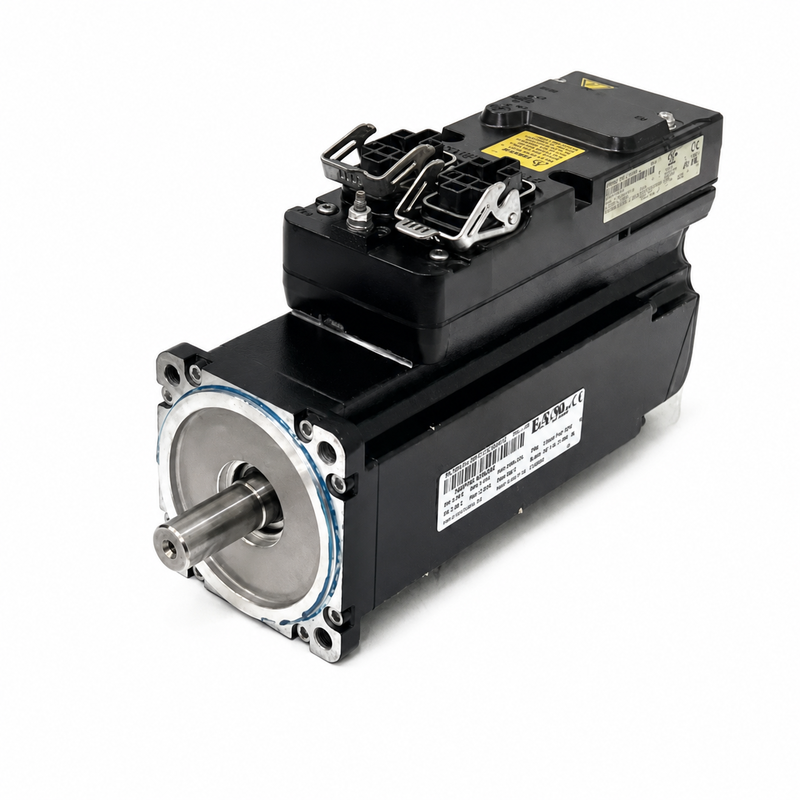

B&R 8LSA44.R2030D000-3 Servo Motor 1.45kW 3000RPM R2 Resolver

Product Overview

The B&R 8LSA44.R2030D000-3 is a self-cooled synchronous servo motor providing 1451 W nominal power, 4.62 Nm nominal torque and 6 Nm stall torque at 3000 rpm. It uses an R2 two-pole resolver and a smooth output shaft.

This configuration is designed for dynamic positioning, speed and torque control in packaging, printing, assembly and material-handling machinery. It does not include a holding brake.

Main Features

• Nominal power of 1451 W
• Nominal speed of 3000 rpm
• Nominal torque of 4.62 Nm
• Stall torque of 6 Nm
• Maximum torque up to 22.8 Nm
• R2 two-pole resolver feedback
• Smooth shaft without oil seal
• Without holding brake
• Angled swivelling SpeedTec connector

Technical Specifications

Compatible System and Applications

Typical applications include packaging machinery, printing presses, indexing equipment, conveyor systems and coordinated motion axes. Confirm resolver support and drive sizing using the required torque-speed curve.

Maintenance and Replacement Notes

Verify the complete model, R2 resolver, smooth shaft, absence of a brake, connector system, motor revision and cable set. The keyed-shaft 8LSA44.R2030D100-3 is mechanically different.

Related Models

Related models include 8LSA44.R2030D100-3 and 8LSA44.DB030S100-3. Encoder, connection and shaft differences must be checked before substitution.

Inquiry and Supply Notes

Please provide the original nameplate, drive model and cable information. Confirm condition, revision and regional availability before quotation.
