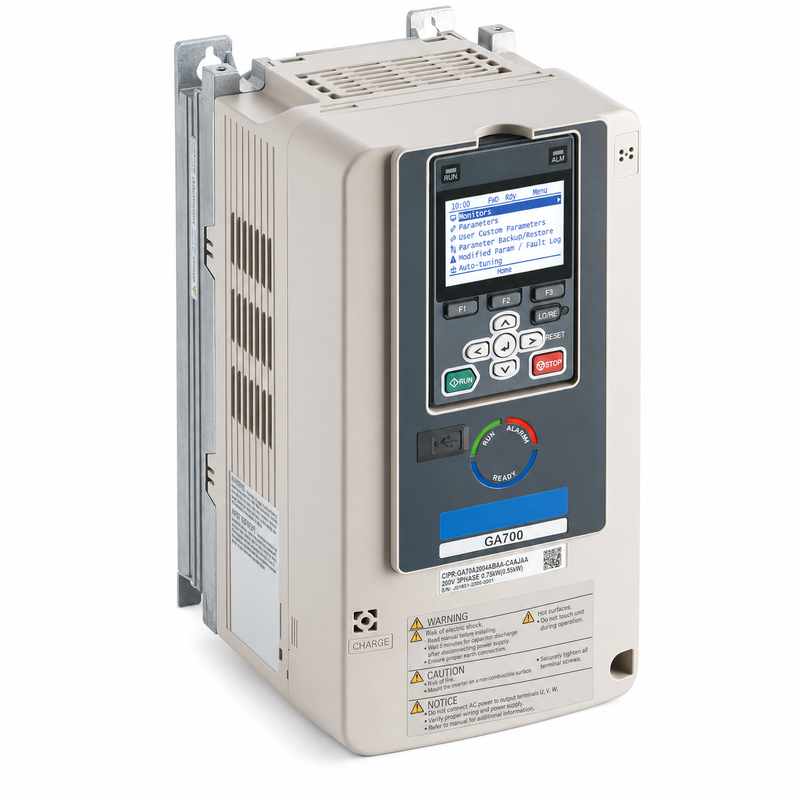

Yaskawa CIPR-GA70B4007ABBA-AAAAAA GA700 Vector VFD 400V 3kW 7.1A

Product Overview

The Yaskawa CIPR-GA70B4007ABBA-AAAAAA is a GA700 series industrial variable frequency drive designed for precise speed and torque control of three-phase AC motors. This 400 V class drive provides a rated capacity of 3 kW and 7.1 A under Normal Duty operation, or 2.2 kW and 5.5 A under Heavy Duty operation. The B configuration is intended for the corresponding regional market and should be matched by complete order code when replacing an existing drive.

Main Features

• Advanced V/f and vector control for demanding industrial motor applications.
• Supports induction motors, permanent-magnet motors and compatible synchronous motor technologies.
• Normal Duty rating with 110% overload capability for variable-torque machinery.
• Heavy Duty rating with 150% overload capability for higher starting torque requirements.
• Dual-channel Safe Torque Off function for integration into machine safety circuits.
• Removable LCD operator keypad supports parameter setup, monitoring and parameter copying.
• Expansion capability for compatible communication, feedback and application option cards.

Technical Specifications

Compatible System and Applications

This drive is suitable for pumps, fans, conveyors, packaging equipment, material-handling systems and compact production machinery. The selected motor rating, load characteristics, acceleration time and required starting torque should be checked before commissioning.

Maintenance and Replacement Notes

Before replacement, verify the complete model suffix, input voltage, output current, control wiring and installed option cards. Existing parameters should be backed up whenever possible. This frame generally supports dynamic braking through internal brake-switching hardware, but the braking resistor and exact hardware configuration must be confirmed from the drive nameplate and technical manual.

Related Models

Related B-version models include CIPR-GA70B4012ABBA-AAAAAA, CIPR-GA70B4018ABBA-AAAAAA and CIPR-GA70B4023ABBA-AAAAAA.

Inquiry and Supply Notes

Please provide the complete nameplate model, motor power, application load and required option configuration when requesting a quotation or technical compatibility check.
