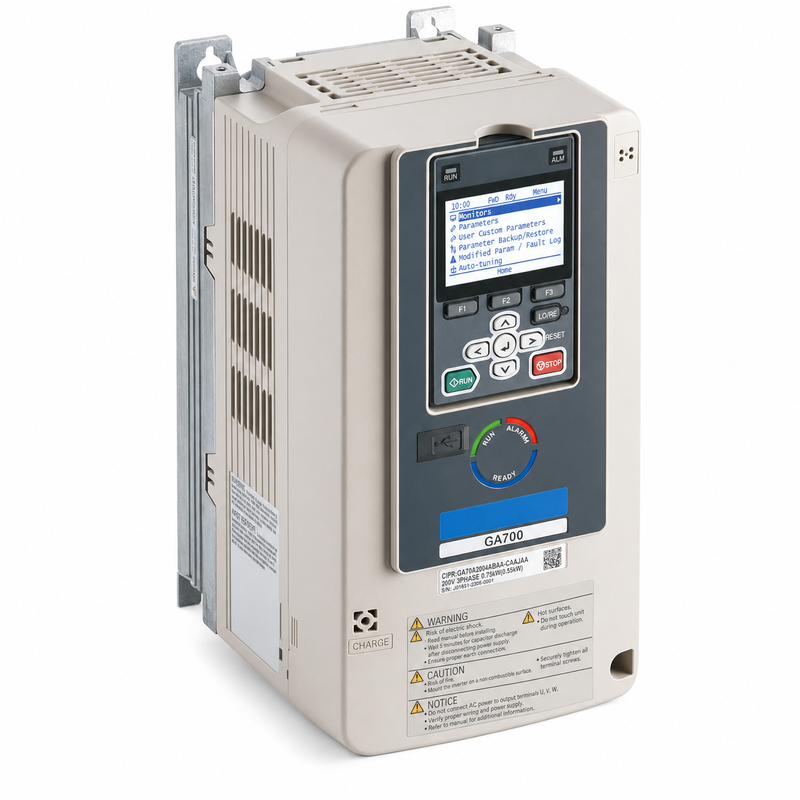

Yaskawa CIPR-GA70B4012ABBA-AAAAAA GA700 Vector VFD 400V 5.5kW 11.9A
| Place of Origin | USA |
| Brand Name | YASKAWA |
| Model Number | CIPR-GA70B4012ABBA-AAAAAA |
Product Overview
The Yaskawa CIPR-GA70B4012ABBA-AAAAAA is a 400 V class GA700 vector control drive for industrial motor-speed and torque-control applications. It is rated at 5.5 kW and 11.9 A for Normal Duty loads, with a Heavy Duty rating of 4 kW and 9.2 A. Its dual-rating design enables engineers to select the drive according to the real overload characteristics of the machine rather than motor power alone.
Main Features
- High-performance motor control for both variable-torque and constant-torque machinery.
- V/f, open-loop vector and compatible closed-loop vector control configurations.
- Supports induction, permanent-magnet and compatible synchronous motors.
- 110% Normal Duty and 150% Heavy Duty overload capability.
- Dual-channel Safe Torque Off terminals for machine safety integration.
- Removable LCD keypad for commissioning, diagnostics and parameter backup.
- Supports compatible communication, encoder-feedback and application option cards.
Technical Specifications
| Complete Model | CIPR-GA70B4012ABBA-AAAAAA |
| Series | Yaskawa GA700 |
| Input Power | Three-phase 380-480 VAC |
| Normal Duty Rating | 5.5 kW, 11.9 A |
| Heavy Duty Rating | 4 kW, 9.2 A |
| Overload Capacity | 110% ND / 150% HD |
| Enclosure | IP20 |
| EMC Filter | No internal EMC filter, A configuration |
Compatible System and Applications
Typical applications include conveyors, mixers, pumps, fans, packaging machines, machine tools and automated material-handling equipment. For constant-torque applications, the Heavy Duty current rating should be used as the primary selection criterion.
Maintenance and Replacement Notes
Confirm the complete order code instead of matching only the GA70B4012 capacity code. Check the motor nameplate current, braking requirements, feedback device, communication network and control-terminal assignment. Back up the original parameters before removing the existing drive. External EMC filtering may be required depending on the installation standard.
Related Models
Related models include CIPR-GA70B4007ABBA-AAAAAA, CIPR-GA70B4018ABBA-AAAAAA and CIPR-GA70B4023ABBA-AAAAAA.
Inquiry and Supply Notes
Provide clear photographs of the original nameplate and information about the motor, load type and installed option cards to improve replacement accuracy.
