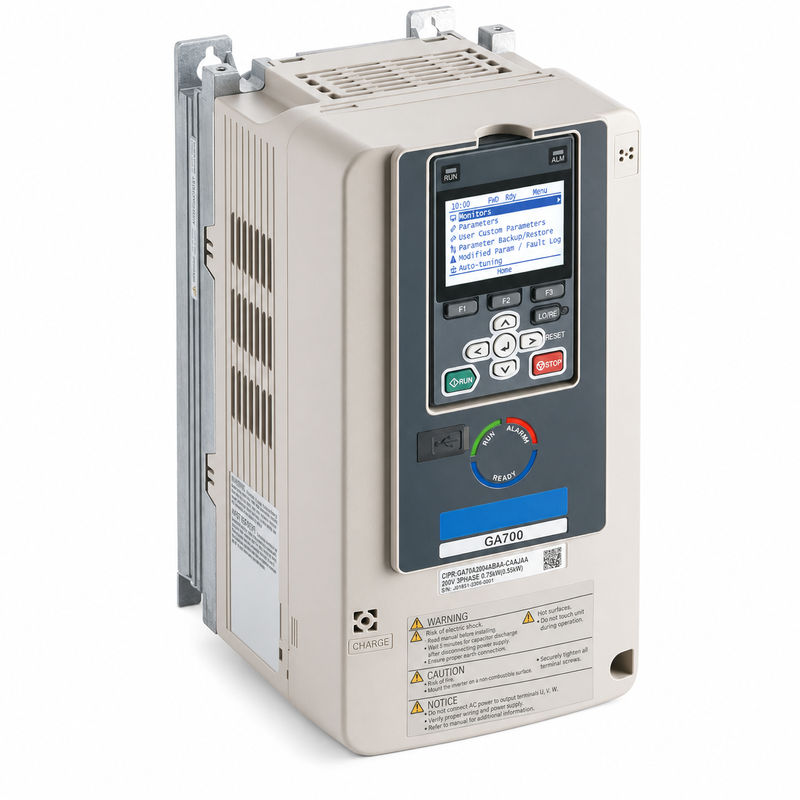

Yaskawa CIPR-GA70B4018ABBA-AAAAAA GA700 Vector VFD 400V 7.5kW 17.5A
| Place of Origin | USA |
| Brand Name | YASKAWA |
| Model Number | CIPR-GA70B4018ABBA-AAAAAA |
Product Overview
The Yaskawa CIPR-GA70B4018ABBA-AAAAAA is a GA700 series high-performance vector drive rated for three-phase 380-480 VAC power systems. It delivers 7.5 kW and 17.5 A in Normal Duty operation or 5.5 kW and 14.8 A in Heavy Duty operation. The drive combines precise motor control, flexible system integration and service-oriented parameter management for industrial automation equipment.
Main Features
- Normal Duty and Heavy Duty ratings for application-specific drive selection.
- Advanced vector control improves low-speed torque and speed regulation.
- Compatible with induction motors and supported permanent-magnet motor types.
- 110% overload capacity under Normal Duty and 150% under Heavy Duty.
- Dual-channel Safe Torque Off supports safety-related machine stopping functions.
- LCD keypad provides parameter configuration, status monitoring and fault diagnostics.
- Multiple option-card positions support communication and feedback expansion.
Technical Specifications
| Complete Model | CIPR-GA70B4018ABBA-AAAAAA |
| Series | Yaskawa GA700 |
| Input Power | Three-phase 380-480 VAC |
| Normal Duty Rating | 7.5 kW, 17.5 A |
| Heavy Duty Rating | 5.5 kW, 14.8 A |
| Overload Capacity | 110% ND / 150% HD |
| Enclosure | IP20 |
| EMC Filter | No internal EMC filter, A configuration |
Compatible System and Applications
The drive can be applied to pumps, fans, conveyors, compressors, mixers, process machinery, packaging lines and material-handling systems. Correct sizing must consider continuous motor current, starting torque, acceleration frequency, ambient conditions and enclosure ventilation.
Maintenance and Replacement Notes
When replacing an existing GA700 drive, compare the entire CIPR order code, not only the 4018 rating designation. Confirm control-voltage requirements, terminal assignments, option cards, encoder interfaces and communication protocol. Save the existing parameter set before replacement. Dynamic-braking resistor selection should be based on braking torque, duty cycle and resistor thermal capacity.
Related Models
Related capacity options include CIPR-GA70B4012ABBA-AAAAAA, CIPR-GA70B4023ABBA-AAAAAA and CIPR-GA70B4031ABBA-AAAAAA.
Inquiry and Supply Notes
Please submit the original drive model, motor data, application description and required accessories when requesting a quotation or technical evaluation.
