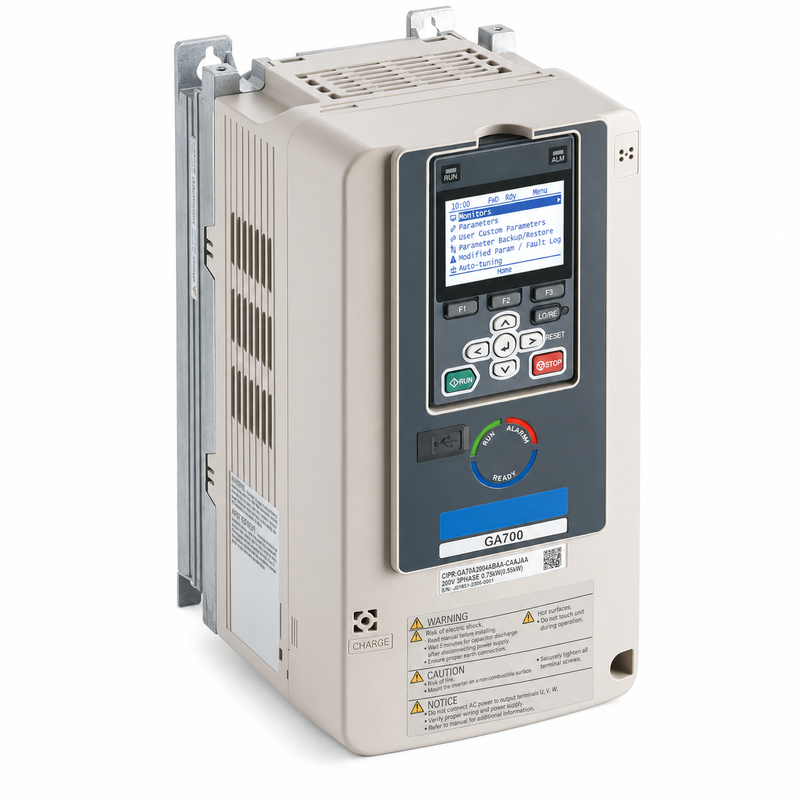

Yaskawa CIPR-GA70B4023ABBA-AAAAAA GA700 Vector VFD 400V 11kW 23.4A
| Place of Origin | USA |
| Brand Name | YASKAWA |
| Model Number | CIPR-GA70B4023ABBA-AAAAAA |
Product Overview
The Yaskawa CIPR-GA70B4023ABBA-AAAAAA is a GA700 industrial variable frequency drive for 400 V class motor-control systems. It provides an 11 kW, 23.4 A Normal Duty rating and a 7.5 kW, 18 A Heavy Duty rating. The drive is designed for applications requiring reliable speed regulation, controlled acceleration, high starting torque and flexible automation-network integration.
Main Features
- Dual Normal Duty and Heavy Duty ratings for accurate load-based selection.
- V/f and advanced vector control for a wide range of industrial motors.
- Suitable for induction motors and supported permanent-magnet motor systems.
- Provides 110% Normal Duty or 150% Heavy Duty overload capability.
- Dual-channel Safe Torque Off interface assists machine safety design.
- Detachable LCD operator enables parameter copying and maintenance diagnostics.
- Expandable architecture supports compatible network and feedback option cards.
Technical Specifications
| Complete Model | CIPR-GA70B4023ABBA-AAAAAA |
| Series | Yaskawa GA700 |
| Input Power | Three-phase 380-480 VAC |
| Normal Duty Rating | 11 kW, 23.4 A |
| Heavy Duty Rating | 7.5 kW, 18 A |
| Overload Capacity | 110% ND / 150% HD |
| Enclosure | IP20 |
| EMC Filter | No internal EMC filter, A configuration |
Compatible System and Applications
Common applications include industrial conveyors, lifting auxiliaries, mixers, pumps, fans, compressors, production machinery and automated process equipment. Heavy Duty selection is recommended where frequent acceleration, impact loading or high low-speed torque is expected.
Maintenance and Replacement Notes
Verify input power, motor current, overload mode and complete model suffix before installation. Existing option cards and control wiring may require compatibility checks when replacing another GA700 regional configuration. Parameter backup should be completed before removal. If dynamic braking is required, confirm the brake resistor resistance, power rating and duty cycle against the drive manual.
Related Models
Related B-version drives include CIPR-GA70B4018ABBA-AAAAAA, CIPR-GA70B4031ABBA-AAAAAA and higher-capacity GA700 models.
Inquiry and Supply Notes
For technical confirmation, provide the complete drive nameplate, motor current, load characteristics, braking requirements and communication configuration.
