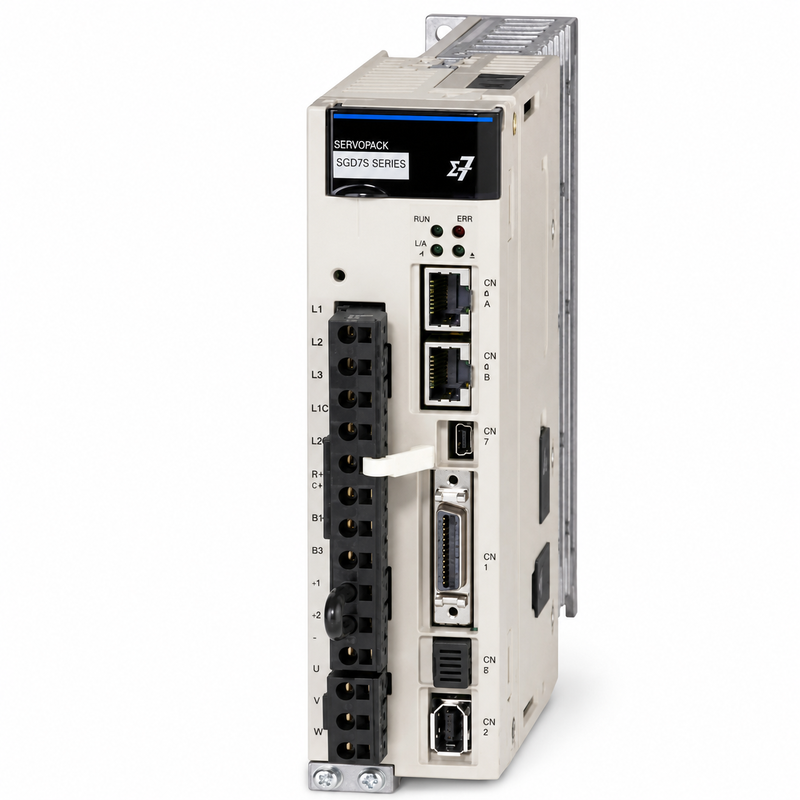

Yaskawa SGD7S-5R5A00A Sigma-7 SERVOPACK 200V 750W Analog Pulse

Product Overview

The Yaskawa SGD7S-5R5A00A is a 750 W Sigma-7 single-axis SERVOPACK for fast and accurate machine motion. Positioned between the 400 W and 1.0 kW ratings, this model is well suited to automation axes that require greater torque than compact servo systems without moving to a larger 1.0 kW drive.

Main Features

• 750 W maximum applicable servo motor capacity
• 5.5 A rated output current
• Analog voltage and pulse train command interface
• 3.1 kHz speed frequency response for rapid settling
• 24-bit serial encoder feedback
• Advanced automatic tuning and tuning-less setup
• Vibration suppression and mechanical resonance control
• Single-axis design for modular motion control systems

Technical Specifications

Compatible System and Applications

The drive is suitable for packaging, labeling, conveyor positioning, printing, assembly, material handling and compact robotic mechanisms. A compatible Sigma-7 motor must be selected according to voltage, rated power, torque-speed requirements, encoder type and brake configuration.

Maintenance and Replacement Notes

Check the full order code, motor model, control reference, power supply and connector assignments before replacement. Confirm the parameter backup, electronic gear ratio, pulse format, motor direction and overtravel input logic. The SGD7S-5R5A00A must not be confused with the EtherCAT model SGD7S-5R5AA0A.

Related Models

Related models include SGD7S-3R8A00A at 500 W, SGD7S-7R6A00A at 1.0 kW and SGD7S-120A00A at 1.5 kW.

Inquiry and Supply Notes

Provide the complete drive and motor nameplate information. Confirm whether the application uses a holding brake, external regenerative resistor, special safety hardware or application-specific firmware.
