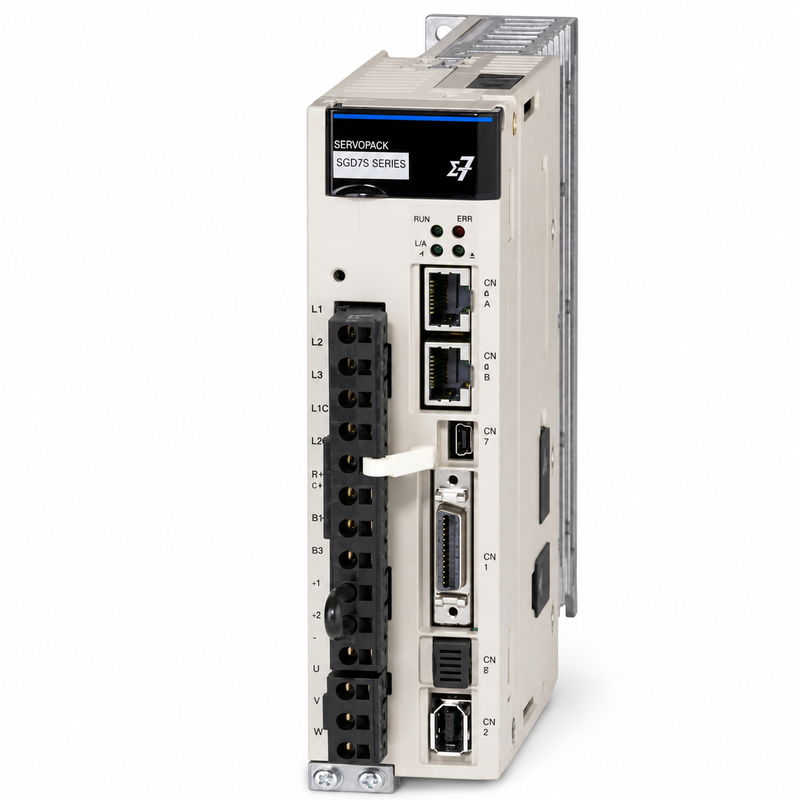

Yaskawa SGD7S-180A00A002 Sigma-7 SERVOPACK 200V 2kW Analog Pulse
| Place of Origin | USA |
| Brand Name | YASKAWA |
| Model Number | SGD7S-180A00A002 |
Product Overview
The Yaskawa SGD7S-180A00A002 is a high-capacity Sigma-7 SERVOPACK for 2 kW servo motors operating in 200 V class industrial systems. It provides analog voltage and pulse-train command inputs for integration with PLC positioning modules, CNC controls and stand-alone motion controllers. Its 18.0 A rated output supports demanding axes requiring higher acceleration, torque and load-handling capability.
Main Features
- 2 kW servo capacity with 18.0 A rated output current.
- Analog voltage and pulse-train command references.
- 3.1 kHz response for dynamic speed and position control.
- High-resolution 24-bit serial encoder processing.
- Autotuning and inertia compensation support heavy mechanical loads.
- Vibration and resonance suppression improve machine stability.
Technical Specifications
| Manufacturer | Yaskawa Electric |
| Series | Sigma-7 SGD7S |
| Complete Model | SGD7S-180A00A002 |
| Input Voltage Class | 200 V AC |
| Rated Motor Capacity | 2 kW |
| Rated Output Current | 18.0 A |
| Control Interface | Analog voltage / pulse train |
| Controlled Axes | Single axis |
| Encoder Feedback | 24-bit serial encoder |
| Speed Frequency Response | 3.1 kHz |
Compatible System and Applications
This model is suitable for machine-tool feed axes, printing and converting machinery, winding systems, forming equipment, material-handling machines and higher-inertia indexing mechanisms. System design must consider motor torque, load inertia, regenerative energy, power-circuit capacity and braking requirements.
Maintenance and Replacement Notes
Verify the full SGD7S-180A00A002 code, servo motor model, encoder type, supply phase, power-cable size, regenerative resistor and circuit protection before installation. Confirm pulse format, analog command scaling, firmware and stored parameters. High-capacity drive work should be performed only after the DC bus is fully discharged.
Related Models
Related ratings include SGD7S-120A00A002 for 1.5 kW systems and SGD7S-200A00A002 for 3 kW systems. SGD7S-180A20A uses a different communication interface and requires compatible network control hardware.
Inquiry and Supply Notes
Please provide the drive nameplate, motor nameplate, machine supply voltage, controller model, regenerative configuration and required quantity. These details are necessary for an accurate replacement assessment.
