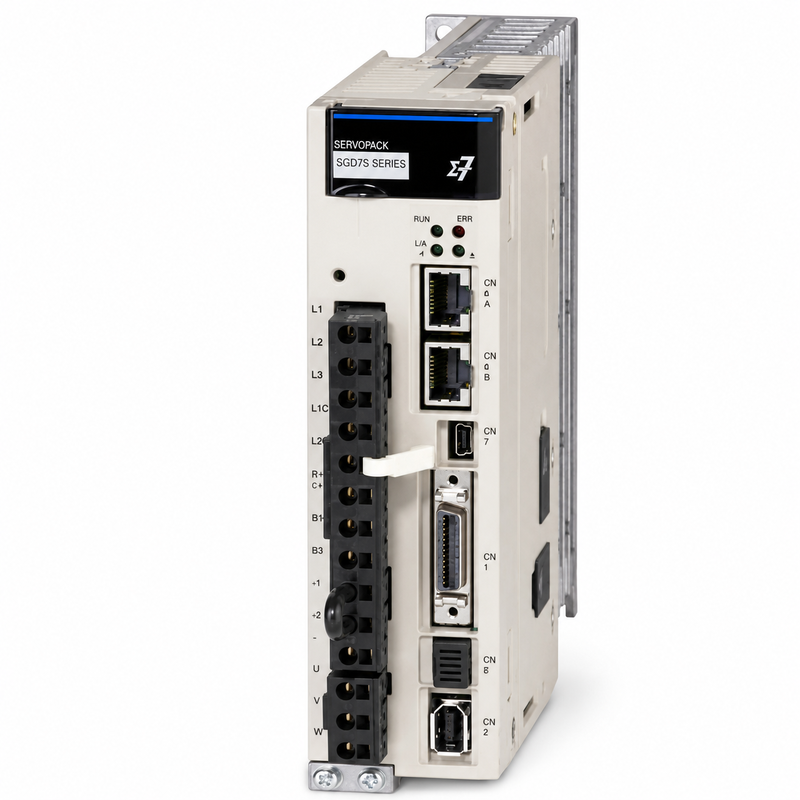

Yaskawa SGD7S-5R5A00B202 Sigma-7 SERVOPACK 200V 750W Analog Pulse

Product Overview

The Yaskawa SGD7S-5R5A00B202 is a 750 W, 200 V class Sigma-7 single-axis SERVOPACK with analog voltage and pulse-train references. It is intended for precision industrial motion systems that use conventional command signals instead of a dedicated servo network. The B202 suffix identifies a specific ordering and hardware configuration and must be treated as part of the complete model number.

Main Features

• 750 W rated motor capacity and 5.5 A rated output current.
• Analog voltage and pulse-train command capability.
• High-speed 3.1 kHz servo frequency response.
• Supports 24-bit serial encoder feedback.
• Advanced autotuning compensates for machine inertia and load changes.
• Resonance filtering and vibration suppression support precise positioning.

Technical Specifications

Compatible System and Applications

This SERVOPACK can be applied to printing machinery, packaging systems, automatic assembly equipment, cutting machines, positioning tables and medium-inertia conveyor axes. Motor compatibility must be determined from the complete servo motor code, voltage class, encoder specification and brake configuration.

Maintenance and Replacement Notes

Do not assume that SGD7S-5R5A00B202 and SGD7S-5R5A00A002 are identical. Confirm the full suffix, nameplate, hardware revision, connector arrangement and installed machine documentation. Check analog scaling, pulse format, electronic gearing, safety wiring, regenerative components and parameter compatibility before commissioning.

Related Models

Related models include SGD7S-5R5A00A002, SGD7S-5R5A00A, SGD7S-5R5A10A202 and SGD7S-5R5A20A002. The exact control interface and hardware option must be confirmed individually for each complete ordering code.

Inquiry and Supply Notes

For replacement verification, please provide clear photographs of the SERVOPACK nameplate, motor nameplate and connectors together with the controller model, existing fault information and required quantity.
