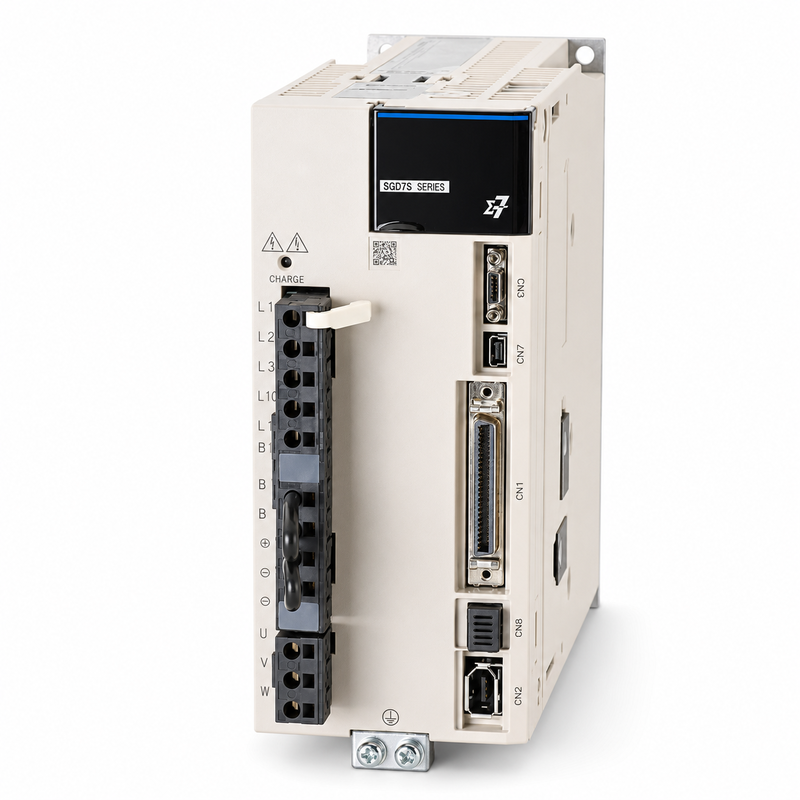

Yaskawa SGD7S-120A20A Sigma-7 SERVOPACK 200V 1.5kW MECHATROLINK-III
| Place of Origin | USA |
| Brand Name | YASKAWA |
| Model Number | SGD7S-120A20A |
Product Overview
The Yaskawa SGD7S-120A20A is a Sigma-7 single-axis SERVOPACK rated for 1.5 kW servo motors in 200 V class automation systems. Its MECHATROLINK-III communication interface supports deterministic command transmission, coordinated multi-axis motion and centralized diagnostics through a compatible Yaskawa machine controller. The model is intended for applications requiring higher torque together with accurate synchronized positioning.
Main Features
- 1.5 kW motor capacity with 12.0 A rated output current.
- MECHATROLINK-III communication for coordinated motion control.
- High 3.1 kHz speed frequency response.
- Supports high-resolution 24-bit serial encoder feedback.
- Advanced autotuning compensates for load inertia and mechanical variation.
- Vibration suppression and resonance filtering improve positioning stability.
Technical Specifications
| Manufacturer | Yaskawa Electric |
| Series | Sigma-7 SGD7S |
| Model | SGD7S-120A20A |
| Input Voltage Class | 200 V AC |
| Rated Motor Capacity | 1.5 kW |
| Rated Output Current | 12.0 A |
| Communication Interface | MECHATROLINK-III |
| Controlled Axes | Single axis |
| Encoder Feedback | 24-bit serial encoder |
| Speed Frequency Response | 3.1 kHz |
Compatible System and Applications
This SERVOPACK is suitable for packaging lines, printing machines, winding systems, synchronized conveyors, automated cutting equipment and medium-inertia positioning axes. It requires a compatible Yaskawa 1.5 kW servo motor and a controller supporting MECHATROLINK-III communication.
Maintenance and Replacement Notes
Confirm the complete SGD7S-120A20A code, connected motor, encoder type, brake option and controller network before replacement. Verify the controller project, station address, communication profile, firmware and parameter file. Inspect the network, motor and encoder cables together with the regenerative circuit, STO wiring and protective grounding.
Related Models
Related models include SGD7S-120A00A002 for analog/pulse control, SGD7S-120A10A for MECHATROLINK-II and SGD7S-120AA0A for EtherCAT. These communication versions require different controllers, cables and project settings.
Inquiry and Supply Notes
Please provide the complete drive and motor nameplates, controller model, network type, firmware, regenerative configuration and required quantity for compatibility checking.
