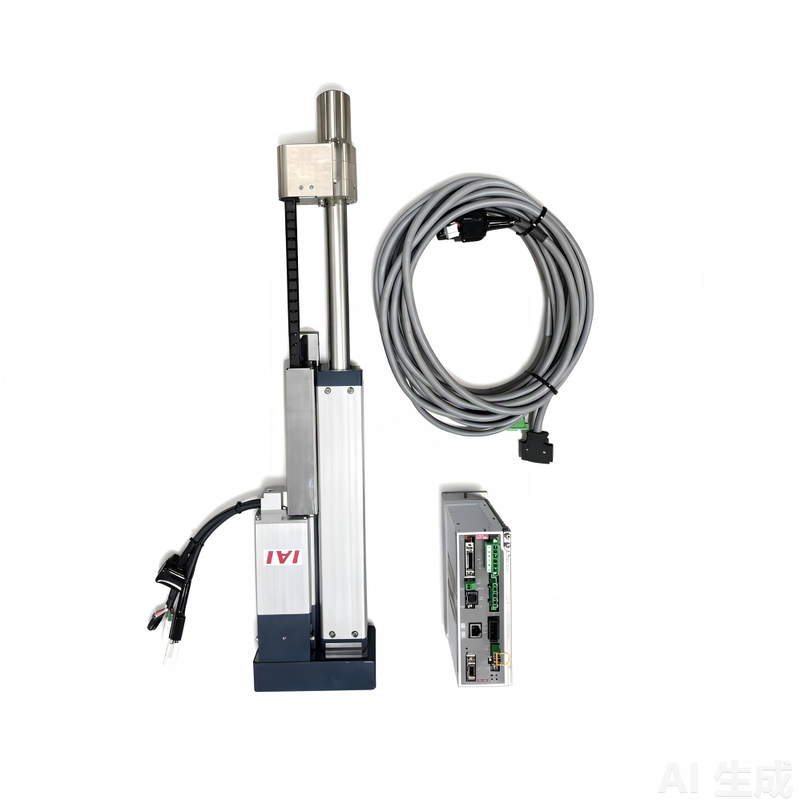

IAI RCS3-RA20R-WA-3000 Servo Press Actuator
| Place of Origin | Japan |
| Brand Name | IAI |
| Model Number | RCS3-RA20R-WA-3000 |
Product Overview
IAI RCS3-RA20R-WA-3000 is the highest-thrust RCS3 servo press actuator in this upload batch. It provides a controlled pressing-force range of 5,000 to 50,000 N and uses a 3,000 W AC servo motor with a built-in load cell.
The actuator is available with 100 mm, 300 mm and 500 mm strokes and reaches a maximum speed of 220 mm/s. It is intended for heavy industrial processes requiring high pressing force together with monitored position and load performance.
Main Features
- 5,000-50,000 N controlled thrust range
- 3,000 W AC servo motor
- Integrated load cell
- WA battery-less absolute encoder
- Maximum speed of 220 mm/s
- Position repeatability of +/-0.01 mm
- Load repeatability of +/-0.5% F.S.
- 100 mm, 300 mm and 500 mm stroke options
Technical Specifications
| Model | RCS3-RA20R-WA-3000 |
| Series | IAI RCS3 |
| Product Type | Heavy-Duty Servo Press Actuator |
| Motor Power | 3,000 W |
| Thrust Range | 5,000-50,000 N |
| Stroke Options | 100 mm, 300 mm, 500 mm |
| Maximum Speed | 220 mm/s |
| Position Repeatability | +/-0.01 mm |
| Load Repeatability | +/-0.5% F.S. |
| Encoder | WA Battery-Less Absolute |
Applications
RCS3-RA20R-WA-3000 is suitable for large bearing installation, automotive chassis and powertrain assembly, heavy metal clinching, industrial riveting, component compression and automated pressing processes requiring up to approximately five tons of thrust.
Related IAI RCS3 Models
Related models include RCS3-RA15R-WA-3300 for applications up to 30,000 N, RCS3-RA13R-WA-750 for approximately one-ton-class pressing and RCS3-RA10R-WA-200 for medium-duty assembly operations.
Maintenance and Replacement Notes
Selection must account for peak thrust, continuous duty, stroke, approach speed, pressing speed and machine-frame rigidity. Confirm the full actuator and control-system configuration before replacing an installed unit.
Inquiry and Supply Notes
Please provide the required pressing-force curve, stroke, cycle frequency, mounting orientation and equipment drawings for technical confirmation and quotation.
