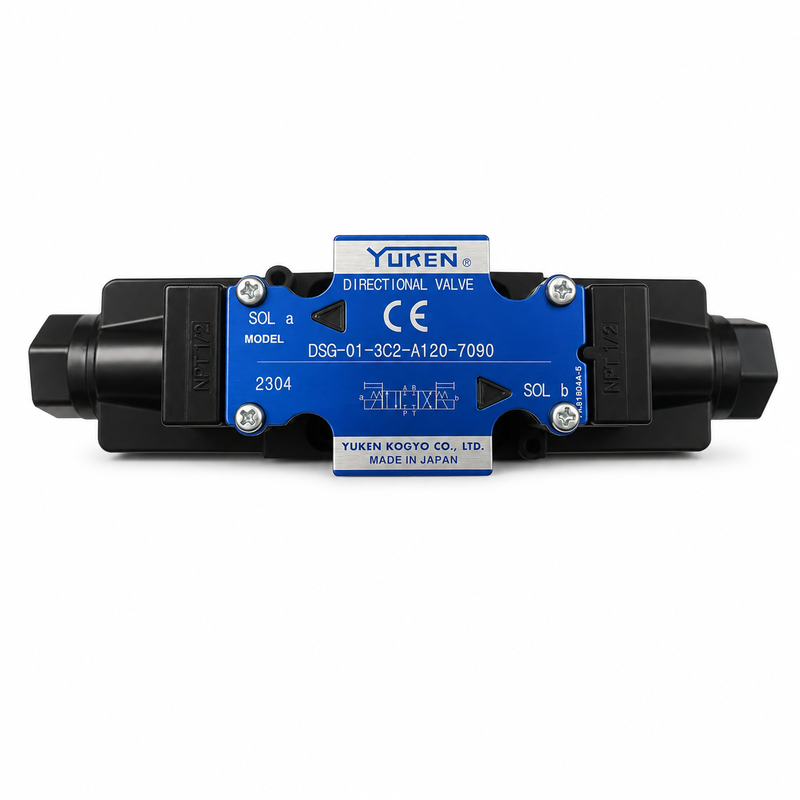

YUKEN DSG-01-3C2-A100-50 AC100V Solenoid Directional Valve

YUKEN DSG-01-3C2-A100-50 AC100V Solenoid Directional Valve

The YUKEN DSG-01-3C2-A100-50 is a solenoid-operated directional valve designed to control the start, stop and direction of hydraulic oil flow in industrial hydraulic systems.

This model belongs to the YUKEN DSG-01 series. It features a four-way, three-position configuration, an AC100V solenoid coil and a 3C2 all-ports-blocked center spool function. The valve uses an NG06 / CETOP 03 subplate mounting interface.

Main Features

• AC100V solenoid-operated control
• Four-way, three-position configuration
• 3C2 all-ports-blocked center spool function
• Maximum operating pressure up to 31.5 MPa
• Maximum flow rate up to 63 L/min
• NG06 / CETOP 03 mounting interface
• Compact subplate-mounted construction
• Suitable for industrial hydraulic systems

Technical Specifications

Typical Applications

• Hydraulic power units
• CNC machine tools
• Injection moulding machines
• Industrial presses
• Automated production equipment
• Material-handling machinery
• Hydraulic clamping systems

Selection and Replacement Notes

Before ordering, verify the complete model number, AC100V coil voltage, 3C2 spool function, electrical connection, mounting interface and design number shown on the original valve nameplate.

DSG-01 valves with different spool codes may have different center-position flow paths. A 3C2 valve should not be replaced with a 3C4, 3C60 or another spool configuration without checking the hydraulic circuit.

Ordering Information

Please provide the complete model number DSG-01-3C2-A100-50, required quantity, delivery destination and a clear photograph of the original valve nameplate when requesting a quotation.

Stock availability, product condition and delivery time are confirmed separately. Final specifications should be checked against the supplied product nameplate and applicable YUKEN technical documentation before installation.
