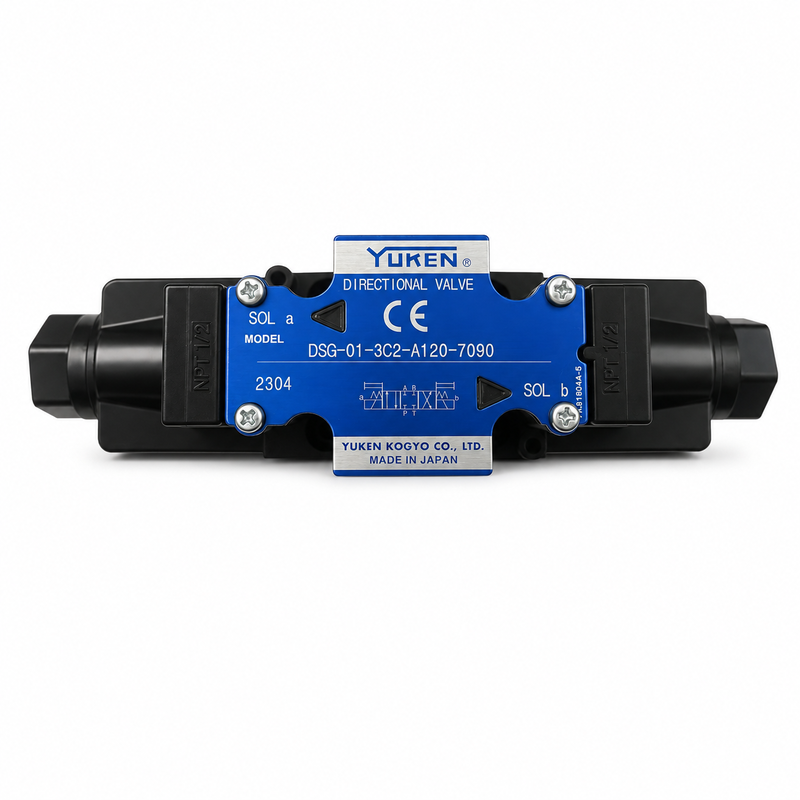

YUKEN DSG-01-3C2-D24-N1-70 DC24V Solenoid Directional Valve
|
YUKEN DSG-01-3C2-D24-N1-70 DC24V Solenoid Directional Valve
| Place of Origin | Japan |
| Brand Name | YUKEN |
| Model Number | DSG-01-3C2-D24-N1-70 |
Product Details
Brand:
YUKEN
Model:
DSG-01-3C2-A100-50
Series:
DSG-01
Spool Function:
3C2 / All Ports Blocked Center
Valve Configuration:
4-Way, 3-Position
Coil Voltage:
DC 24V
Electrical Option:
N1 Indicator Connector
Nominal Size:
NG06 / CETOP 03
Maximum Pressure:
Up To 31.5 MPa
Payment & Shipping Terms
Minimum Order Quantity
1 unit
Price
USD 167.77 /Unit
Packaging Details
Brand new original packaging
Delivery Time
7-14 Days
Payment Terms
T/T
Supply Ability
10Units per Month
Product Description
YUKEN DSG-01-3C2-D24-N1-70 DC24V Solenoid Directional Valve
The YUKEN DSG-01-3C2-D24-N1-70 is a DC24V solenoid-operated directional valve equipped with the N1 electrical connector option.
It uses a four-way, three-position 3C2 spool configuration and the compact NG06 / CETOP 03 subplate mounting interface.
Main Features
- DC24V solenoid operation
- N1 indicator connector option
- Four-way, three-position configuration
- 3C2 closed-center spool function
- Operating pressure up to 31.5 MPa
- NG06 / CETOP 03 mounting
Technical Specifications
| Brand | YUKEN |
| Model | DSG-01-3C2-D24-N1-70 |
| Series | DSG-01 |
| Spool Function | 3C2 / Closed Center |
| Configuration | 4-Way, 3-Position |
| Coil Voltage | DC 24V |
| Electrical Option | N1 Indicator Connector |
| Nominal Size | NG06 / CETOP 03 |
| Maximum Pressure | Up to 31.5 MPa |
| Design Number | 70 |
Typical Applications
- Hydraulic power packs
- Machine tools
- Industrial automation systems
- Hydraulic clamping equipment
- Material-handling machinery
Selection Notes
Check the DC24V coil, N1 connector, 3C2 spool function and complete design suffix against the original valve nameplate before ordering.
