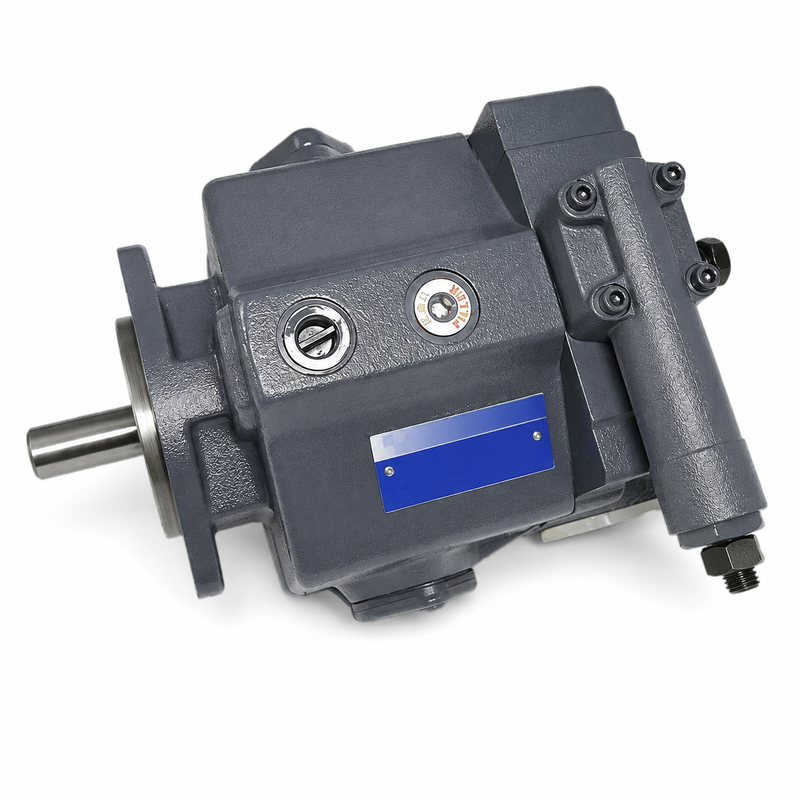

TOKYO KEIKI P8VMR-20-CB-10 Variable Piston Pump
| Place of Origin | Japan |
| Brand Name | TOKYO KEIKI |
| Model Number | P8VMR-20-CB-10 |
TOKYO KEIKI TOKIMEC P8VMR-20-CB-10 Variable Piston Pump
The TOKYO KEIKI TOKIMEC P8VMR-20-CB-10 is a compact low-noise variable displacement axial piston pump with an approximate maximum displacement of 8.4 cm³/rev.
The CB configuration provides pressure-compensator control without the additional maximum-displacement adjustment identified by the CBC code.
Hydraulic Operation
At pressures below the compensator setting, the pump supplies displacement according to circuit demand. As outlet pressure reaches the setting, the swash plate moves toward minimum displacement to maintain pressure with reduced delivery.
The pump is intended for systems operating within an approximate pressure-setting range of 1.8 to 7 MPa.
Technical Specifications
| Brand | TOKYO KEIKI / TOKIMEC |
| Model | P8VMR-20-CB-10 |
| Pump Type | Low-noise variable displacement axial piston pump |
| Maximum Displacement | Approximately 8.4 cm³/rev |
| Rotation | Clockwise when viewed from the shaft end |
| Control Method | Pressure compensator control |
| Maximum Displacement Adjuster | Not identified in the CB configuration |
| Pressure Setting Range | Approximately 1.8 to 7 MPa |
| Maximum Case-Drain Pressure | Approximately 35 kPa |
| Pump Design Number | 20 |
| Control Design Number | 10 |
Installation Notes
- Confirm the required clockwise rotation from the shaft end.
- Fill the pump case and prime the suction line before startup.
- Prevent air leakage on the suction side.
- Keep the drain line separate from high-back-pressure return lines.
- Verify the pressure setting with a calibrated gauge during commissioning.
- Check the complete model code before ordering seals or replacement parts.
Replacement Notes
This Design 20 model is cited as a successor for certain older P8VMR Design 10 pumps. Replacement suitability still depends on the CB or CBC control configuration, shaft, flange, ports and required maximum-displacement adjustment.
Products advertised only as “suitable for" or “substitute" must not be represented as original TOKYO KEIKI pumps.
