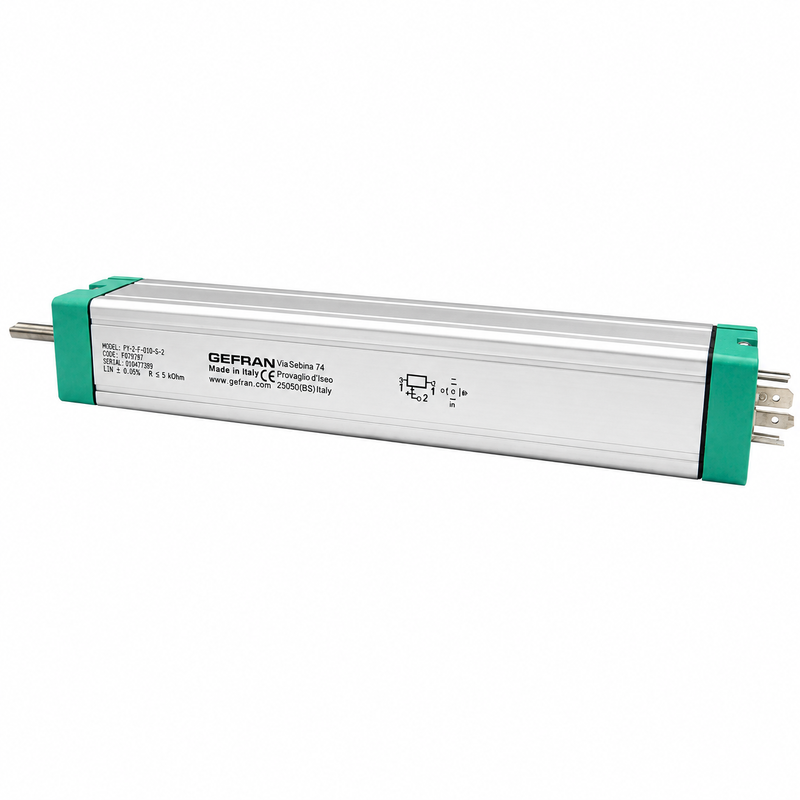

Gefran LT-M-0100-S 0000X000X00 Linear Position Transducer

100 mm Linear Measurement Configuration

The Gefran LT-M-0100-S 0000X000X00 is an LT-series potentiometric linear position transducer identified by Gefran ordering number F003494. It provides absolute position feedback over a 100 mm electrical stroke and is intended for machinery where the movement of a slide, carriage, guide or other linearly moving component must be converted into a proportional electrical signal.

Unlike a proximity switch that reports only an end position, the LT transducer continuously tracks displacement throughout its usable stroke. Its compact profiled body is suited to machine installations where a conventional cylindrical rod-eye sensor would occupy too much space or introduce an unsuitable linkage arrangement.

Model-Specific Characteristics

• Verified complete model: LT-M-0100-S 0000X000X00.
• Associated Gefran ordering number: F003494.
• Nominal electrical stroke: 100 mm.
• Potentiometric measurement principle provides an absolute position signal without a homing cycle.
• S configuration uses the applicable LT profile-mounting arrangement.
• Electrical connection is associated with a DIN 43650 Form A connector configuration.

Verified Technical Specifications

Installation and Signal Integration

The transducer body and moving element must be installed so that the machine travel remains aligned with the sensor measurement axis. Side loading, twisting or travel beyond the mechanical limits can shorten service life. Before installation, compare the available stroke, mounting-channel position, connector orientation and closed and extended dimensions with the existing assembly.

Because this is a passive potentiometric device, the excitation supply, input impedance, grounding and signal scaling are determined by the connected controller or signal-conditioning circuit. The published 60 V value must not be treated as the required operating voltage. Use the equipment wiring diagram to confirm the actual excitation and terminal assignments.

Comparison with Other LT Stroke Options

The LT-M-0200-S 0000X000X00, ordering number F003538, provides a 200 mm stroke and requires substantially more installation length. The LT-M-0150-S 0000X000X00 F003518 provides an intermediate 150 mm stroke, while the LT-M-0225-S 0000X000X00 F003549 extends the measurement range to 225 mm. These versions must not be selected solely by connector appearance because stroke, body length and mounting geometry differ.

Replacement and Ordering Checks

Confirm the complete nameplate string, F003494 ordering number, 100 mm stroke, suffix letters, configuration characters and connector before purchase. Inspect the original product photographs for the nameplate, connector and mounting profile. A listing showing only “LT-M-0100-S" does not establish that its complete configuration is 0000X000X00.

Related models are provided for family reference only and are not automatically interchangeable.

Inquiry and Internal Reference

For an inquiry, provide photographs of the complete nameplate and connector together with the required quantity and application details. A useful related-series link can use the anchor text “Gefran LT 100 mm and 200 mm Position Transducers" rather than a generic navigation phrase.
