Gefran LT-M-0200-S 0000X000X00 200 mm Position Transducer

Product Overview

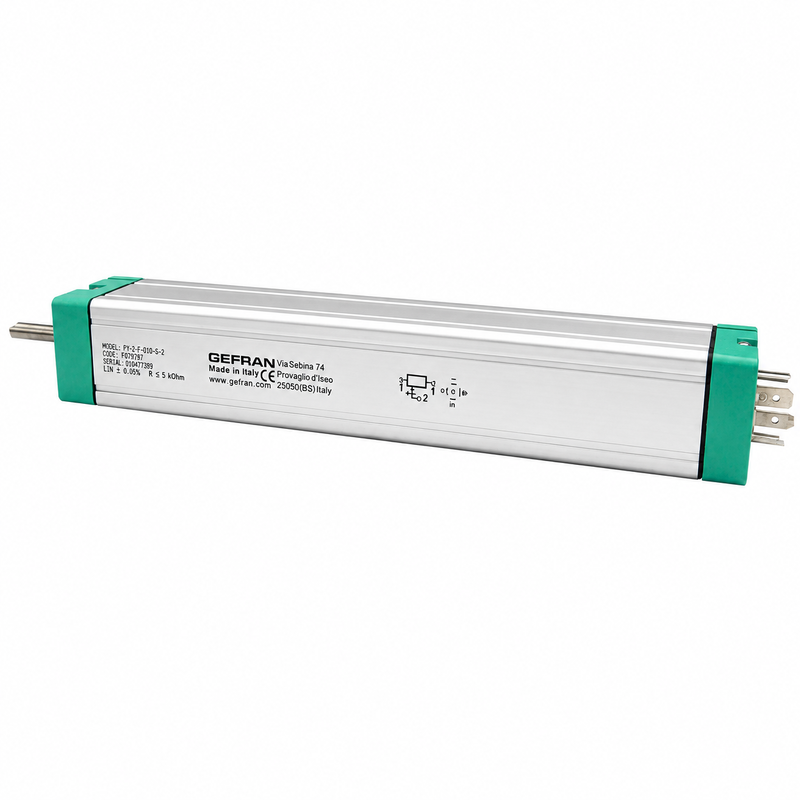

The Gefran LT-M-0200-S 0000X000X00 is a 200 mm potentiometric linear position transducer from the Gefran LT family. The verified ordering number for this configuration is F003538. It is designed to generate continuous absolute feedback from the movement of industrial machine components such as slides, positioning carriages, forming equipment and material-handling mechanisms.

The 200 mm travel is the defining characteristic of this version. Although shorter LT models may share the same profile appearance and connector family, their body length and usable measurement range are different. The required machine travel should therefore be measured before using F003538 as a replacement.

Application-Relevant Features

• Continuous absolute displacement feedback over a 200 mm electrical stroke.
• Potentiometric operating principle does not require an encoder reference cycle.
• Profile construction intended for alignment with linear machine motion.
• DIN 43650 Form A electrical connector configuration.
• Exact ordering reference F003538 distinguishes this unit from neighboring LT stroke options.

Technical Data for F003538

Why the 200 mm Version Requires Separate Verification

A 200 mm sensor requires more axial installation space than the LT-M-0100-S 0000X000X00 F003494. Machine travel must remain within the sensor’s mechanical range, and the linkage must not impose lateral force on the moving element. Verify the fully retracted position, maximum extension, mounting-channel location and cable clearance before removing the existing sensor.

The transducer should be connected only after confirming the terminal diagram for the installed control system. Excitation voltage and signal scaling are application-dependent. The maximum applicable voltage is a limit, not a recommended control voltage or proof that the existing machine uses that value.

Neighboring LT Configurations

The LT-M-0175-S 0000X000X00 F003529 has a 175 mm stroke and may suit machines with shorter travel. The LT-M-0225-S 0000X000X00 F003549 provides 225 mm travel, while the LT-M-0300-S 0000X000X00 F003572 extends the range to 300 mm. Changing stroke changes both the measurement range and physical installation envelope; controller scaling may also need modification.

Maintenance and Replacement Notes

Before replacement, isolate the machine, record conductor positions and preserve the original mounting reference. Check for worn couplings, misalignment or overtravel that may have contributed to the previous sensor failure. Do not identify the replacement using only “LT-M-0200-S"; confirm the complete 0000X000X00 configuration and F003538 on the nameplate.

Related models are provided for family reference only and are not automatically interchangeable.

Inquiry and Supply Notes

Submit a clear photograph of the complete nameplate, connector and installed mounting arrangement with the inquiry. Suggested internal-link anchor text is “Gefran LT-M-0200-S 200 mm Position Transducer and Stroke Options." Availability and product condition must be confirmed separately for each quotation.
