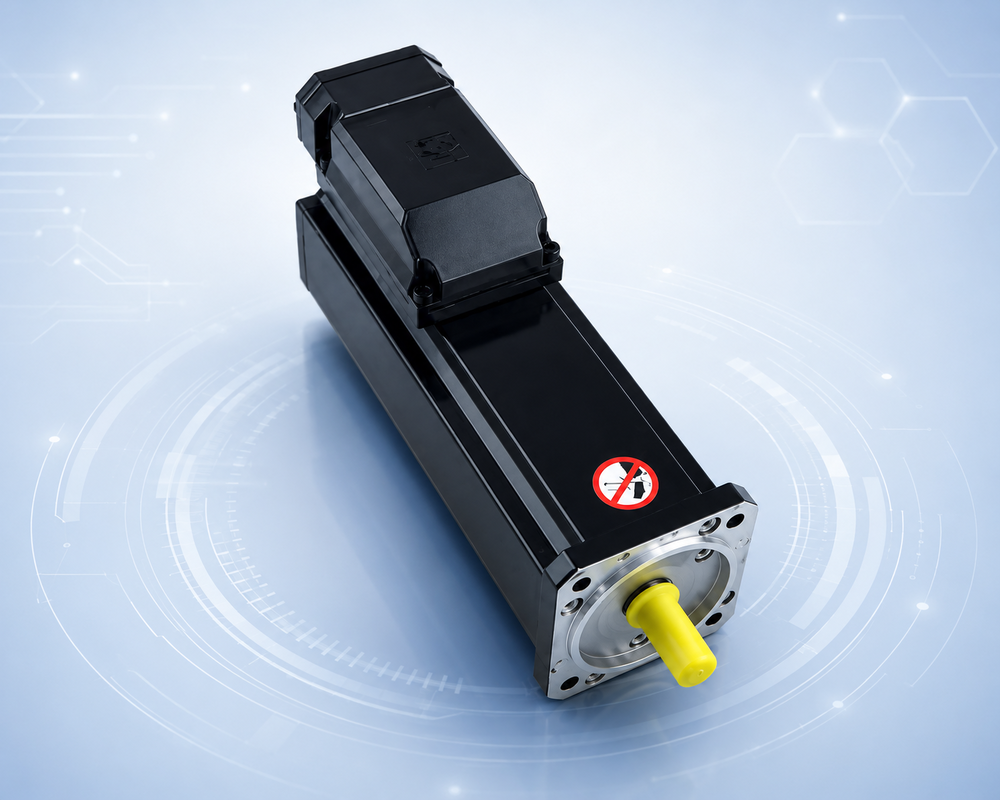

Schneider ELAU PacDrive iSH070/60022 Intelligent Servo Module
| Place of Origin | Germany |
| Brand Name | Schneider |
| Model Number | iSH070/60022 |
Product Overview
Schneider ELAU PacDrive iSH070/60022 is an intelligent servo module used in packaging machines, synchronized motion systems, production equipment, and legacy PacDrive automation systems. It belongs to the PacDrive M iSH070 family and integrates servo motor function with intelligent drive electronics for distributed motion control applications.
This page is designed as the main reference page for the iSH070/60022 family. It is the highest torque class within this iSH070 group, with 6000 rpm rated speed, 2.2 Nm standstill torque, and 8.7 Nm peak torque. It is suitable for high-value replacement demand in packaging machinery, material handling sections, indexing axes, filling machines, wrapping machines, and synchronized production lines.
Main Features
- PacDrive M iSH070 intelligent servo module
- Core type iSH070/60022
- 6000 rpm rated speed
- 2.2 Nm standstill torque and 8.7 Nm peak torque
- Integrated intelligent servo module for distributed motion systems
- Suitable for packaging machine axes and synchronized servo applications
- High-value replacement family for legacy ELAU PacDrive systems
Technical Specifications
| Model | iSH070/60022 |
| Brand | Schneider ELAU |
| Series | PacDrive M iSH070 |
| Product Type | Intelligent Servo Module |
| Rated Speed | 6000 rpm |
| Standstill Torque | 2.2 Nm |
| Peak Torque | 8.7 Nm |
| Rotor Inertia | 0.58 kg·cm² |
| Net Weight | 4.2 kg without brake / 4.7 kg with brake |
| Shaft Diameter | 14 mm |
| System Type | PacDrive distributed servo motion system |
| Replacement Check | Confirm full VIA reference, shaft type, shaft seal, encoder type, brake option, cable set, firmware, and PacDrive controller compatibility |
Compatible System and Applications
iSH070/60022 modules are used in Schneider ELAU PacDrive systems with compatible C200 or C600 motion controllers, PacDrive servo infrastructure, SERCOS-based machine networks, HMI panels, machine I/O, power supply units, and industrial automation systems. Typical applications include packaging machines, wrapping machines, cartoning machines, filling stations, labeling equipment, conveyors, pick-and-place units, and multi-axis production lines.
Maintenance and Replacement Notes
When replacing an iSH070/60022 module, do not select only by the core model. The complete installed VIA reference must be checked because iSH070/60022 variants can differ by smooth shaft or keyed shaft, shaft seal, IP protection at the shaft, SKS36 single-turn feedback, SKM36 multi-turn feedback, holding brake, stainless-steel shaft option, and special machine configuration. Incorrect selection may cause mechanical mismatch, communication error, servo axis alarm, brake fault, or commissioning delay.
Available Variants and Related Models
Common iSH070/60022 variants include VIA0703D01A0000, VIA0703D01F0000, VIA0703D02A0000, VIA0703D02F0000, VIA0703D11A0000, VIA0703D11F0000, VIA0703D12A0000, VIA0703D12F0000, VIA0703D21A0000, VIA0703D21F0000, VIA0703D22A0000, VIA0703D22F0000, VIA0703D31A0000, VIA0703D31F0000, VIA0703D32A0000, VIA0703D32F0000, VIA0703DC1F0000, VIA0703DD1A0000, and VIA0703DD1F0000.
These variants may differ by shaft configuration, shaft seal, feedback system, holding brake, stainless-steel shaft design, and machine-specific suffix. For urgent replacement, compare the full nameplate model before ordering.
Inquiry and Supply Notes
DF Automatic supplies Schneider ELAU PacDrive iSH intelligent servo modules, SM servo motors, PacDrive C200 and C600 motion controllers, servo drives, power supplies, cables, HMI panels, and industrial automation spare parts for packaging machine maintenance, servo axis replacement, and legacy PacDrive system repair.
