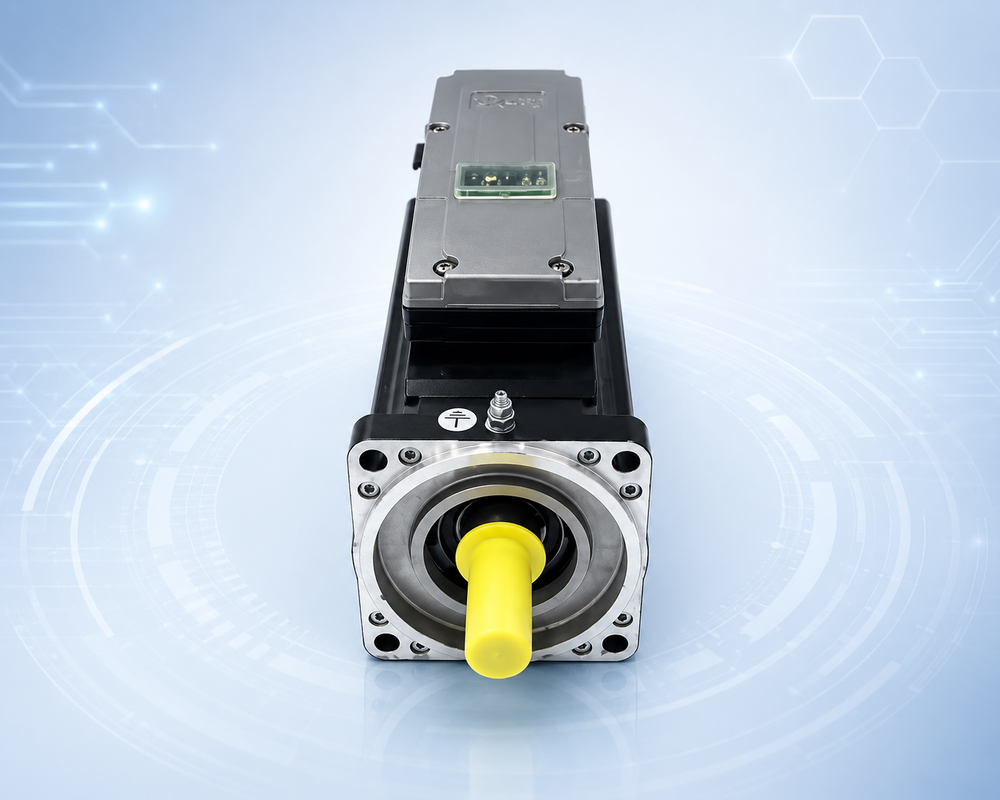

Schneider ELAU PacDrive iSH070/60011 Intelligent Servo Module
| Place of Origin | Germany |
| Brand Name | Schneider |
| Model Number | iSH070/60011 |
Product Overview
Schneider ELAU PacDrive iSH070/60011 is an intelligent servo module used in compact machine axes, packaging equipment, light-duty synchronized motion systems, and legacy PacDrive machine maintenance. It is part of the PacDrive M iSH070 family and is suitable for distributed servo applications where compact size and integrated servo electronics are required.
The iSH070/60011 core type provides 6000 rpm rated speed, 1.1 Nm standstill torque, and 3.5 Nm peak torque. It is suitable for lighter machine axes such as feeder units, labeling stations, small conveyors, compact packaging equipment, indexing mechanisms, and auxiliary motion sections in production machines.
Main Features
- PacDrive M iSH070 intelligent servo module
- Core type iSH070/60011
- 6000 rpm rated speed
- 1.1 Nm standstill torque and 3.5 Nm peak torque
- Integrated servo electronics for distributed motion systems
- Suitable for compact machine axes and light-duty servo applications
- Useful replacement family for older PacDrive packaging machines
Technical Specifications
| Model | iSH070/60011 |
| Brand | Schneider ELAU |
| Series | PacDrive M iSH070 |
| Product Type | Intelligent Servo Module |
| Rated Speed | 6000 rpm |
| Standstill Torque | 1.1 Nm |
| Peak Torque | 3.5 Nm |
| Rotor Inertia | 0.25 kg·cm² |
| Net Weight | 2.7 kg without brake / 3.0 kg with brake |
| Shaft Diameter | 11 mm |
| System Type | PacDrive distributed servo motion system |
| Replacement Check | Confirm full VIA reference, shaft configuration, shaft seal, encoder type, brake option, cable set, and PacDrive system compatibility |
Compatible System and Applications
iSH070/60011 modules are used in Schneider ELAU PacDrive systems with compatible C200 and C600 motion controllers, machine networks, HMI panels, machine I/O, cable sets, and distributed servo infrastructure. Typical applications include compact packaging machines, labeling systems, light feeder axes, conveyors, small indexing systems, wrapping stations, and auxiliary motion axes.
Maintenance and Replacement Notes
When replacing an iSH070/60011 module, confirm the complete installed VIA reference and full type code. Similar modules may vary by smooth or keyed shaft, shaft seal, feedback type, brake option, and special suffix. Selecting only by the core model can cause feedback mismatch, brake mismatch, mechanical coupling problems, or communication and commissioning errors.
Available Variants and Related Models
Common iSH070/60011 variants include VIA0701D01A0000, VIA0701D01F0000, VIA0701D02A0000, VIA0701D02F0000, VIA0701D11A0000, VIA0701D11F0000, VIA0701D12A0000, VIA0701D12F0000, VIA0701D21A0000, VIA0701D22A0000, VIA0701D22F0000, VIA0701D31A0000, VIA0701D31F0000, VIA0701D32A0000, and VIA0701D32F0000.
These variants may differ by shaft type, shaft seal, SKS36 or SKM36 feedback, holding brake, IP protection at the shaft, and installed machine requirement. Confirm the installed label before ordering a replacement.
Inquiry and Supply Notes
DF Automatic supplies Schneider ELAU iSH070 intelligent servo modules, PacDrive servo modules, SM servo motors, C200 and C600 motion controllers, power supplies, cables, HMI panels, and industrial automation spare parts for compact packaging machine maintenance and legacy PacDrive system replacement.
