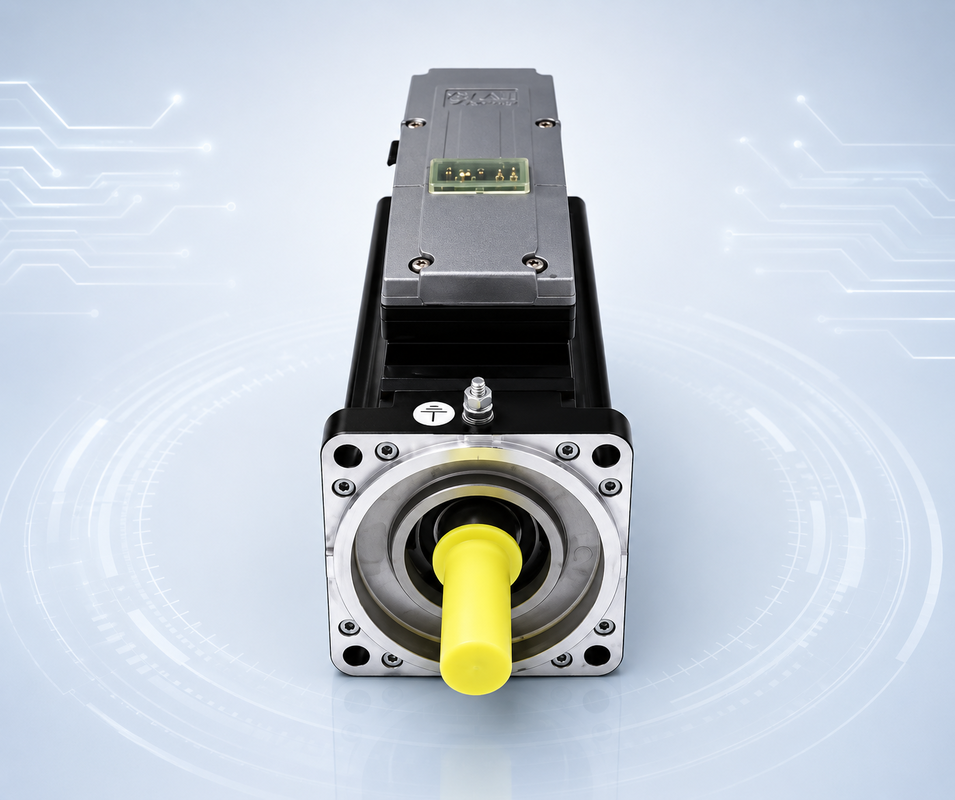

Schneider ELAU VIA1401C12F0000 PacDrive iSH140/30075 Intelligent Servo Module
| Place of Origin | Germany |
| Brand Name | Schneider |
| Model Number | VIA1401C12F0000 |
Product Overview
Schneider ELAU VIA1401C12F0000 is a PacDrive M iSH140 intelligent servo module used in industrial packaging machines, servo-driven production equipment, motion control systems, and legacy PacDrive automation platforms. Its core model is iSH140/30075, and the full technical model is iSH140/30075/0/1/00/0/00/11/00.
This model is a practical first-batch upload item because it represents a common high-configuration iSH140/30075 variant with keyed shaft, SKM36 multiturn feedback, and holding brake. It can target exact VIA model searches while also covering the broader iSH140/30075 standard model keyword.
Main Features
- PacDrive M iSH140 intelligent servo module
- Commercial reference VIA1401C12F0000
- Core model iSH140/30075
- 1.45 kW rated power and 3000 rpm rated speed
- 4.6 Nm rated torque, 7.5 Nm standstill torque, and 27 Nm peak torque
- Keyed shaft with DIN 6885 shaft design
- SKM36 multiturn SinCos feedback
- With 23 Nm holding brake
- Integrated servo electronics for distributed PacDrive systems
Technical Specifications
| Commercial Ref. | VIA1401C12F0000 |
| Core Model | iSH140/30075 |
| Full Technical Model | iSH140/30075/0/1/00/0/00/11/00 |
| Brand | Schneider ELAU |
| Series | PacDrive M iSH140 |
| Product Type | Intelligent Servo Module / Integrated Servo Drive Motor |
| Rated Power | 1.45 kW |
| Rated Speed | 3000 rpm |
| Rated Torque | 4.6 Nm |
| Standstill Torque | 7.5 Nm |
| Peak Torque | 27 Nm |
| Shaft Configuration | Keyed shaft, DIN 6885 |
| Encoder | SKM36 multiturn SinCos |
| Holding Brake | With 23 Nm holding brake |
| Protection | IP54 shaft / IP65 housing |
| Connection | Hybrid connector |
| Electrical System | 270–680 VDC bus; integrated servo electronics; 24 VDC control |
| Approx. Weight | 13.8 kg |
| Shaft Diameter | 24 mm |
| Shaft Extension | 50 mm |
| Overall Length | 292 mm |
Compatible System and Applications
VIA1401C12F0000 is used in Schneider ELAU PacDrive M distributed servo systems with compatible C200 or C600 controllers, machine I/O, HMI panels, servo communication networks, and industrial packaging equipment. Typical applications include packaging lines, filling machines, wrapping equipment, conveyors, cartoning systems, labeling machines, and synchronized machine axes.
Maintenance and Replacement Notes
When replacing VIA1401C12F0000, confirm the complete VIA reference, iSH140/30075 core model, full technical code, keyed shaft, SKM36 multiturn feedback, brake circuit, cable set, controller project, and axis parameters. Do not select only by the iSH140 frame size because different iSH140 modules may use different encoder, shaft, brake, and protection configurations.
Related Models
Related iSH140/30075 models include VIA1401C12F0000, VIA1401C11F0000, VIA1401C12A0000, VIA1401C11A0000, VIA1401C22A0000, VIA1401C21A0000, VIA1401C02F0000, VIA1401C01F0000, VIA1401C02A0000, and VIA1401C01A0000. These models may differ by shaft type, shaft seal, encoder type, and holding brake.
Inquiry and Supply Notes
DF Automatic supplies Schneider ELAU VIA1401C12F0000 intelligent servo modules, PacDrive iSH140 servo modules, C200 and C600 motion controllers, power supplies, cables, HMI panels, and industrial automation spare parts for factory maintenance and production line recovery.
