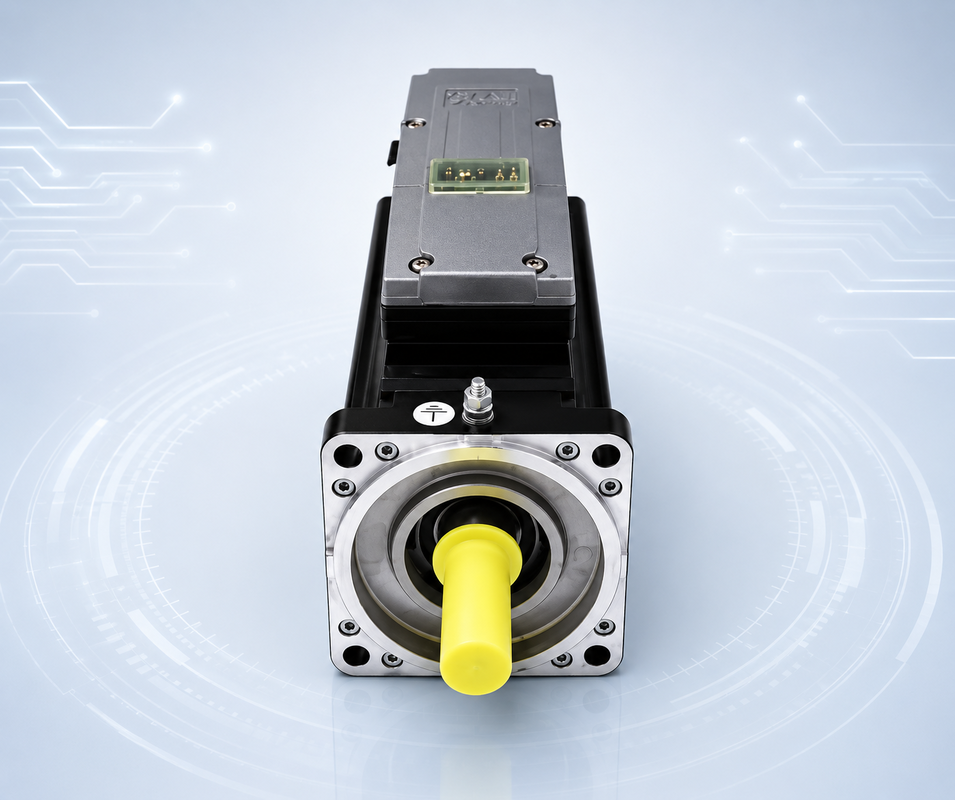

Schneider ELAU VIA1402B12F0000 PacDrive iSH140/20125 Intelligent Servo Module
| Place of Origin | Germany |
| Brand Name | Schneider |
| Model Number | VIA1402B12F0000 |
Product Overview
Schneider ELAU VIA1402B12F0000 is a PacDrive M iSH140 intelligent servo module used in packaging machines, synchronized motion systems, production lines, and legacy PacDrive automation equipment. Its core model is iSH140/20125, and the full technical model is iSH140/20125/0/1/00/0/00/11/00.
This model is a high-value standard configuration for iSH140/20125 replacement demand. It uses a keyed shaft, SKM36 multiturn SinCos feedback, and a 23 Nm holding brake. For small industrial websites, this exact VIA model is suitable for long-tail search traffic while still covering the broader iSH140/20125 keyword.
Main Features
- PacDrive M iSH140 intelligent servo module
- Commercial reference VIA1402B12F0000
- Core model iSH140/20125
- 1.91 kW rated power and 2000 rpm rated speed
- 9.1 Nm rated torque, 12.5 Nm standstill torque, and 55 Nm peak torque
- Keyed shaft with DIN 6885 shaft design
- SKM36 multiturn SinCos feedback
- With 23 Nm holding brake
- Integrated servo electronics for PacDrive distributed motion systems
Technical Specifications
| Commercial Ref. | VIA1402B12F0000 |
| Core Model | iSH140/20125 |
| Full Technical Model | iSH140/20125/0/1/00/0/00/11/00 |
| Brand | Schneider ELAU |
| Series | PacDrive M iSH140 |
| Product Type | Intelligent Servo Module / Integrated Servo Drive Motor |
| Rated Power | 1.91 kW |
| Rated Speed | 2000 rpm |
| Rated Torque | 9.1 Nm |
| Standstill Torque | 12.5 Nm |
| Peak Torque | 55 Nm |
| Shaft Configuration | Keyed shaft, DIN 6885 |
| Encoder | SKM36 multiturn SinCos |
| Holding Brake | With 23 Nm holding brake |
| Protection | IP54 shaft / IP65 housing |
| Connection | Hybrid connector |
| Electrical System | 270–680 VDC bus; integrated servo electronics; 24 VDC control |
| Approx. Weight | 18.5 kg |
| Shaft Diameter | 24 mm |
| Shaft Extension | 50 mm |
| Overall Length | 347 mm |
Compatible System and Applications
VIA1402B12F0000 is used in Schneider ELAU PacDrive M systems with compatible C200 or C600 motion controllers, distributed servo networks, HMI panels, machine I/O, power supply units, and packaging machine control systems. Typical applications include cartoning machines, wrapping machines, filling lines, labeling equipment, conveyors, indexing axes, and synchronized production equipment.
Maintenance and Replacement Notes
Before replacing VIA1402B12F0000, confirm the complete VIA reference, full iSH140/20125 technical model, keyed shaft requirement, SKM36 multiturn feedback, brake option, cable set, PacDrive controller project, and servo axis parameters. Similar iSH140 modules may not be interchangeable if the shaft type, encoder type, brake configuration, or protection design is different.
Related Models
Related iSH140/20125 models include VIA1402B12F0000, VIA1402B11F0000, VIA1402B12A0000, VIA1402B11A0000, VIA1402B31F0000, VIA1402B32A0000, VIA1402B22F0000, VIA1402B21F0000, VIA1402B02F0000, and VIA1402B01F0000. These models may differ by shaft type, shaft seal, encoder type, holding brake, and protection rating.
Inquiry and Supply Notes
DF Automatic supplies Schneider ELAU PacDrive iSH140 intelligent servo modules, iSH100 modules, iSH070 modules, SM servo motors, C200 and C600 motion controllers, power supplies, cables, HMI panels, and industrial automation spare parts for packaging machine maintenance and legacy PacDrive system repair.
