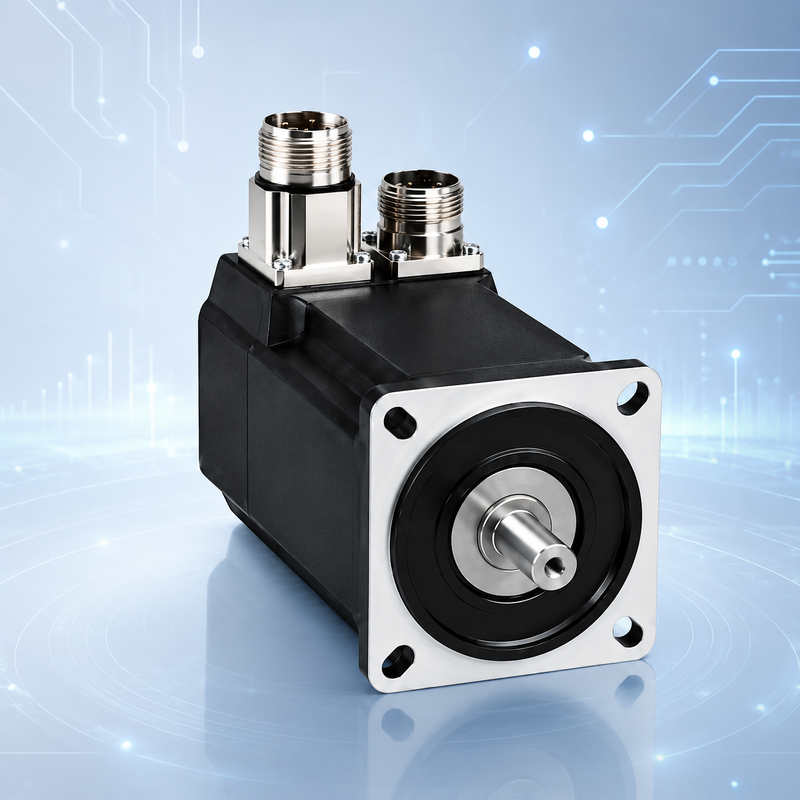

Schneider ELAU SH31401P01A2000 PacDrive SH140/30120 2.90kW 3000RPM Servo Motor SKS36

Product Overview

The Schneider ELAU SH31401P01A2000 is a standalone permanent-magnet synchronous servo motor from the PacDrive SH140 family. It corresponds to the legacy technical model SH140/30120/0/0/00/00/00/00/00 and ELAU article number 65014102V001003.

This standard 1-stack SH140 configuration provides approximately 2.90 kW continuous power, 9.2 Nm nominal torque and 11.1 Nm continuous stall torque at a nominal speed of 3000 RPM. The motor uses a smooth steel shaft, an SKS36 single-turn feedback system and no holding brake.

SH31401P01A2000 is the exact Schneider commercial reference and should be used as the primary model when requesting a replacement. The complete legacy slash-format model and article number should also be checked against the installed nameplate.

Main Features

• Exact commercial reference: SH31401P01A2000
• Legacy model: SH140/30120/0/0/00/00/00/00/00
• ELAU article number: 65014102V001003
• PacDrive SH140 standalone servo motor
• Continuous power: approximately 2.90 kW
• Nominal speed: 3000 RPM
• Nominal torque: approximately 9.2 Nm
• Continuous stall torque: approximately 11.1 Nm
• Peak torque: approximately 27 Nm
• Smooth steel shaft
• SKS36 single-turn feedback system
• Without holding brake
• IP54 shaft and IP65 housing configuration

Technical Specifications

Compatible System and Applications

The SH31401P01A2000 is intended for compatible Schneider ELAU PacDrive servo-drive and motion-controller systems. Typical applications include packaging machinery, printing equipment, converting machinery, rotary positioning systems, indexing mechanisms, conveyor axes and automated production equipment.

The smooth shaft is generally used with a clamping coupling or another keyless mechanical connection. Confirm the shaft dimensions, motor flange, coupling fit, radial load, axial load and machine mounting arrangement before installation.

Motor and servo-drive compatibility must be evaluated using the required continuous torque, peak torque, speed profile, load inertia, acceleration cycle, encoder interface and machine duty cycle.

Maintenance and Replacement Notes

Verify the complete SH31401P01A2000 reference, legacy model and ELAU article number before replacement. Do not identify the motor only as SH140 or SH140/30120 because the same performance platform includes different shaft, encoder, brake and protection configurations.

Confirm that the original motor uses a smooth shaft, SKS36 single-turn feedback and no holding brake. A multi-turn encoder or brake-equipped model may require controller-project changes, additional brake wiring or a different machine reference procedure.

Inspect the motor cable, feedback cable, connector pins, protective earth, shaft, coupling, bearings and driven mechanism. Verify the installed servo drive, firmware, controller project and complete cable set before commissioning.

Related Models

Related SH140/30120 configurations include smooth-shaft and keyed-shaft versions, SKS36 single-turn and SKM36 multi-turn versions, and models with or without a holding brake.

Confirmed protection variants may include IP65 shaft or IP67 housing configurations. Special references ending in 2009, 2300 or 2400 should be verified from the complete nameplate and machine documentation before quotation.

Inquiry and Supply Notes

Please provide clear photographs of the complete motor nameplate, shaft, flange and connectors when requesting a quotation. Also provide the installed servo-drive model, motor cable, feedback cable and machine application information.

The exact commercial reference, encoder type, shaft configuration, hardware revision, product condition, testing status, availability and delivery time must be confirmed before quotation.
