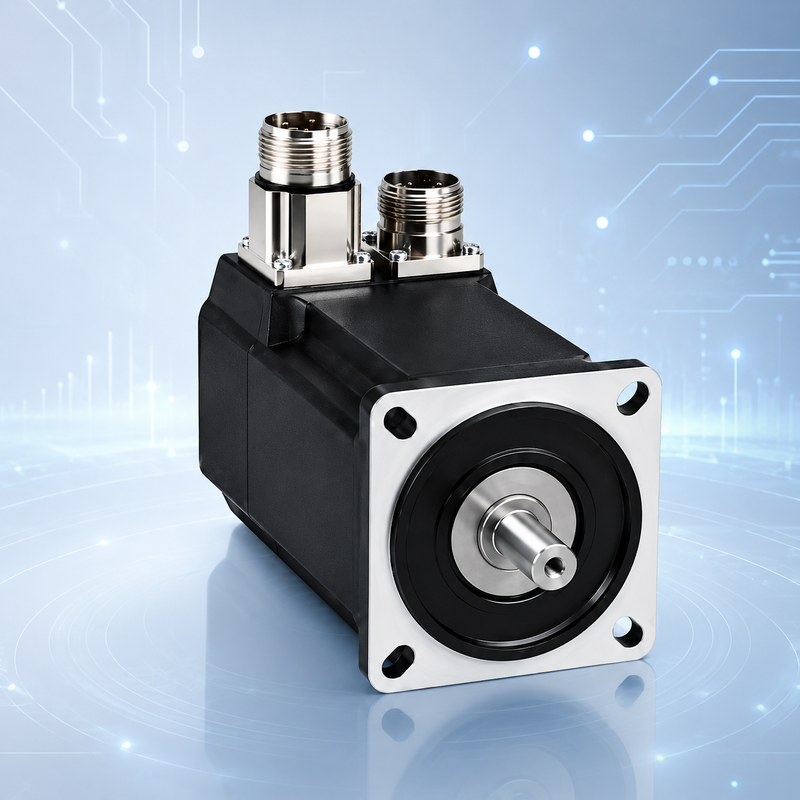

Schneider ELAU SH31403P01A2000 PacDrive SH140/30270 4.10kW 3000RPM Servo Motor SKS36

Product Overview

The Schneider ELAU SH31403P01A2000 is the standard reference for the PacDrive SH140/30270 servo-motor platform. It corresponds to the legacy technical model SH140/30270/0/0/00/00/00/00/00 and ELAU article number 65014302V001004.

This 3-stack motor provides approximately 4.10 kW continuous power, 12.9 Nm nominal torque, 27.8 Nm continuous stall torque and up to approximately 90.2 Nm peak torque. Its nominal speed is 3000 RPM.

The standard configuration uses a smooth steel shaft, SKS36 single-turn feedback, no holding brake and an IP54 shaft with an IP65 motor housing. It provides an important base page for higher-torque SH140 replacement requirements.

Main Features

• Exact commercial reference: SH31403P01A2000
• Legacy model: SH140/30270/0/0/00/00/00/00/00
• ELAU article number: 65014302V001004
• PacDrive SH140 3-stack servo motor
• Continuous power: approximately 4.10 kW
• Nominal speed: 3000 RPM
• Nominal torque: approximately 12.9 Nm
• Continuous stall torque: approximately 27.8 Nm
• Peak torque: approximately 90.2 Nm
• Smooth steel shaft
• SKS36 single-turn feedback system
• Without holding brake
• IP54 shaft and IP65 housing configuration

Technical Specifications

Compatible System and Applications

The SH31403P01A2000 is intended for higher-torque PacDrive applications such as large packaging machines, printing and converting systems, rotary processing axes, automated material-handling equipment, indexing mechanisms and gearbox-driven production machinery.

Final motor selection must consider continuous torque, peak torque, acceleration cycle, load inertia, regenerative loading and the current capability of the installed servo drive.

The smooth shaft requires a compatible keyless coupling. Confirm shaft and flange dimensions, alignment, coupling clamping range and permissible mechanical loads before installation.

Maintenance and Replacement Notes

Verify the complete SH31403P01A2000 commercial reference and ELAU article number. Other SH140/30270 motors may use a keyed shaft, multi-turn feedback, a holding brake or different environmental protection.

Do not substitute an SKM36 multi-turn motor without checking feedback compatibility, controller parameters and machine reference procedures. Brake-equipped models also require brake wiring and a compatible control sequence.

Inspect the bearings, shaft, coupling, motor connector, feedback connector and protective earth. Confirm the installed servo drive, firmware, controller project and complete cable set before commissioning.

Related Models

Related SH140/30270 configurations include keyed-shaft versions, SKM36 multi-turn versions, holding-brake versions and IP65 or IP67 protection options.

SH31403P12F2200 is a high-value keyed-shaft, multi-turn, brake and IP67 configuration. It should not be treated as a direct replacement for the standard SH31403P01A2000 without full system verification.

Inquiry and Supply Notes

Please provide clear photographs of the complete motor nameplate, shaft, flange and connectors. Also provide the installed servo-drive model, cable references and machine-duty information.

The exact commercial reference, feedback type, shaft configuration, hardware revision, product condition, testing status, availability and delivery time must be confirmed before quotation.
