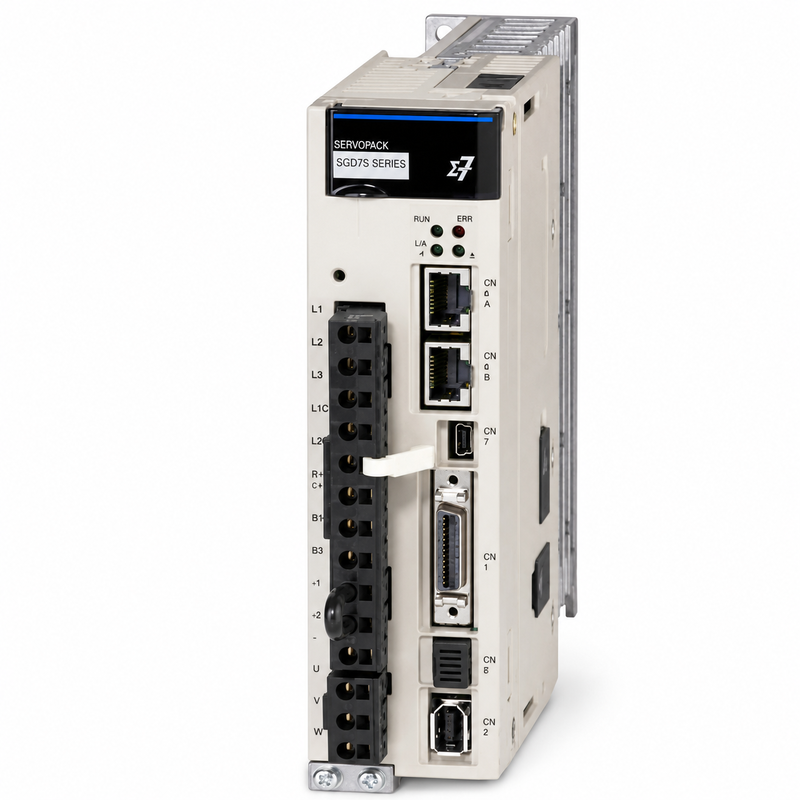

Yaskawa SGD7S-200A00A002 Sigma-7 SERVOPACK 200V 3kW Analog Pulse
| Place of Origin | USA |
| Brand Name | YASKAWA |
| Model Number | SGD7S-200A00A002 |
Product Overview
The Yaskawa SGD7S-200A00A002 is a 200 V class Sigma-7 SERVOPACK for high-power 3 kW servo applications. It accepts analog voltage and pulse-train commands, allowing integration with CNC systems, PLC positioning modules and motion controllers that do not use a dedicated servo network. The complete A002 suffix must be retained when identifying a replacement because it represents a specific ordering configuration.
Main Features
- 3 kW output capacity for demanding industrial motion axes.
- 20.0 A rated output current.
- Analog voltage and pulse-train command compatibility.
- 3.1 kHz speed frequency response for dynamic motion control.
- High-resolution 24-bit serial encoder feedback.
- Advanced autotuning and vibration-suppression capability.
Technical Specifications
| Manufacturer | Yaskawa Electric |
| Series | Sigma-7 |
| Complete Model | SGD7S-200A00A002 |
| Input Voltage Class | 200 V AC |
| Rated Motor Capacity | 3 kW |
| Rated Output Current | 20.0 A |
| Command Interface | Analog voltage / pulse train |
| Number of Controlled Axes | 1 |
| Encoder Compatibility | 24-bit serial encoder |
| Speed Frequency Response | 3.1 kHz |
Compatible System and Applications
The drive is suitable for machine-tool feed axes, printing machinery, winding equipment, forming machines, material-handling systems and other applications requiring higher torque and fast acceleration. The connected servo motor, power supply, regenerative system and machine load must be correctly sized for the 3 kW capacity.
Maintenance and Replacement Notes
Confirm the complete SGD7S-200A00A002 code rather than matching only the SGD7S-200A00A base number. Verify the motor model, input phase, rated current, dynamic-brake arrangement, regenerative resistor, pulse format, analog scaling, encoder cable and control connectors. Transfer parameters only after confirming compatibility with the replacement hardware and firmware.
Related Models
Related ratings include SGD7S-180A00A and SGD7S-330A00A. SGD7S-200A20A is a MECHATROLINK-III configuration with a different control interface. Suffix variations must be checked against the original nameplate and machine documentation.
Inquiry and Supply Notes
For accurate selection, please provide photographs of the full nameplate, original motor model, command method, controller model, connector layout and required quantity. Replacement suitability should be confirmed before installation.
