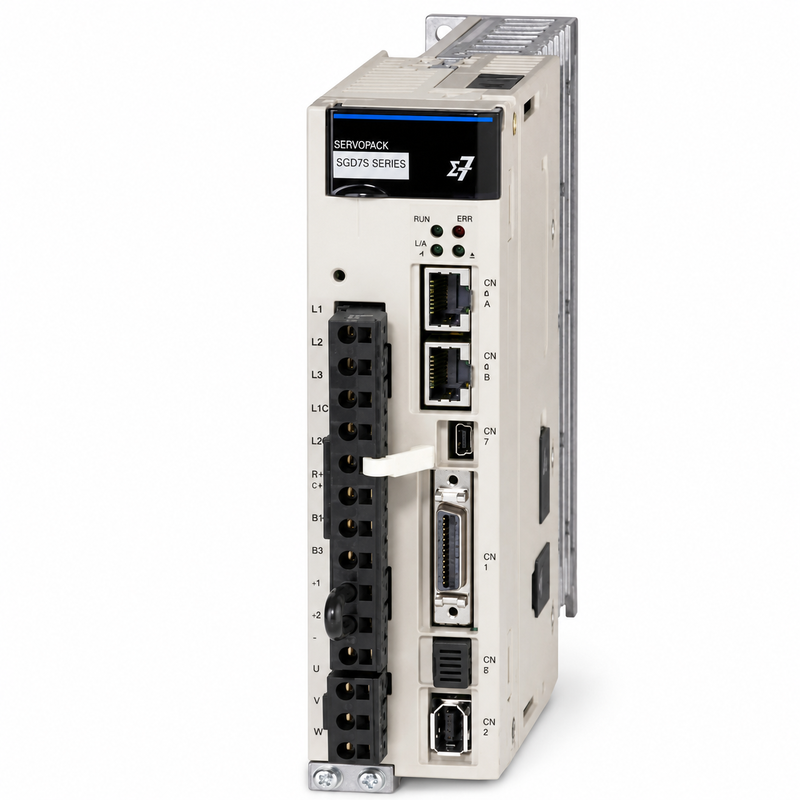

Yaskawa SGD7S-5R5A00A002 Sigma-7 SERVOPACK 200V 750W Analog Pulse
| Place of Origin | USA |
| Brand Name | YASKAWA |
| Model Number | SGD7S-5R5A00A002 |
Product Overview
The Yaskawa SGD7S-5R5A00A002 is a Sigma-7 single-axis SERVOPACK designed for 200 V class, 750 W servo systems. It accepts analog voltage and pulse-train commands, allowing integration with PLC positioning modules, CNC controllers and dedicated motion controllers. The complete A002 ordering suffix is important for replacement projects and should be matched against the original nameplate rather than selecting only by the SGD7S-5R5A00A base code.
Main Features
- 750 W servo motor capacity with 5.5 A rated output current.
- Analog voltage and pulse-train command compatibility.
- High 3.1 kHz speed frequency response for reduced settling time.
- Supports high-resolution 24-bit serial encoder feedback.
- Tuning-less operation and advanced autotuning simplify commissioning.
- Vibration suppression and machine-resonance filtering improve axis stability.
Technical Specifications
| Manufacturer | Yaskawa Electric |
| Series | Sigma-7 |
| Complete Model | SGD7S-5R5A00A002 |
| Input Voltage Class | 200 V AC |
| Rated Motor Capacity | 750 W |
| Rated Output Current | 5.5 A |
| Control Interface | Analog voltage / pulse train |
| Controlled Axes | Single axis |
| Encoder Feedback | 24-bit serial encoder |
| Speed Frequency Response | 3.1 kHz |
Compatible System and Applications
This model is suitable for packaging machinery, filling equipment, electronic assembly machines, labeling systems, indexing tables and precision conveying axes. Correct operation requires a compatible Yaskawa 750 W servo motor, suitable motor and encoder cables, and a controller capable of supplying the configured analog or pulse-train command.
Maintenance and Replacement Notes
Confirm the complete SGD7S-5R5A00A002 nameplate code, connected motor model, encoder type, pulse format, analog scaling, electronic gearing and controller project before replacement. Back up the existing parameters whenever possible. Inspect the motor cable, encoder cable, brake circuit, STO wiring, grounding and regenerative components before commissioning.
Related Models
Related models include SGD7S-5R5A00A, SGD7S-5R5A00B202, SGD7S-5R5A20A for MECHATROLINK-III control and SGD7S-5R5AA0A for EtherCAT. Interface and hardware-code differences mean these models are not automatically interchangeable.
Inquiry and Supply Notes
Please provide the complete SERVOPACK nameplate, servo motor model, controller model, required quantity and machine application. Nameplate and connector photographs are recommended for compatibility checking.
