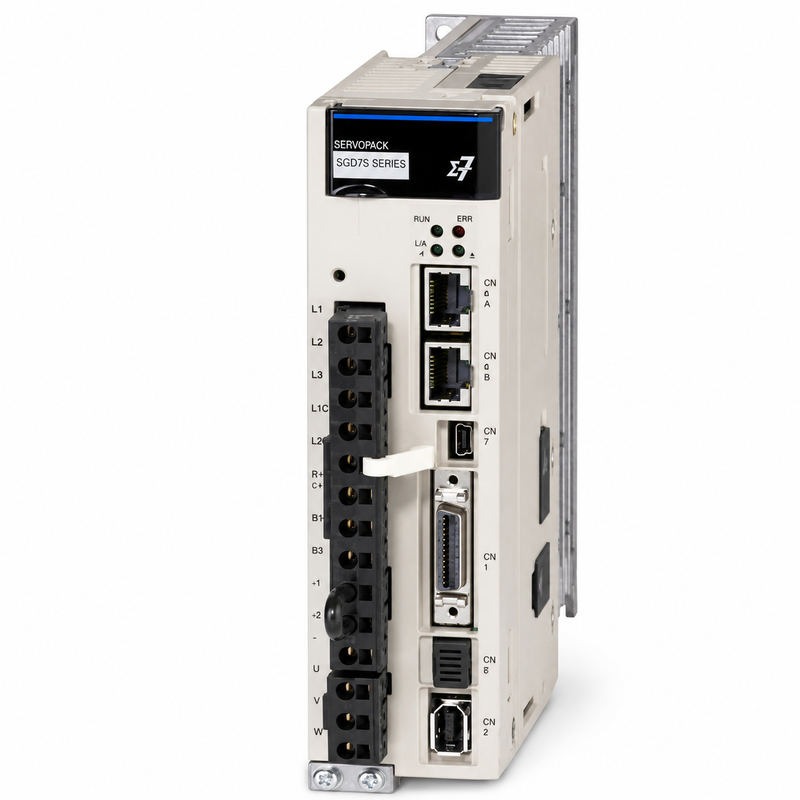

Yaskawa SGD7S-2R8A00A002 Sigma-7 SERVOPACK 200V 400W Analog Pulse
| Place of Origin | USA |
| Brand Name | YASKAWA |
| Model Number | SGD7S-2R8A00A002 |
Product Overview
The Yaskawa SGD7S-2R8A00A002 is a compact Sigma-7 SERVOPACK rated for 400 W servo motors in 200 V class systems. Its analog voltage and pulse-train interface supports conventional PLC, CNC and motion-controller architectures while providing the fast response and precision feedback capability of the Sigma-7 platform. The complete A002 suffix should be retained during quotation and replacement selection.
Main Features
- 400 W motor capacity with 2.8 A rated output current.
- Analog voltage and pulse-train command interface.
- 3.1 kHz speed frequency response for fast positioning cycles.
- High-resolution 24-bit serial encoder compatibility.
- Automatic tuning functions support rapid machine commissioning.
- Built-in vibration suppression improves positioning stability.
Technical Specifications
| Manufacturer | Yaskawa Electric |
| Product Family | Sigma-7 SGD7S |
| Complete Model | SGD7S-2R8A00A002 |
| Input Voltage Class | 200 V AC |
| Rated Motor Capacity | 400 W |
| Rated Output Current | 2.8 A |
| Command Interface | Analog voltage / pulse train |
| Number of Axes | 1 |
| Encoder Feedback | 24-bit serial encoder |
| Speed Frequency Response | 3.1 kHz |
Compatible System and Applications
The drive is suitable for compact pick-and-place mechanisms, electronic assembly machines, inspection stages, small packaging axes, labeling machines and precision feeders. It should be paired with a compatible Yaskawa 400 W servo motor and the correct motor, encoder and brake cables.
Maintenance and Replacement Notes
Before replacement, compare the complete SGD7S-2R8A00A002 code with the original nameplate. Verify the motor model, encoder type, brake requirement, pulse input format, control voltage, electronic gearing and firmware. Existing parameters should be backed up and reviewed before transfer to the replacement unit.
Related Models
Related configurations include SGD7S-2R8A00A, SGD7S-2R8A10A002, SGD7S-2R8A20A with MECHATROLINK-III and SGD7S-2R8AA0A with EtherCAT. A network-interface model cannot directly replace an analog/pulse model without controller and wiring changes.
Inquiry and Supply Notes
Please submit the complete drive and motor model codes, controller information, cable requirements and required quantity. Photos of the existing nameplate and terminal arrangement help reduce selection errors.
