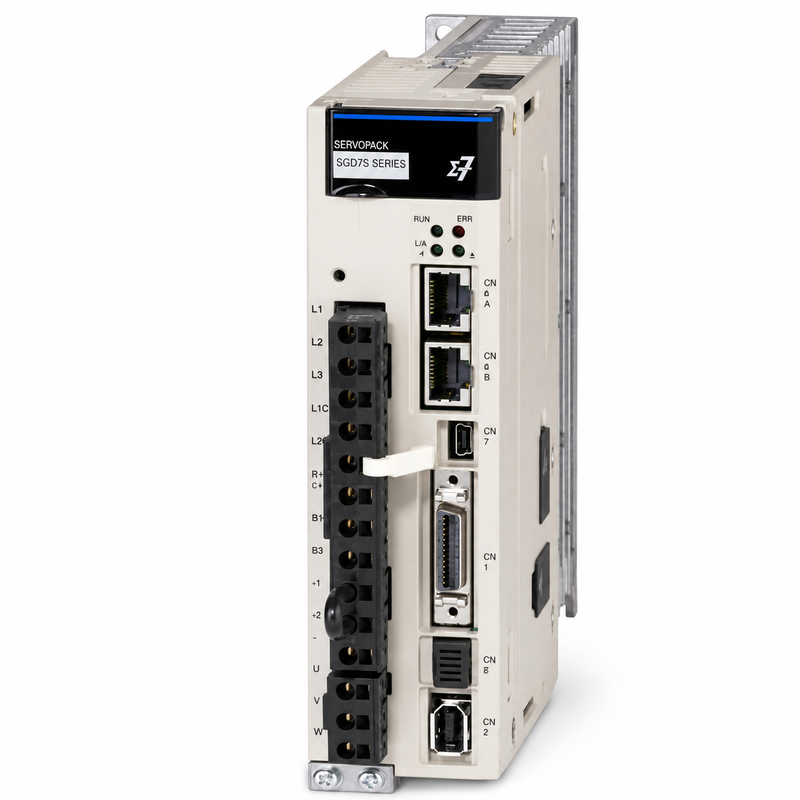

Yaskawa SGD7S-120A00B202 Sigma-7 SERVOPACK 200V 1.5kW Analog Pulse
| Place of Origin | USA |
| Brand Name | YASKAWA |
| Model Number | SGD7S-120A00B202 |
Product Overview
The Yaskawa SGD7S-120A00B202 is a Sigma-7 single-axis SERVOPACK rated for 1.5 kW servo motors in 200 V class systems. It uses analog voltage and pulse-train commands and is suitable for industrial machines that require high positioning accuracy without changing to a network-based motion architecture. The B202 suffix forms part of the complete hardware ordering code and must be confirmed during replacement.
Main Features
- 1.5 kW motor capacity with 12.0 A rated output current.
- Analog voltage and pulse-train reference interface.
- 3.1 kHz speed frequency response for fast axis control.
- Supports high-resolution 24-bit serial encoder feedback.
- Autotuning helps compensate for mechanical inertia and load variation.
- Integrated STO supports safety-related machine control design.
Technical Specifications
| Manufacturer | Yaskawa Electric |
| Series | Sigma-7 |
| Complete Model | SGD7S-120A00B202 |
| Configuration Code | B202 |
| Input Voltage Class | 200 V AC |
| Rated Motor Capacity | 1.5 kW |
| Rated Output Current | 12.0 A |
| Control Interface | Analog voltage / pulse train |
| Encoder Feedback | 24-bit serial encoder |
| Speed Frequency Response | 3.1 kHz |
Compatible System and Applications
The drive is suitable for packaging machines, printing equipment, automated cutting systems, positioning tables, winding machinery and material-handling axes. A compatible Yaskawa 1.5 kW servo motor, correct encoder cable and properly rated power and regenerative components are required.
Maintenance and Replacement Notes
Confirm the complete SGD7S-120A00B202 model, not only the SGD7S-120A00A base rating. Check the design and configuration suffix, motor code, encoder type, brake option, analog scaling, pulse format, electronic gearing and controller parameters. Review regenerative loading and protective-device ratings before operating the replacement drive.
Related Models
Related models include SGD7S-120A00A, SGD7S-120A00A002, SGD7S-120A10A002 and SGD7S-120A20A. These variants may use different design revisions, hardware configurations or command interfaces and should not be substituted without verification.
Inquiry and Supply Notes
Please provide clear drive and motor nameplate photographs, controller information, power-supply details, cable requirements and required quantity. The complete suffix is necessary for reliable compatibility checking.
