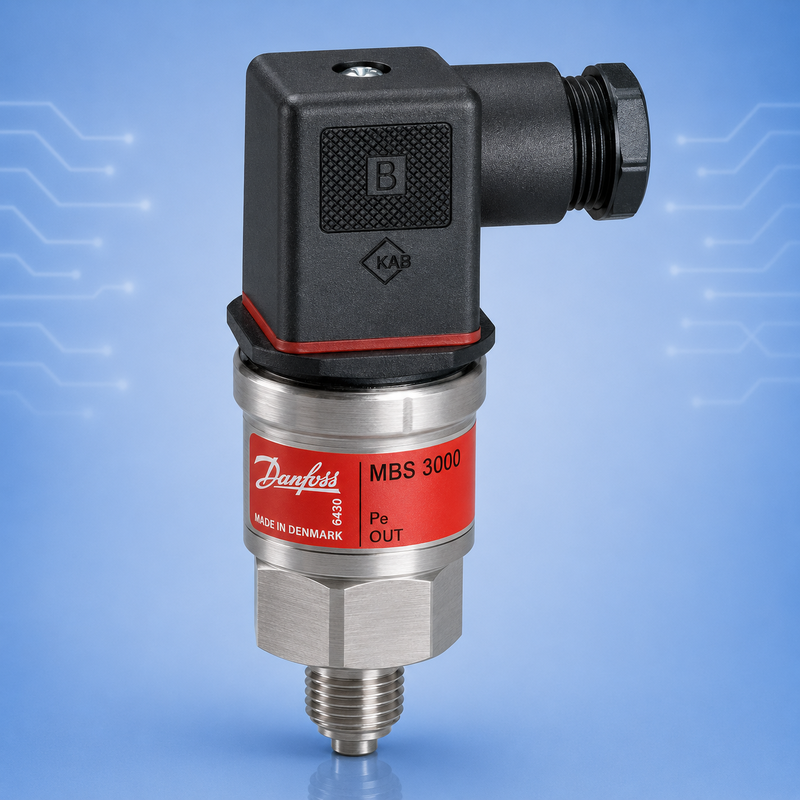

Danfoss 060G1412 MBS 3000-2031-A1AB08-0 Pressure Transmitter 0-10 Bar
| Place of Origin | Denmark |
| Brand Name | Danfoss |
| Model Number | MBS 3000-2031-A1AB08-0 |
Product Overview
The Danfoss 060G1412 is an MBS 3000 industrial pressure transmitter with a 0–10 bar measuring range and a standard 4–20 mA output signal. It is designed for pressure monitoring in industrial, hydraulic, pump and compressor systems.
Its complete specification key is MBS 3000-2031-A1AB08-0. This version uses a sealed-gauge pressure reference, G 1/2 A process connection and IP65 enclosure.
Main Features
- 0–10 bar sealed-gauge pressure range
- 4–20 mA two-wire current output
- 9–32 VDC operating supply
- G 1/2 A male pressure connection
- Angular connector with Pg 9 cable entry
- IP65 environmental protection
- Typical accuracy of ±0.5% full scale
- Designed for severe industrial operating conditions
Technical Specifications
| Brand | Danfoss |
| Material Number | 060G1412 |
| Model | MBS 3000-2031-A1AB08-0 |
| Product Series | MBS 3000 |
| Pressure Range | 0–10 bar / 0–145 psi |
| Pressure Reference | Sealed gauge |
| Output Signal | 4–20 mA |
| Supply Voltage | 9–32 VDC |
| Pressure Connection | G 1/2 A male, EN 837 |
| Electrical Connection | Angular connector, Pg 9, EN 175301-803-A |
| Enclosure Rating | IP65 |
| Pulse Snubber | Not included |
| Typical Accuracy | ±0.5% FS |
| Maximum Accuracy Deviation | ±1.0% FS |
| Maximum Overload Pressure | 60 bar |
| Medium Temperature | -40°C to +85°C |
Compatible Systems and Applications
Suitable for pump systems, air compressors, industrial hydraulic equipment, water-treatment installations, pneumatic systems and general pressure monitoring where a G 1/2 connection is required.
Maintenance and Replacement Notes
Do not select a replacement by the 0–10 bar range alone. Confirm the sealed-gauge reference, 4–20 mA output, G 1/2 connection, connector standard, supply voltage and wiring before installation.
Related Models
Danfoss 060G1125 also covers 0–10 bar but uses a G 1/4 connection. Danfoss 060G1413 uses the same G 1/2 connection with a 0–16 bar range.
Inquiry and Supply Notes
Please specify material number 060G1412 and complete model MBS 3000-2031-A1AB08-0. Confirm current availability and required quantity before placing an order.
