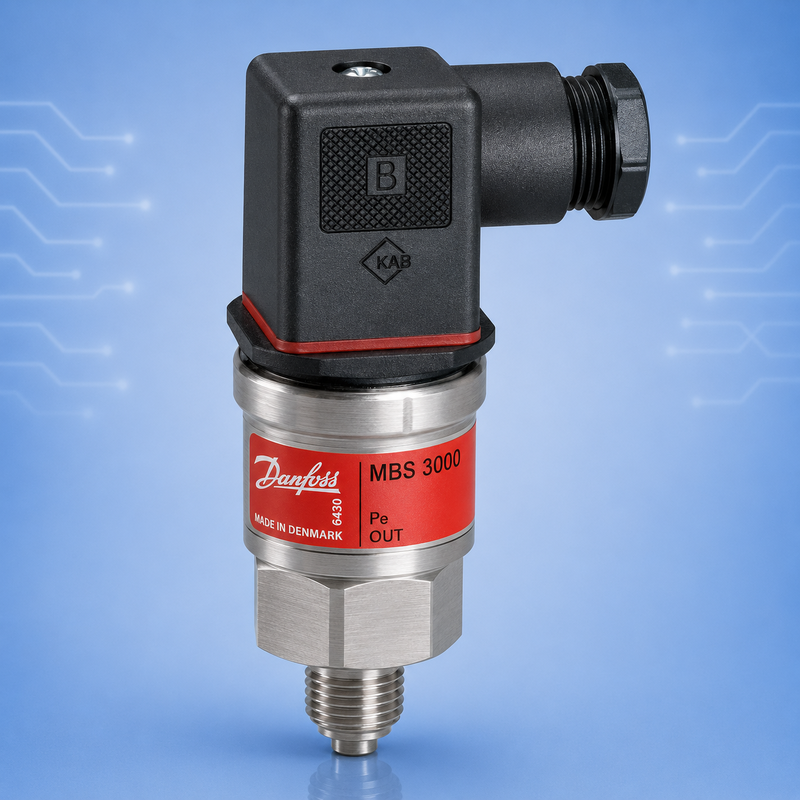

Danfoss 060G1430 MBS 3000-2411-A1AB04-0 Pressure Transmitter 0-25 Bar
| Place of Origin | Denmark |
| Brand Name | Danfoss |
| Model Number | MBS 3000-2411-A1AB04-0 |
Product Overview
The Danfoss 060G1430 is an MBS 3000 pressure transmitter designed for industrial pressure measurement from 0 to 25 bar. Its compact construction and 4–20 mA output make it suitable for pumps, compressors, hydraulic equipment and process machinery.
Complete specification key: MBS 3000-2411-A1AB04-0. This version uses a gauge-pressure reference, G 1/4 A process connection and IP65 enclosure.
Main Features
- 0–25 bar gauge-pressure measuring range
- 4–20 mA analog output
- 9–32 VDC supply voltage
- G 1/4 A male pressure connection
- Angular connector with Pg 9 cable entry
- IP65 enclosure protection
- Typical accuracy of ±0.5% full scale
- Maximum overload pressure of 150 bar
Technical Specifications
| Brand | Danfoss |
| Material Number | 060G1430 |
| Model | MBS 3000-2411-A1AB04-0 |
| Product Series | MBS 3000 |
| Pressure Range | 0–25 bar / 0–362.5 psi |
| Pressure Reference | Gauge pressure |
| Output Signal | 4–20 mA |
| Supply Voltage | 9–32 VDC |
| Pressure Connection | G 1/4 A male, EN 837 |
| Electrical Connection | Angular connector, Pg 9, EN 175301-803-A |
| Enclosure Rating | IP65 |
| Pulse Snubber | Not included |
| Typical Accuracy | ±0.5% FS |
| Maximum Accuracy Deviation | ±1.0% FS |
| Maximum Overload Pressure | 150 bar |
| Medium Temperature | -40°C to +85°C |
Compatible Systems and Applications
Suitable for pump skids, compressors, hydraulic power units, cooling systems, water-treatment equipment and general industrial pressure-monitoring installations.
Maintenance and Replacement Notes
Verify the exact pressure range, gauge reference, output signal, G 1/4 connection, connector type and supply voltage before installation. Do not substitute a different MBS 3000 material number based only on appearance.
Related Models
Related products include 060G1125 for 0–10 bar, 060G1413 for 0–16 bar and 060G1111 for 0–250 bar.
Inquiry and Supply Notes
Please specify material number 060G1430 and complete model MBS 3000-2411-A1AB04-0. Current availability and production revision should be confirmed before quotation.
