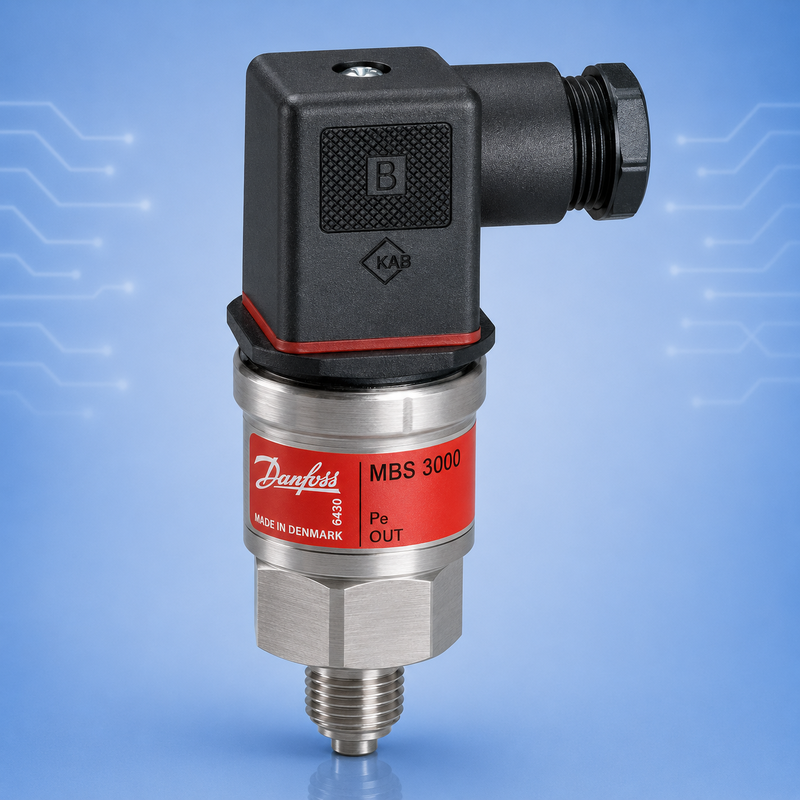

Danfoss 060G1413 MBS 3000-2231-A1AB08-0 Pressure Transmitter 0-16 Bar
| Place of Origin | Denmark |
| Brand Name | Danfoss |
| Model Number | MBS 3000-2231-A1AB08-0 |
Product Overview
The Danfoss 060G1413 is an MBS 3000 compact pressure transmitter with a measuring range of 0–16 bar. It provides a 4–20 mA current output for integration with PLC, process-control and monitoring systems.
Complete model: MBS 3000-2231-A1AB08-0. This configuration uses a sealed-gauge pressure reference, G 1/2 A process connection and an angular Pg 9 electrical connector.
Main Features
- 0–16 bar sealed-gauge measuring range
- 4–20 mA analog current output
- 9–32 VDC supply voltage
- G 1/2 A male pressure connection
- EN 175301-803-A angular connector
- IP65 enclosure protection
- Typical accuracy of ±0.5% full scale
- Maximum overload pressure of 96 bar
Technical Specifications
| Brand | Danfoss |
| Material Number | 060G1413 |
| Model | MBS 3000-2231-A1AB08-0 |
| Product Series | MBS 3000 |
| Pressure Range | 0–16 bar / 0–232 psi |
| Pressure Reference | Sealed gauge |
| Output Signal | 4–20 mA |
| Supply Voltage | 9–32 VDC |
| Pressure Connection | G 1/2 A male, EN 837 |
| Electrical Connection | Angular connector, Pg 9, EN 175301-803-A |
| Enclosure Rating | IP65 |
| Pulse Snubber | Not included |
| Typical Accuracy | ±0.5% FS |
| Maximum Accuracy Deviation | ±1.0% FS |
| Maximum Overload Pressure | 96 bar |
| Medium Temperature | -40°C to +85°C |
Compatible Systems and Applications
Typical applications include industrial pumps, compressors, hydraulic systems, water-treatment equipment, cooling systems and process machinery requiring 0–16 bar pressure measurement.
Maintenance and Replacement Notes
Confirm the 0–16 bar range, sealed-gauge reference, G 1/2 connection, output signal and electrical connector before replacement. Similar-looking MBS 3000 products may use different pressure ranges or connection sizes.
Related Models
Related models include 060G1412 for 0–10 bar with G 1/2 connection and 060G1430 for 0–25 bar with G 1/4 connection.
Inquiry and Supply Notes
Please provide material number 060G1413 and model MBS 3000-2231-A1AB08-0 when requesting price, availability or replacement verification.
