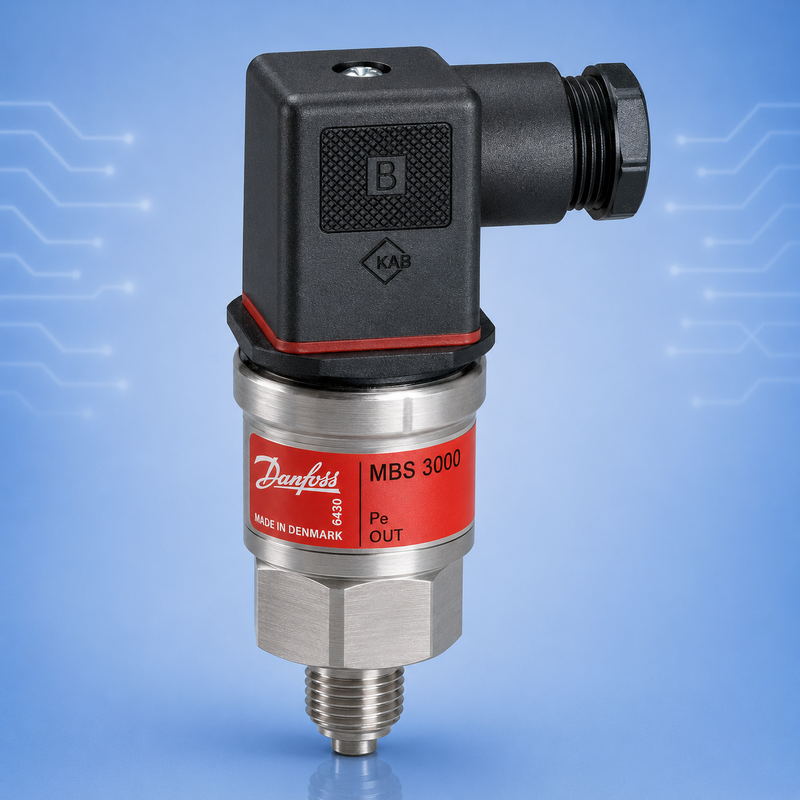

Danfoss 060G1111 MBS 3000-3431-A1AB04-0 Pressure Transmitter 0-250 Bar
| Place of Origin | Denmark |
| Brand Name | Danfoss |
| Model Number | MBS 3000-3431-A1AB04-0 |
Product Overview
The Danfoss 060G1111 is a high-pressure MBS 3000 transmitter with a measuring range of 0–250 bar. It provides a 4–20 mA output for reliable pressure monitoring in industrial and hydraulic systems.
Its complete specification key is MBS 3000-3431-A1AB04-0. This configuration includes a sealed-gauge pressure reference, G 1/4 A male process connection, angular Pg 9 connector and IP65 enclosure.
Main Features
- High-pressure range from 0 to 250 bar
- Sealed-gauge pressure reference
- Standard 4–20 mA output signal
- 9–32 VDC supply voltage
- G 1/4 A male pressure connection
- Angular electrical connector with Pg 9 cable entry
- IP65 enclosure protection
- Maximum overload pressure of 600 bar
- Suitable for demanding hydraulic applications
Technical Specifications
| Brand | Danfoss |
| Material Number | 060G1111 |
| Model | MBS 3000-3431-A1AB04-0 |
| Product Series | MBS 3000 |
| Pressure Range | 0–250 bar / 0–3625 psi |
| Pressure Reference | Sealed gauge |
| Output Signal | 4–20 mA |
| Supply Voltage | 9–32 VDC |
| Pressure Connection | G 1/4 A male, EN 837 |
| Electrical Connection | Angular connector, Pg 9, EN 175301-803-A |
| Enclosure Rating | IP65 |
| Pulse Snubber | Not included |
| Typical Accuracy | ±0.5% FS |
| Maximum Accuracy Deviation | ±1.0% FS |
| Maximum Overload Pressure | 600 bar |
| Medium Temperature | -40°C to +85°C |
Compatible Systems and Applications
Suitable for hydraulic power units, presses, mobile hydraulic systems, industrial pumps, high-pressure machinery, test equipment and process installations requiring pressure measurement up to 250 bar.
Maintenance and Replacement Notes
Confirm the complete material number and specification key before replacement. The pressure range, pressure reference, thread, electrical connection, output signal and wiring must match the installed system.
Related Models
Other MBS 3000 models include 060G1125 for 0–10 bar, 060G1413 for 0–16 bar and 060G1430 for 0–25 bar. These lower-range products are not direct replacements for 060G1111.
Inquiry and Supply Notes
Please provide material number 060G1111 and model MBS 3000-3431-A1AB04-0 with your inquiry. Confirm required quantity, application pressure and connection standard before quotation.
