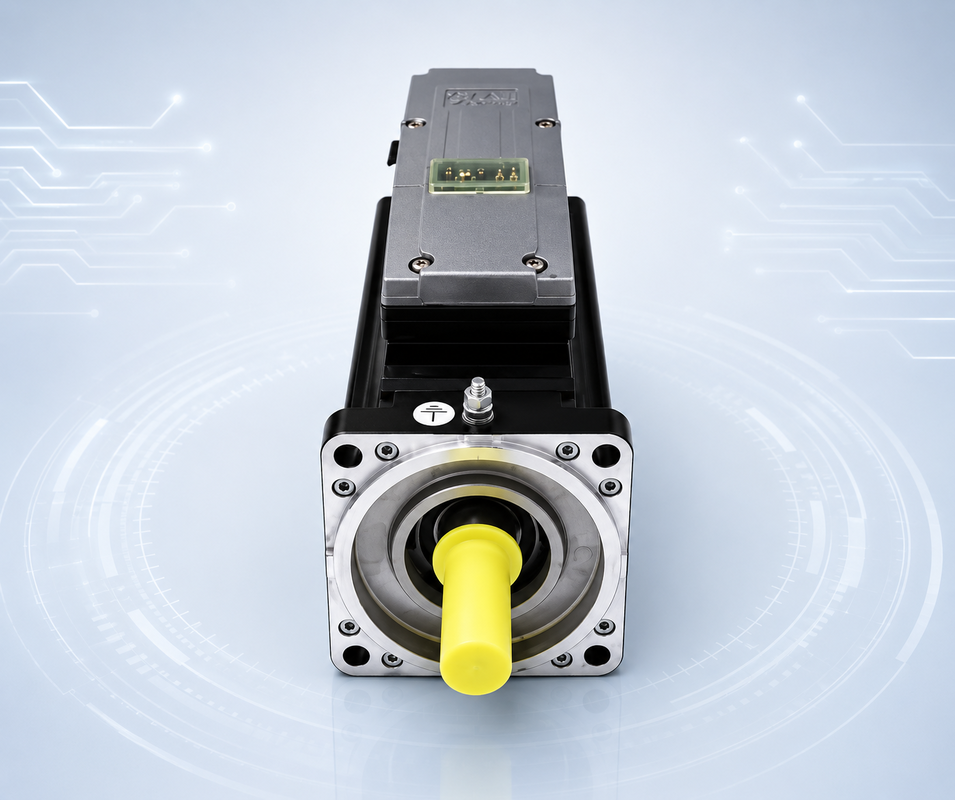

Schneider ELAU VIA1402B31F0000 PacDrive iSH140/20125 Intelligent Servo Module
| Place of Origin | Germany |
| Brand Name | ELUA |
| Model Number | VIA1402B31F0000 |
Product Overview
Schneider ELAU VIA1402B31F0000 is a high-value PacDrive M iSH140 intelligent servo module used in packaging machinery, synchronized production systems, heavy servo axes, and legacy PacDrive machine maintenance. Its core model is iSH140/20125, and the full technical model is iSH140/20125/0/1/00/0/10/01/00.
This variant is suitable for exact-model long-tail upload because it combines the high-torque iSH140/20125 core model with keyed shaft, shaft seal, IP65 shaft protection, SKS36 singleturn feedback, and 23 Nm holding brake. It is useful for replacement inquiries where the installed machine requires this exact configuration.
Main Features
- PacDrive M iSH140 intelligent servo module
- Commercial reference VIA1402B31F0000
- Core model iSH140/20125
- 1.91 kW rated power and 2000 rpm rated speed
- 12.5 Nm standstill torque and 55 Nm peak torque
- Keyed shaft with shaft sealing ring
- IP65 shaft and IP65 housing protection
- SKS36 singleturn SinCos feedback
- With 23 Nm holding brake
Technical Specifications
| Commercial Ref. | VIA1402B31F0000 |
| Core Model | iSH140/20125 |
| Full Technical Model | iSH140/20125/0/1/00/0/10/01/00 |
| Brand | Schneider ELAU |
| Series | PacDrive M iSH140 |
| Product Type | Intelligent Servo Module / Integrated Servo Drive Motor |
| Rated Power | 1.91 kW |
| Rated Speed | 2000 rpm |
| Rated Torque | 9.1 Nm |
| Standstill Torque | 12.5 Nm |
| Peak Torque | 55 Nm |
| Shaft Configuration | Keyed shaft, DIN 6885 |
| Encoder | SKS36 singleturn SinCos |
| Holding Brake | With 23 Nm holding brake |
| Protection | IP65 shaft / IP65 housing |
| Connection | Hybrid connector |
| Electrical System | 270–680 VDC bus; integrated servo electronics; 24 VDC control |
| Approx. Weight | 18.5 kg |
| Shaft Diameter | 24 mm |
| Shaft Extension | 50 mm |
| Overall Length | 347 mm |
Compatible System and Applications
VIA1402B31F0000 is used in Schneider ELAU PacDrive M distributed servo systems with compatible C200 or C600 controllers, machine I/O, HMI panels, hybrid cable systems, power supply units, and packaging machine control networks. It is suitable for higher-load packaging axes, filling systems, wrapping equipment, conveyors, indexing units, and production machinery.
Maintenance and Replacement Notes
When replacing VIA1402B31F0000, confirm whether the installed machine specifically requires IP65 shaft protection and SKS36 singleturn feedback. It should not be replaced by a multiturn version or non-sealed shaft version unless the controller project, axis configuration, brake function, cable set, and mechanical installation have been checked.
Related Models
Related iSH140/20125 models include VIA1402B31F0000, VIA1402B32A0000, VIA1402B22F0000, VIA1402B21F0000, VIA1402B12F0000, VIA1402B11F0000, VIA1402B02F0000, VIA1402B01F0000, VIA1402B12A0000, and VIA1402B11A0000. These variants may differ by shaft seal, encoder type, brake option, shaft design, and protection level.
Inquiry and Supply Notes
DF Automatic supplies Schneider ELAU VIA1402B31F0000 intelligent servo modules, PacDrive iSH140 modules, C200 and C600 controllers, power supplies, cables, HMI panels, and industrial automation spare parts for packaging machine maintenance and servo axis replacement.
