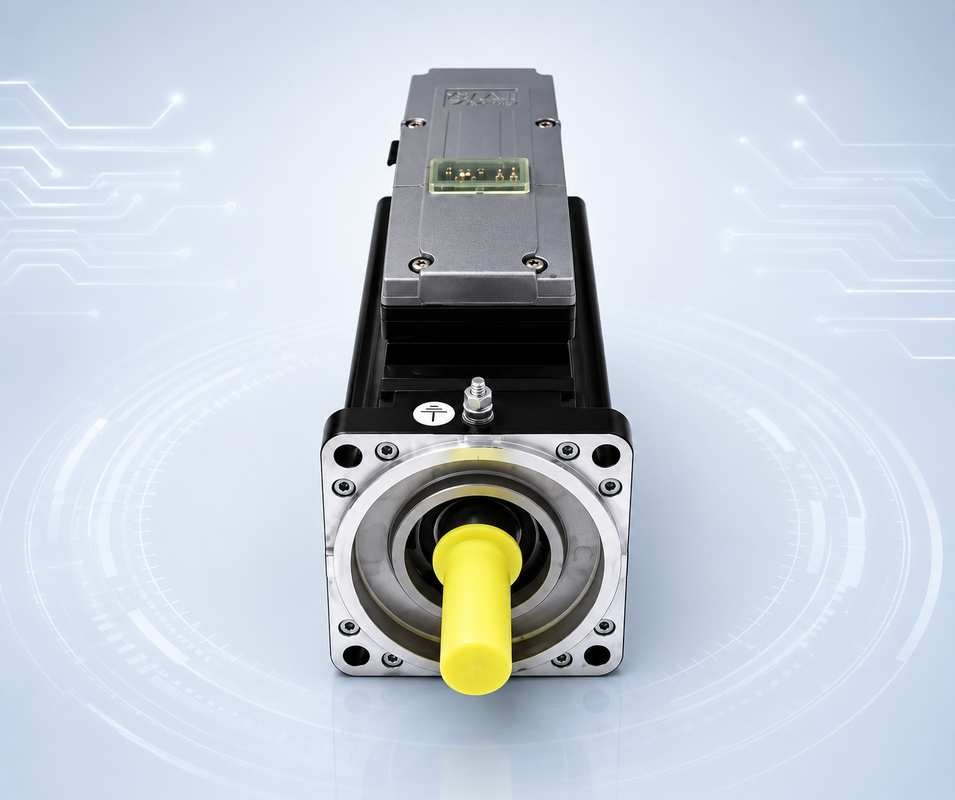

Schneider ELAU VIA1401A12F0000 PacDrive iSH140/15085 Intelligent Servo Module
| Place of Origin | Germany |
| Brand Name | ELUA |
| Model Number | VIA1401A12F0000 |
Product Overview
Schneider ELAU VIA1401A12F0000 is a PacDrive M iSH140 intelligent servo module used in packaging machinery, production automation, distributed servo motion systems, and legacy PacDrive machine maintenance. Its core model is iSH140/15085, and the full technical model is iSH140/15085/0/1/00/0/00/11/00.
This model is suitable for long-tail product upload because it targets the exact commercial reference while also covering the iSH140/15085 standard model. It uses a keyed shaft, SKM36 multiturn feedback, and holding brake, making it useful for machine axes requiring reliable positioning and holding capability.
Main Features
- PacDrive M iSH140 intelligent servo module
- Commercial reference VIA1401A12F0000
- Core model iSH140/15085
- 1.30 kW rated power and 1500 rpm rated speed
- 8.3 Nm rated torque, 8.5 Nm standstill torque, and 27 Nm peak torque
- Keyed shaft with DIN 6885 shaft design
- SKM36 multiturn SinCos feedback
- With 23 Nm holding brake
- Integrated servo electronics for PacDrive M systems
Technical Specifications
| Commercial Ref. | VIA1401A12F0000 |
| Core Model | iSH140/15085 |
| Full Technical Model | iSH140/15085/0/1/00/0/00/11/00 |
| Brand | Schneider ELAU |
| Series | PacDrive M iSH140 |
| Product Type | Intelligent Servo Module / Integrated Servo Drive Motor |
| Rated Power | 1.30 kW |
| Rated Speed | 1500 rpm |
| Rated Torque | 8.3 Nm |
| Standstill Torque | 8.5 Nm |
| Peak Torque | 27 Nm |
| Shaft Configuration | Keyed shaft, DIN 6885 |
| Encoder | SKM36 multiturn SinCos |
| Holding Brake | With 23 Nm holding brake |
| Protection | IP54 shaft / IP65 housing |
| Connection | Hybrid connector |
| Electrical System | 270–680 VDC bus; integrated servo electronics; 24 VDC control |
| Approx. Weight | 13.8 kg |
| Shaft Diameter | 24 mm |
| Shaft Extension | 50 mm |
| Overall Length | 292 mm |
Compatible System and Applications
VIA1401A12F0000 is used in Schneider ELAU PacDrive M systems with compatible motion controllers, distributed servo networks, HMI panels, machine I/O, power supply equipment, and industrial automation systems. Typical applications include packaging machines, conveyors, filling lines, wrapping machines, indexing stations, cartoning machines, and synchronized production equipment.
Maintenance and Replacement Notes
Before replacing VIA1401A12F0000, confirm the complete commercial reference, full iSH140/15085 technical model, keyed shaft, SKM36 multiturn feedback, holding brake, cable set, controller project, firmware, and axis parameters. Replacement by a similar iSH140 model should only be done after checking feedback and brake compatibility.
Related Models
Related iSH140/15085 models include VIA1401A12F0000, VIA1401A11F0000, VIA1401A12A0000, VIA1401A11A0000, VIA1401A02F0000, VIA1401A01F0000, VIA1401A02A0000, and VIA1401A01A0000. These models may differ by shaft type, encoder type, and holding brake.
Inquiry and Supply Notes
DF Automatic supplies Schneider ELAU VIA1401A12F0000 intelligent servo modules, PacDrive iSH140 modules, iSH100 modules, iSH070 modules, SM servo motors, motion controllers, cables, and industrial automation spare parts for machine maintenance and legacy PacDrive replacement.
