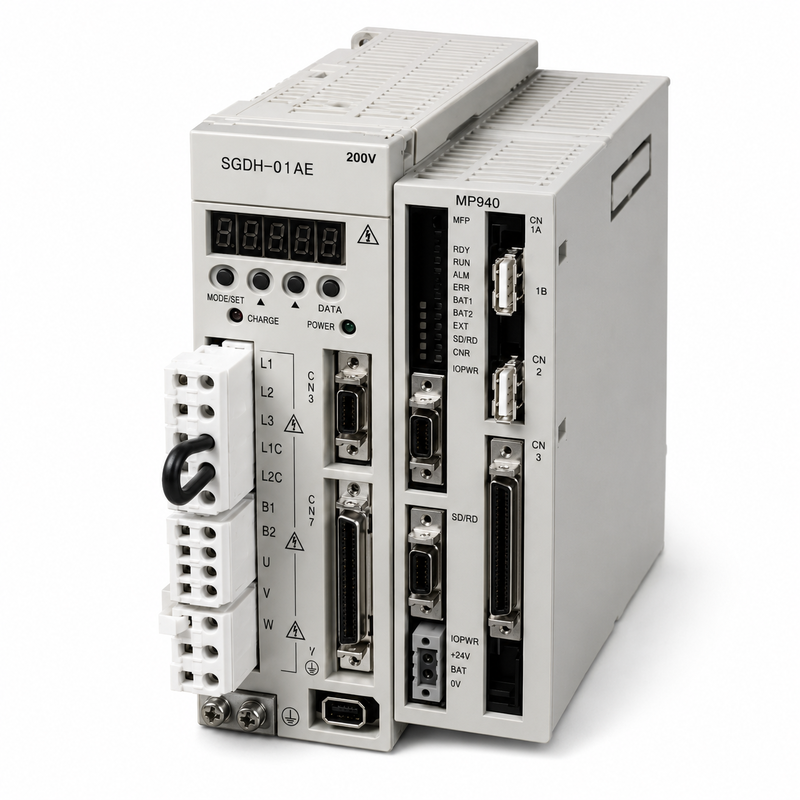

Yaskawa SGDH-10AE Sigma-II 1kW 200V Three-Phase AC Servo Drive
| Place of Origin | USA |
| Brand Name | YASKAWA |
| Model Number | SGDH-10AE |
Product Overview
The Yaskawa SGDH-10AE is a Sigma-II series three-phase AC SERVOPACK designed for compatible 200 V servo motors with a rated capacity of up to 1.0 kW. It provides single-axis position, speed, and torque control for precision industrial machinery.
Main Features
- 1.0 kW applicable servo motor capacity
- Three-phase 200–230 VAC power input
- 7.6 A continuous rated output current
- Position, speed, and torque operating modes
- Analog voltage command capability
- Pulse train positioning control
- Sigma-II serial encoder feedback
- Automatic tuning and vibration suppression
Technical Specifications
| Model | SGDH-10AE |
| Series | Yaskawa Sigma-II |
| Product Type | AC Servo Drive / SERVOPACK |
| Main Circuit Input | Three-phase 200–230 VAC, 50/60 Hz |
| Applicable Motor Capacity | 1.0 kW |
| Continuous Output Current | 7.6 A |
| Control Modes | Position, speed, and torque |
| Command Interface | Analog voltage and pulse train |
| Encoder Feedback | Sigma-II serial encoder |
| Controlled Axes | One |
| Speed Frequency Response | 400 Hz |
| Integrated STO | Not provided |
Compatible System and Applications
The SGDH-10AE is intended for selected Yaskawa Sigma-II 200 V servo motors. Typical motor families include compatible SGMAH, SGMPH, SGMGH, SGMSH, and SGMUH configurations. The exact motor model and suffix must be verified before connection.
Typical applications include CNC machinery, packaging lines, printing equipment, automated assembly machines, indexing tables, feeders, handling systems, and high-accuracy positioning axes.
Maintenance and Replacement Notes
Record the original parameters and confirm the complete drive nameplate before replacement. Check the incoming voltage and phase, controller project, command format, electronic gearing, motor model, encoder specification, brake option, regenerative circuit, and cable part numbers.
Inspect the terminals, grounding, cooling passages, motor insulation, encoder connection, brake circuit, limit switches, alarm outputs, and external machine safety circuit. Test rotation direction and axis travel at reduced speed after commissioning.
Related Models
Related models include SGDH-08AE, SGDH-15AE, SGDH-10DE, and SGDH-10DE-OY. These models differ in voltage class, output current, complete suffix, motor compatibility, and system configuration.
Inquiry and Supply Notes
Please provide the complete model number, nameplate photographs, hardware or firmware revision, controller model, controller project, command or communication network, motor model, encoder type, brake requirement, and cable part numbers. Product condition and supplied accessories should be confirmed before ordering.
