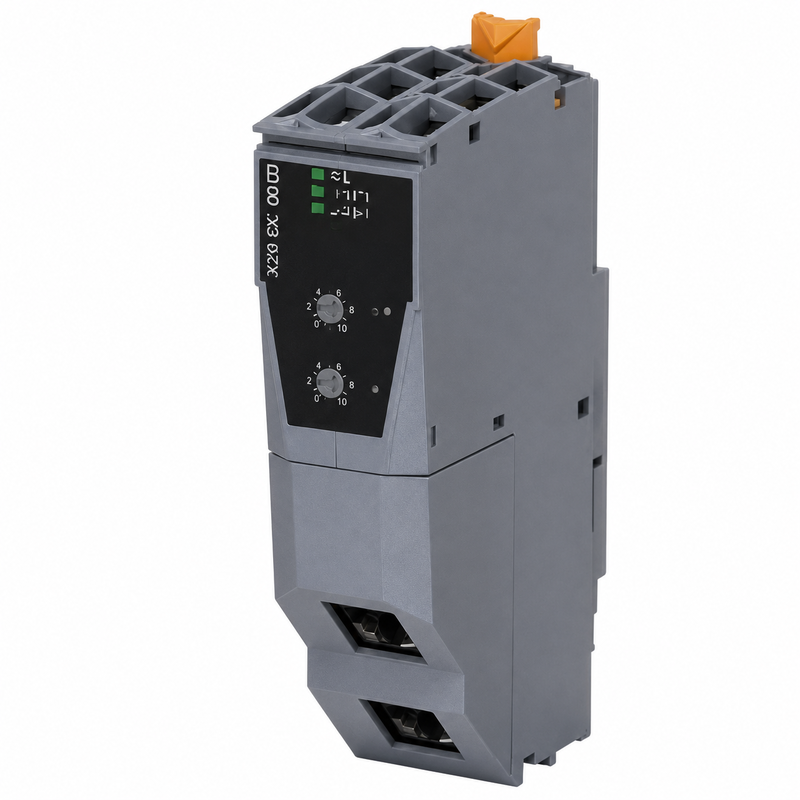

B&R X20BC1083 Expandable POWERLINK Bus Controller for X20 System
| Place of Origin | Germany |
| Brand Name | B&R |
| Model Number | X20BC1083 |
Product Overview
The B&R X20BC1083 is an expandable POWERLINK bus controller that connects X2X Link I/O nodes to a POWERLINK V1/V2 network. Its expanded base arrangement supports up to two additional X20 interface-module slots.
Main Features
- POWERLINK V1/V2 controlled-node functionality.
- Integrated two-port Fast Ethernet hub.
- Up to two modular interface slots.
- 100 Mbit/s network transfer rate.
- Minimum POWERLINK and X2X Link cycle time of 200 microseconds.
- Dynamic node allocation support.
Technical Specifications
| Model | X20BC1083 |
| Fieldbus | POWERLINK V1/V2 |
| Network Ports | 2 Shielded RJ45 Ports |
| Expansion | Up to 2 Interface-Module Slots |
| Transfer Rate | 100 Mbit/s |
| Protection | IP20 |
Compatible System and Applications
This controller is suitable for X20 stations requiring POWERLINK plus additional serial, fieldbus or network interfaces. The installation normally requires an X20BB81 or X20BB82 bus base, X20TB12 terminal block and X20PS9400 or X20PS9402 power module.
Maintenance and Replacement Notes
Verify the interface-module positions, bus base, power module, firmware and Automation Studio configuration. X20BC0083 does not provide the same expansion arrangement.
Related Models
Related models include X20BC0083, X20BC8083, X20BC0087 and X20BC0063.
Inquiry and Supply Notes
Provide photographs showing the controller, bus base and installed interface modules.
