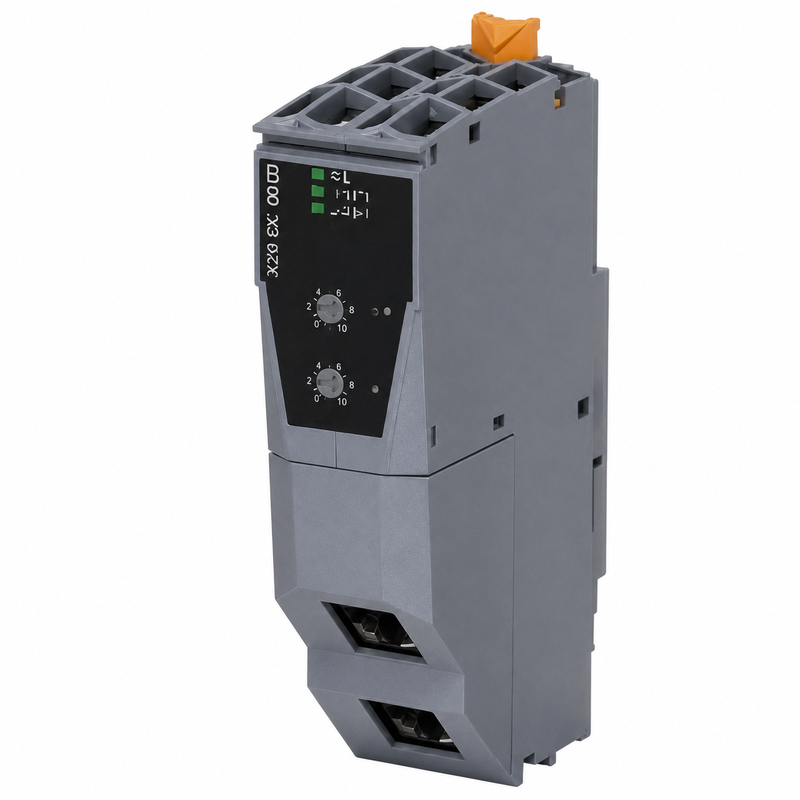

B&R X20BC0063 PROFIBUS DP Bus Controller for X20 I/O System
|
B&R X20BC0063 PROFIBUS DP Bus Controller for X20 I/O System
| Place of Origin | Germany |
| Brand Name | B&R |
| Model Number | X20BC0063 |
Product Details
Product Type:
PROFIBUS Bus Controller
Series:
X20 System
Complete Model:
X20BC0063
Control / Network Type:
PROFIBUS DP V0 Slave
Core Technical Configuration:
Automatic Transfer Rate Detection; Maximum 12 Mbit/s
Communication Interfaces:
9-Pin Female D-sub And X2X Link
Power Consumption:
2.3 W From Bus
Protection Class:
IP20
Operating Temperature:
-25 To 60 Degrees C Horizontal; -25 To 50 Degrees C Vertical
Payment & Shipping Terms
Minimum Order Quantity
1
Price
USD120-200/Unit
Packaging Details
original packing
Delivery Time
3-5 work days
Payment Terms
D/A, D/P, T/T, Western Union, ,
Supply Ability
10 Units per Month
Product Description
Product Overview
The B&R X20BC0063 connects X20 and X2X Link I/O stations to a PROFIBUS DP network. It operates as a PROFIBUS DP V0 slave and supports automatic transfer-rate detection.
Main Features
- PROFIBUS DP V0 slave functionality.
- 9-pin female D-sub fieldbus connector.
- Maximum transfer rate of 12 Mbit/s.
- Maximum network distance up to 1200 m depending on baud rate.
- Minimum X2X Link cycle time of 400 microseconds.
- LED-based module, bus and data-transfer diagnostics.
Technical Specifications
| Model | X20BC0063 |
| Fieldbus | PROFIBUS DP V0 Slave |
| Connector | 9-Pin Female D-sub |
| Maximum Transfer Rate | 12 Mbit/s |
| Power Consumption | 2.3 W |
| Protection | IP20 |
Compatible System and Applications
The X20BC0063 is suitable for machines and production equipment using a PROFIBUS DP master with distributed X20 I/O stations.
Maintenance and Replacement Notes
Confirm the PROFIBUS address, transfer rate, network termination, project configuration, bus base and power module. POWERLINK and Modbus variants are not direct replacements.
Related Models
X20BC0083 uses POWERLINK, while X20BC0087 uses Modbus TCP/UDP.
Inquiry and Supply Notes
Provide the complete nameplate, network address and existing station configuration.
