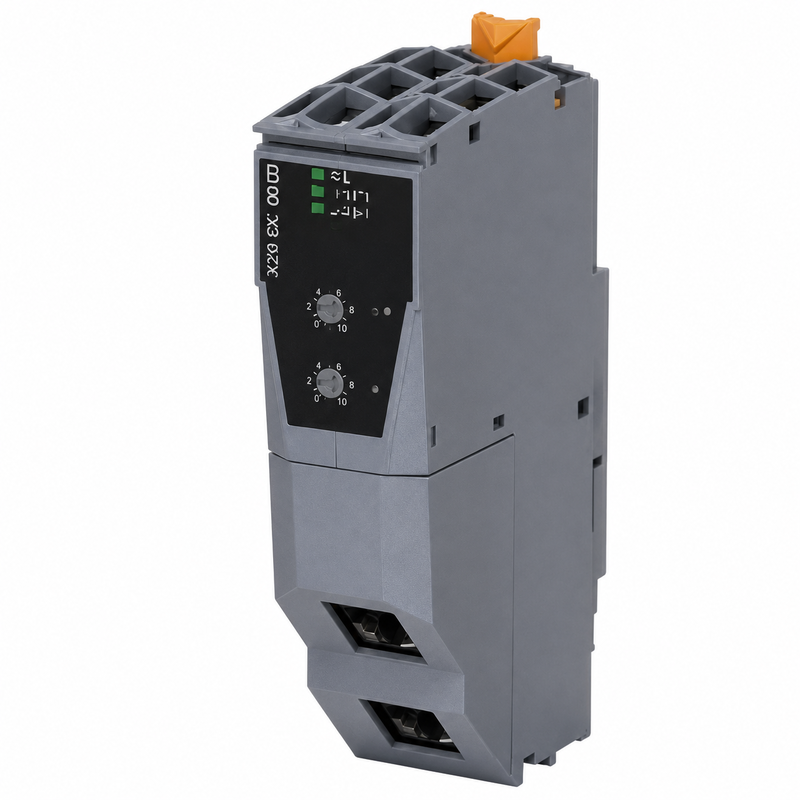

B&R X20CP0291 Compact X20 CPU with Onboard Ethernet
| Place of Origin | Germany |
| Brand Name | B&R |
| Model Number | X20CP0291 |
Product Overview
The B&R X20CP0291 is a compact X20 CPU module equipped with an embedded 16-bit processor, an integrated I/O processor and onboard Ethernet. Its narrow, battery-free design is intended for compact automation systems and established machine projects.
Main Features
- Embedded 16-bit processor.
- 100 kB user SRAM.
- 1 MB user FlashPROM.
- Onboard 100 Mbit/s Ethernet.
- Integrated background I/O processor.
- Battery-free operation.
- Compact 37.5 mm installation pitch.
Technical Specifications
| Model | X20CP0291 |
| Processor | Embedded 16-Bit Processor |
| User RAM | 100 kB SRAM |
| Program Memory | 1 MB FlashPROM |
| Network Interface | Onboard Ethernet |
| Shortest Task Cycle | 4 ms |
| Protection | IP20 |
Compatible System and Applications
The controller is used in compact OEM machines and established X20 installations. The system normally requires an X20BB22 or X20BB27 base and an X20PS9500 or X20PS9502 power module.
Maintenance and Replacement Notes
Back up the application and verify the CPU revision, Ethernet settings, software version, base, power module and connected I/O. Migration to a newer CPU may require project modification.
Related Models
Related compact controllers include X20CP0201 and other X20CP02xx variants.
Inquiry and Supply Notes
Provide the nameplate, software revision, Ethernet configuration and CPU-base information.
