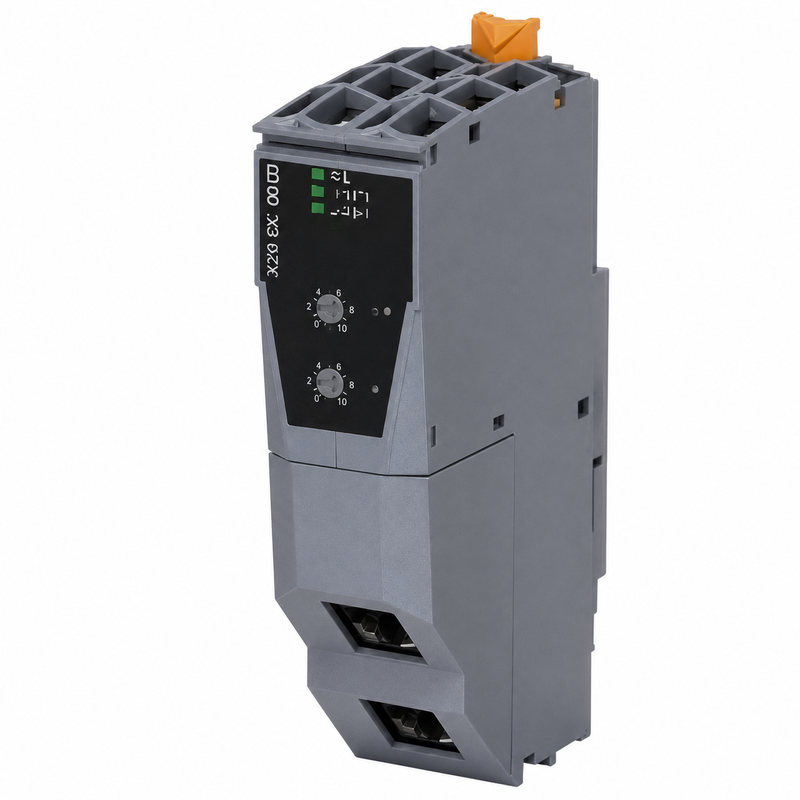

B&R X20BC0087 Modbus TCP UDP Bus Controller for X20 System
|
B&R X20BC0087 Modbus TCP UDP Bus Controller for X20 System
| Place of Origin | Germany |
| Brand Name | B&R |
| Model Number | X20BC0087 |
Product Details
Product Type:
Modbus TCP/UDP Bus Controller
Series:
X20 System
Complete Model:
X20BC0087
Control / Network Type:
Modbus TCP/UDP Slave
Core Technical Configuration:
Ntegrated 2-Port Ethernet Switch; 10/100 Mbit/s
Communication Interfaces:
2 Shielded RJ45 Ports And X2X Link
Power Consumption:
2 W From Bus
Protection Class:
IP20
Operating Temperature:
-25 To 60 Degrees C Horizontal; -25 To 50 Degrees C Vertical
Payment & Shipping Terms
Minimum Order Quantity
1
Price
USD120-200/Unit
Packaging Details
original packing
Delivery Time
3-5 work days
Payment Terms
D/A, D/P, T/T, Western Union, ,
Supply Ability
10 Units per Month
Product Description
Product Overview
The B&R X20BC0087 is a Modbus TCP/UDP slave bus controller for integrating X20 and X2X Link I/O stations with industrial Ethernet control systems.
Main Features
- Modbus TCP and Modbus UDP slave functionality.
- Two shielded RJ45 ports with integrated switch.
- 10/100 Mbit/s Ethernet communication.
- DHCP and BOOTP support.
- Minimum fieldbus cycle time of 1 ms.
- Minimum X2X Link cycle time of 500 microseconds.
Technical Specifications
| Model | X20BC0087 |
| Fieldbus Role | Modbus TCP/UDP Slave |
| Network Ports | 2 Shielded RJ45 Ports |
| Transfer Rate | 10/100 Mbit/s |
| Power Consumption | 2 W |
| Protection | IP20 |
Compatible System and Applications
Typical applications include modular machinery, process skids, conveying systems and production equipment where a PLC accesses distributed X20 I/O through Modbus TCP or UDP.
Maintenance and Replacement Notes
Confirm the IP address, subnet, register mapping, DHCP or BOOTP configuration, I/O cycle, bus base and power module. X20BC0087-10 is a separate product version.
Related Models
X20BC0083 uses POWERLINK, while X20BC0063 uses PROFIBUS DP.
Inquiry and Supply Notes
Provide the complete model, hardware revision, IP configuration and station details.
