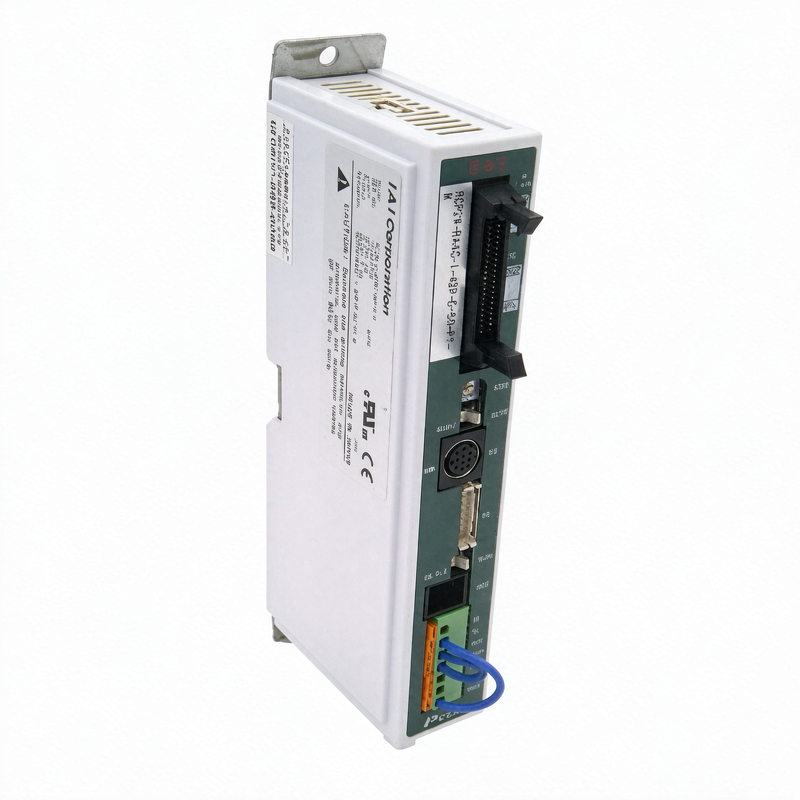

IAI PCON-PO-28PI-NP-2-0 Position Controller

Product Overview

IAI PCON-PO-28PI-NP-2-0 is a single-axis pulse-train controller for an IAI electric actuator with the 28P incremental configuration. The PO code identifies an open-collector command input, while NP specifies NPN sink I/O. The controller uses a 24 VDC supply and the model code includes a 2 m I/O cable specification.

This product is mainly required for repair and restoration of machines already designed around the PCON-PO platform. It should be selected by the complete controller and actuator nameplates, not by the PCON series name alone.

Main Features

• One-axis position control from an external pulse command
• Open-collector input with a maximum frequency of 60 kpps
• Electronic gear adjustment for pulse-to-travel conversion
• Incremental encoder feedback with 800 pulses per revolution
• Servo, homing, positioning-complete, alarm, torque-limit, and brake-related signals

Technical Specifications

Compatible System and Applications

The controller is used in pulse-command positioning systems such as transfer axes, assembly equipment, inspection stations, packaging machinery, and other legacy automation equipment. Compatibility depends on the exact IAI actuator, 28P motor class, incremental encoder, pulse-output circuit, and installed cable set.

Maintenance and Replacement Notes

PCON-PO was discontinued with an order cutoff of 23 June 2023. IAI identifies PCON-CB as the successor family, but the mounting dimensions, parameter files, I/O wiring, signal assignments, power and emergency-stop wiring, teaching tools, and controller-side motor and encoder connections are different. Do not describe PCON-CB as a direct plug-in replacement without checking the conversion requirements.

Inquiry and Supply Notes

For model verification, provide photographs of the controller and actuator nameplates, the host pulse-output type, cable part numbers, brake option, parameter backup status, machine application, and required quantity. Availability, condition, and included cables should be confirmed before quotation.
