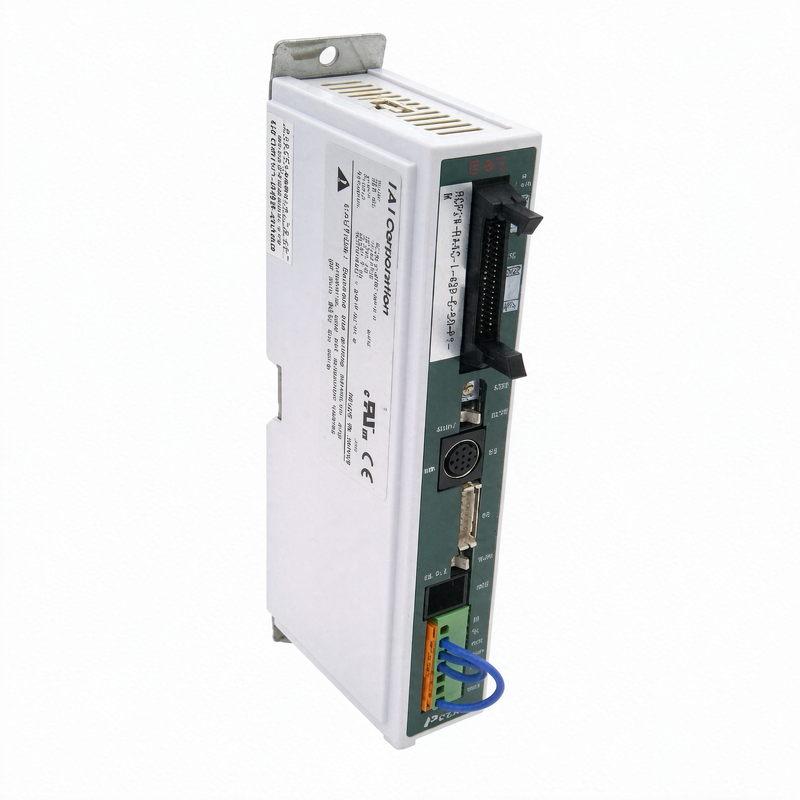

IAI PCON-CB-35PWAI-EP-0-0 EtherNet/IP Position Controller
| Place of Origin | Japan |
| Brand Name | IAI |
| Model Number | PCON-CB-35PWAI-EP-0-0 |
Product Overview
IAI PCON-CB-35PWAI-EP-0-0 is a single-axis EtherNet/IP position controller for compatible IAI RoboCylinder electric actuators. It integrates actuator motion control with an industrial Ethernet network, allowing a PLC or automation controller to exchange commands, position data, status information and diagnostic data with the PCON controller.
Main Features
- Single-axis control for compatible IAI electric actuators
- 24 VDC controller power supply
- 35P actuator motor configuration code
- WAI encoder and feedback configuration
- EP EtherNet/IP communication specification
- Supports network-based command and status data exchange
- Suitable for centralized PLC control and connected production equipment
Technical Specifications
| Brand | IAI |
| Model | PCON-CB-35PWAI-EP-0-0 |
| Series | PCON-CB |
| Product Type | EtherNet/IP Single-Axis Position Controller |
| Controlled Axes | 1 Axis |
| Power Supply | 24 VDC |
| Actuator Motor Code | 35P |
| Encoder / Feedback Code | WAI |
| Network Code | EP |
| Communication Network | EtherNet/IP |
| I/O Cable Specification | Code 0 |
| Power Supply Code | 0 |
Compatible System and Applications
The PCON-CB-35PWAI-EP-0-0 is suitable for networked assembly systems, packaging machinery, automated handling equipment, inspection lines and production cells using an EtherNet/IP PLC. Depending on the selected operating mode, the network can be used for position-number commands, direct numerical data, actuator status monitoring and alarm information.
Maintenance and Replacement Notes
The EP suffix identifies the EtherNet/IP version and must not be confused with CC-Link, DeviceNet, EtherCAT or parallel I/O variants. Before replacement, verify the exact actuator model, motor code, feedback configuration, controller firmware, IP address settings, EtherNet/IP operating mode, network configuration file and PLC data mapping. Save the original parameter file and record all network settings before removing the installed controller.
Related Models
Related IAI family variant: PCON-CB-35PWAI-CC-0-0. The related CC model uses a different industrial communication network and is not automatically interchangeable with the EP EtherNet/IP version. Confirm the complete model code, network protocol, firmware, PLC configuration, actuator compatibility and connector arrangement before selection.
Inquiry and Supply Notes
Please provide the complete controller label, connected actuator model, PLC brand, network protocol and existing firmware information when requesting a quotation. Availability, condition, network files, connectors and warranty should be confirmed before purchase.
