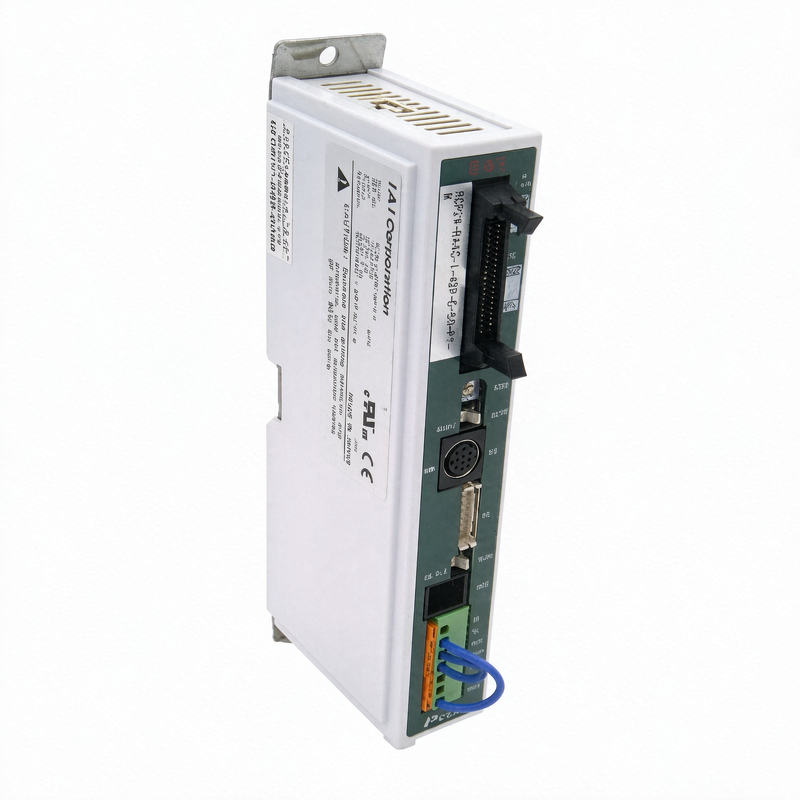

IAI PCON-CA-42PWAI-DV-0-0 DeviceNet Position Controller

Product Overview

IAI PCON-CA-42PWAI-DV-0-0 is a single-axis network position controller designed for a matching IAI RoboCylinder electric actuator. This configuration uses a DeviceNet communication interface, allowing an upper-level PLC or industrial control system to exchange motion commands, position data, operating status and alarm information with the controller.

Main Features

• Single-axis positioning control for a compatible IAI actuator
• 24 VDC controller power supply
• 42P actuator motor configuration
• WAI encoder and feedback configuration
• DV DeviceNet network specification
• Supports network-based command and status communication
• Suitable for legacy machine maintenance and network controller replacement

Technical Specifications

Compatible System and Applications

The PCON-CA-42PWAI-DV-0-0 can be applied in networked assembly systems, packaging machinery, component-handling equipment, inspection stations and automated production cells. A compatible DeviceNet master can exchange actuator commands and status information with the controller according to the configured network mode and PLC data assignment.

Maintenance and Replacement Notes

Record the DeviceNet node address, communication speed, PLC mapping and controller parameters before removing the installed unit. Confirm the complete model code, 42P actuator configuration, WAI feedback specification, connected actuator nameplate, firmware, DeviceNet EDS file, wiring, connector layout and parameter data. PCON-CA has been succeeded by a newer PCON-CB family, but the newer controller must not be treated as a direct replacement without a complete compatibility review.

Inquiry and Supply Notes

Please provide photographs of the controller label, actuator nameplate and DeviceNet wiring when requesting a quotation. Product condition, firmware, connectors, network configuration files, parameter backup, warranty and delivery time should be confirmed before ordering.
